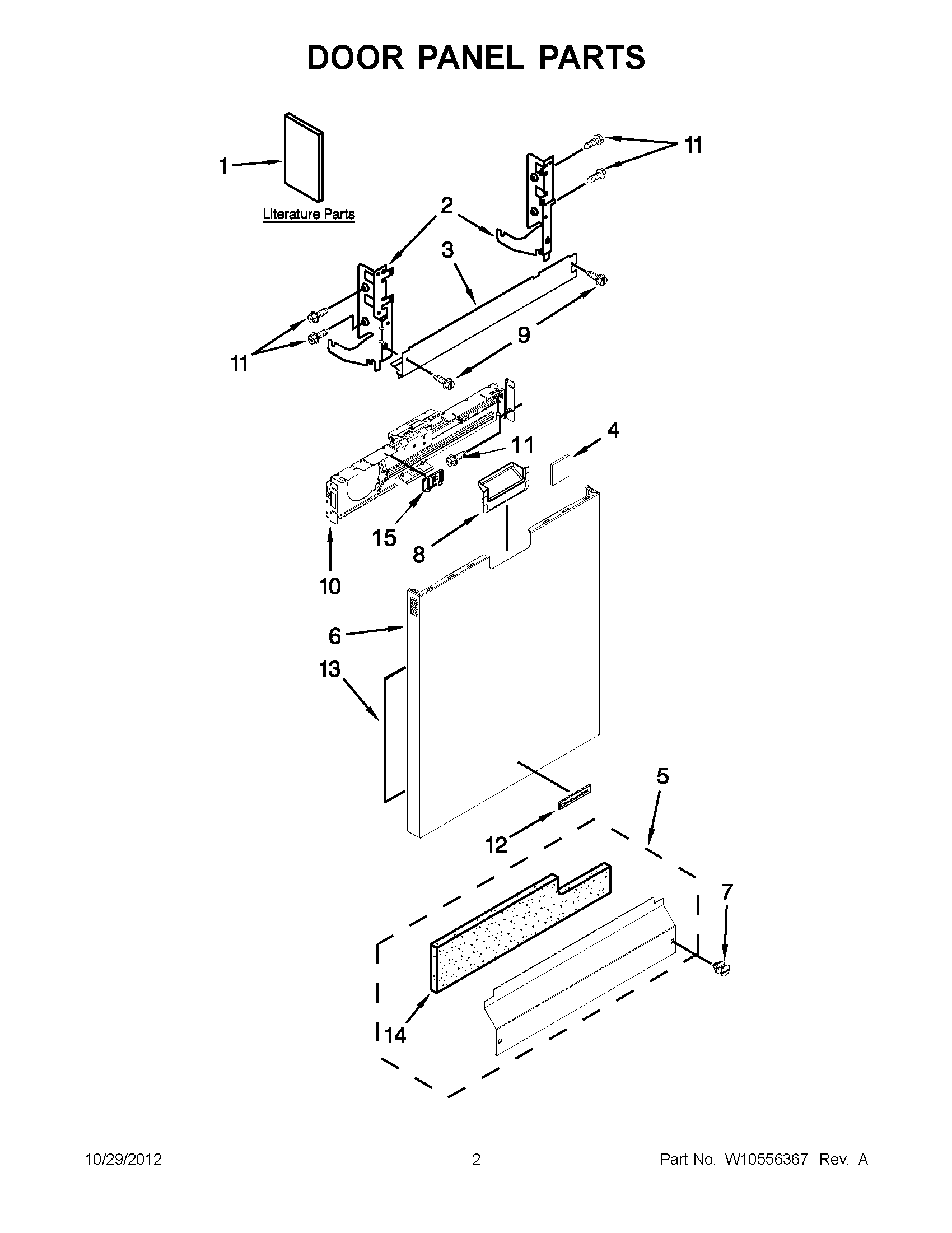

KUDE20IXBL9 01 – DOOR PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1	GUIDE, USE & CARE (SPANISH)
1	GUIDE, USE & CARE (SPANISH)
1	TECH SHEET, FRENCH
1	TECH SHEET, ENGLISH
1	INSTRUCTIONS, INSTALLATION
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	BLOCK, FOAM
5	W10827631 Whirlpool Toe Panel
5	W10827632 Whirlpool Dishwasher Control Panel
6	PANEL, FULL FRONT (INCLUDES 9 & 14) (WHITE)
6	WPW10195532 Whirlpool Dishwasher Panel
6	WPW10195531 Whirlpool Dishwasher Panel
7	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
7	WPW10503549 Whirlpool Dishwasher Retainer Clip
8	POCKET ASSEMBLY (WHITE)
8	W10195653 Whirlpool Dishwasher Handle Pocket
8	W10563099 Whirlpool Dishwasher Pocket Handle
9	WP489069 Whirlpool Compactor Screw
10	W11116870 Whirlpool Dishwasher Control Bracket
11	WP3400071 Whirlpool Screw
12	WPW10243391 Whirlpool Refrigerator Nameplate
12	WPW10243393 Whirlpool Dishwasher Nameplate
12	WPW10243392 Whirlpool Dishwasher Nameplate
13	WPW10073520 Whirlpool Dishwasher Insulation Pad
14	SHIELD
15	W10463662 Whirlpool Dishwasher Spacer Plate
