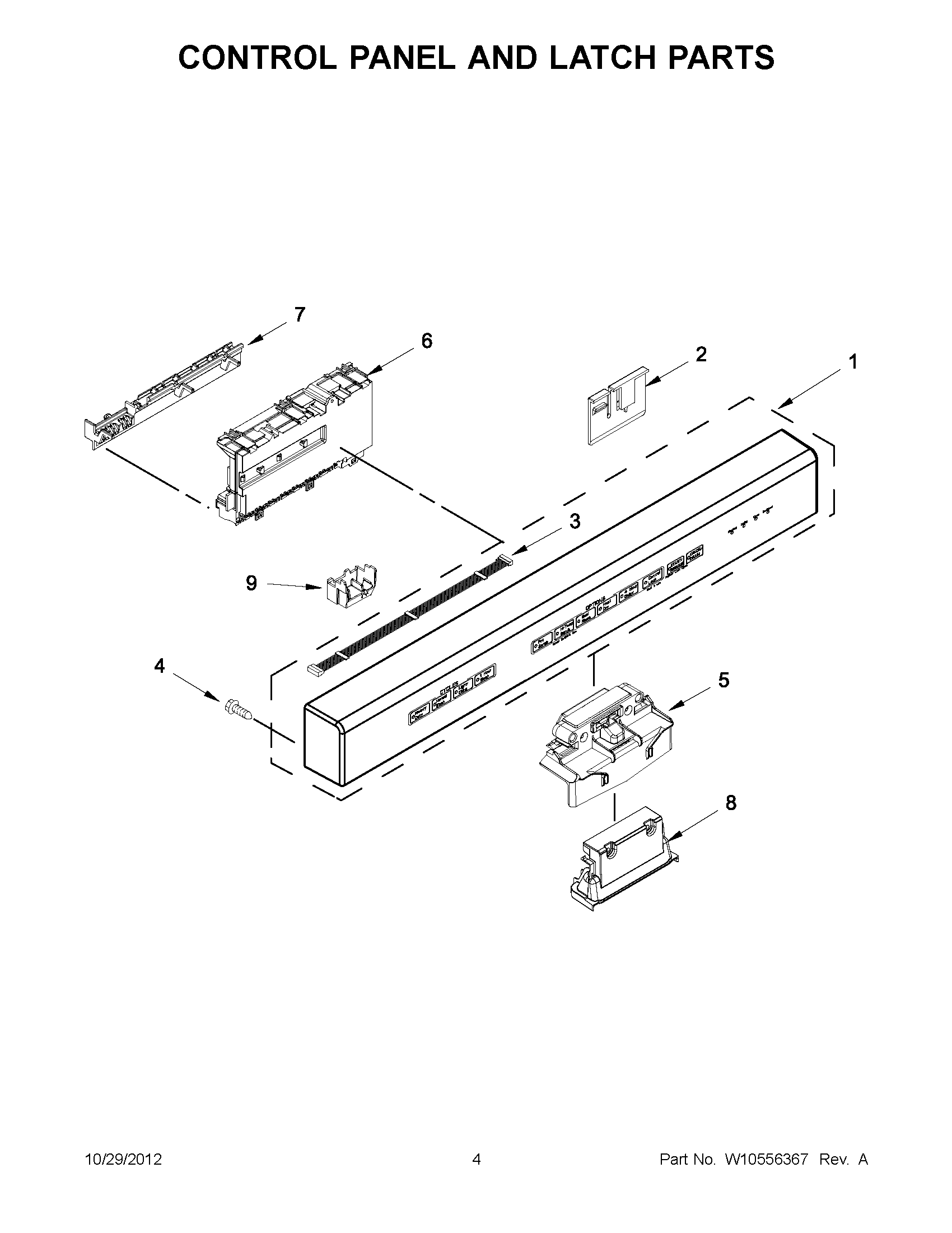

KUDE20IXBL9 02 – CONTROL PANEL AND LATCH PARTS

KUDE20IXBL9 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDE20IXBL9 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10500181 Whirlpool Dishwasher Control Panel
1WPW10500180 Whirlpool Dishwasher Control Panel
1WPW10500179 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10315814 Whirlpool Dishwasher Wire Harness
4WPW10348408 Whirlpool Dishwasher Screw
5W10619006 Whirlpool Door Latch
6W10866118 Whirlpool Dishwasher Electronic Control Board
7WPW10462395 Whirlpool Dishwasher Brace
8HANDLE (WHITE)
8HANDLE (STAINLESS)
8WPW10195718 Whirlpool Dishwasher Handle
9WPW10462393 Whirlpool Dishwasher Connector
