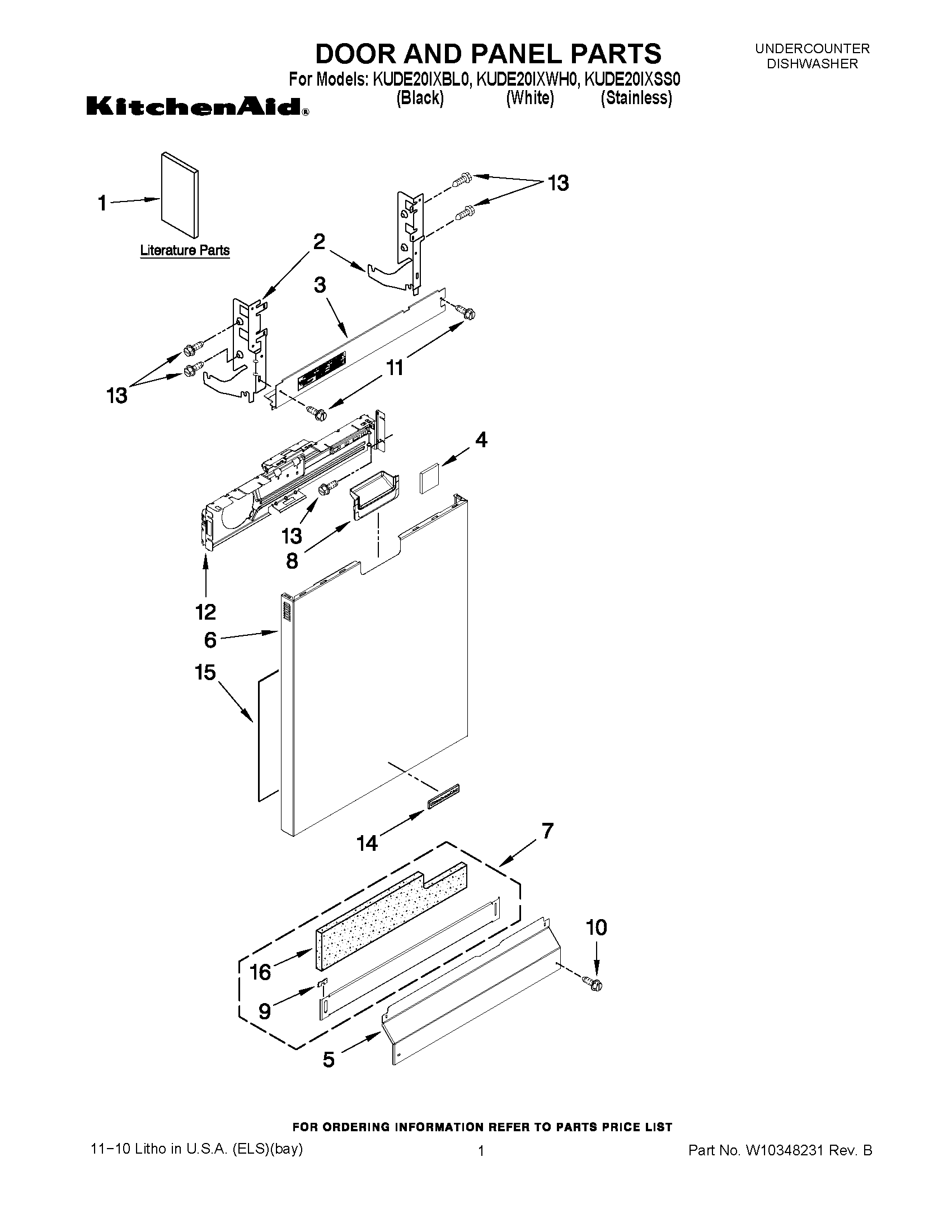

KUDE20IXSS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1INSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE (SPANISH)
1TECH SHEET/ENGLISH
1TECH SHEET/FRENCH
1GUIDE, USE & CARE (SPANISH)
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4BLOCK, FOAM
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10909066 Whirlpool Dishwasher Panel
6PANEL, FULL FRONT (INCLUDES 9 & 14) (WHITE)
6WPW10195532 Whirlpool Dishwasher Panel
6WPW10195531 Whirlpool Dishwasher Panel
7W10799406 Whirlpool Dishwasher Toe Panel
8W10195653 Whirlpool Dishwasher Handle Pocket
8W10563099 Whirlpool Dishwasher Pocket Handle
8POCKET ASSEMBLY (WHITE)
9WP8269016 Whirlpool Clip Assembly
10WPW10503549 Whirlpool Dishwasher Retainer Clip
10WP302868 Whirlpool Screw
11WP489069 Whirlpool Compactor Screw
12W11116870 Whirlpool Dishwasher Control Bracket
13WP3400071 Whirlpool Screw
14WPW10243391 Whirlpool Refrigerator Nameplate
14WPW10243392 Whirlpool Dishwasher Nameplate
14WPW10243393 Whirlpool Dishwasher Nameplate
15W11126003 Whirlpool Dishwasher Insulation Pad
16SHIELD
