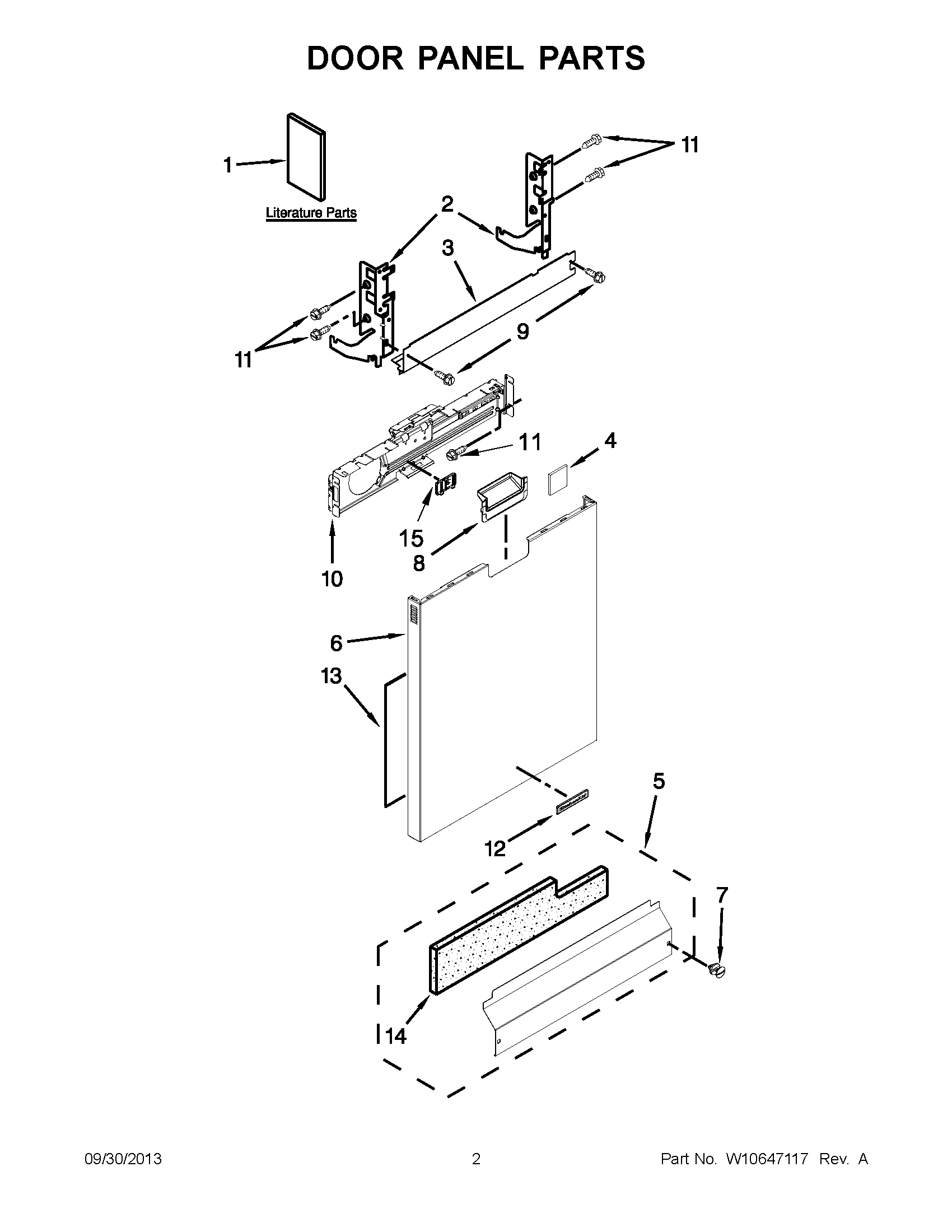

KUDE20IXSSA 02 – DOOR PANEL PARTS

KUDE20IXSSA 02 – DOOR PANEL PARTS

Written by

in

KUDE20IXSSA 02 – DOOR PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1USE & CARE GUIDE
1TECH SHEET, FRENCH
1TECH SHEET, ENGLISH
1INSTRUCTIONS, INSTALLATION
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4BLOCK, FOAM
5W10827631 Whirlpool Toe Panel
6WPW10195531 Whirlpool Dishwasher Panel
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8W10563099 Whirlpool Dishwasher Pocket Handle
9WP489069 Whirlpool Compactor Screw
10W11116870 Whirlpool Dishwasher Control Bracket
11WP3400071 Whirlpool Screw
12WPW10243391 Whirlpool Refrigerator Nameplate
13WPW10073520 Whirlpool Dishwasher Insulation Pad
14SHIELD
15W10463662 Whirlpool Dishwasher Spacer Plate
