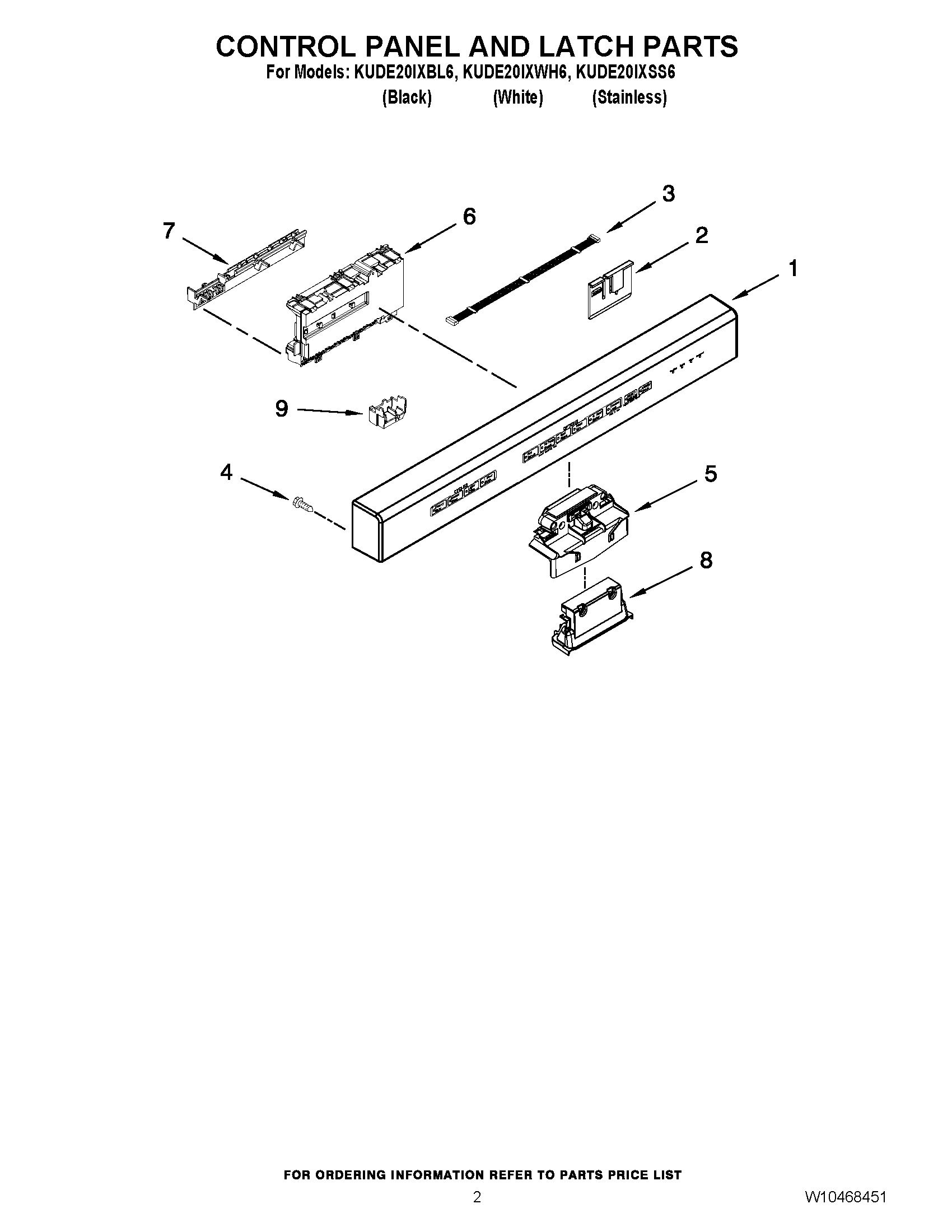

KUDE20IXWH6 02 – CONTROL PANEL AND LATCH PARTS

KUDE20IXWH6 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDE20IXWH6 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10500181 Whirlpool Dishwasher Control Panel
1WPW10500180 Whirlpool Dishwasher Control Panel
1WPW10500179 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3WPW10195666 Whirlpool Dishwasher Wire Assembly
4WPW10348408 Whirlpool Dishwasher Screw
5W10619006 Whirlpool Door Latch
6W10473198 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8HANDLE (STAINLESS)
8HANDLE (WHITE)
8WPW10195718 Whirlpool Dishwasher Handle
9W10783730 Whirlpool Dishwasher Connector
