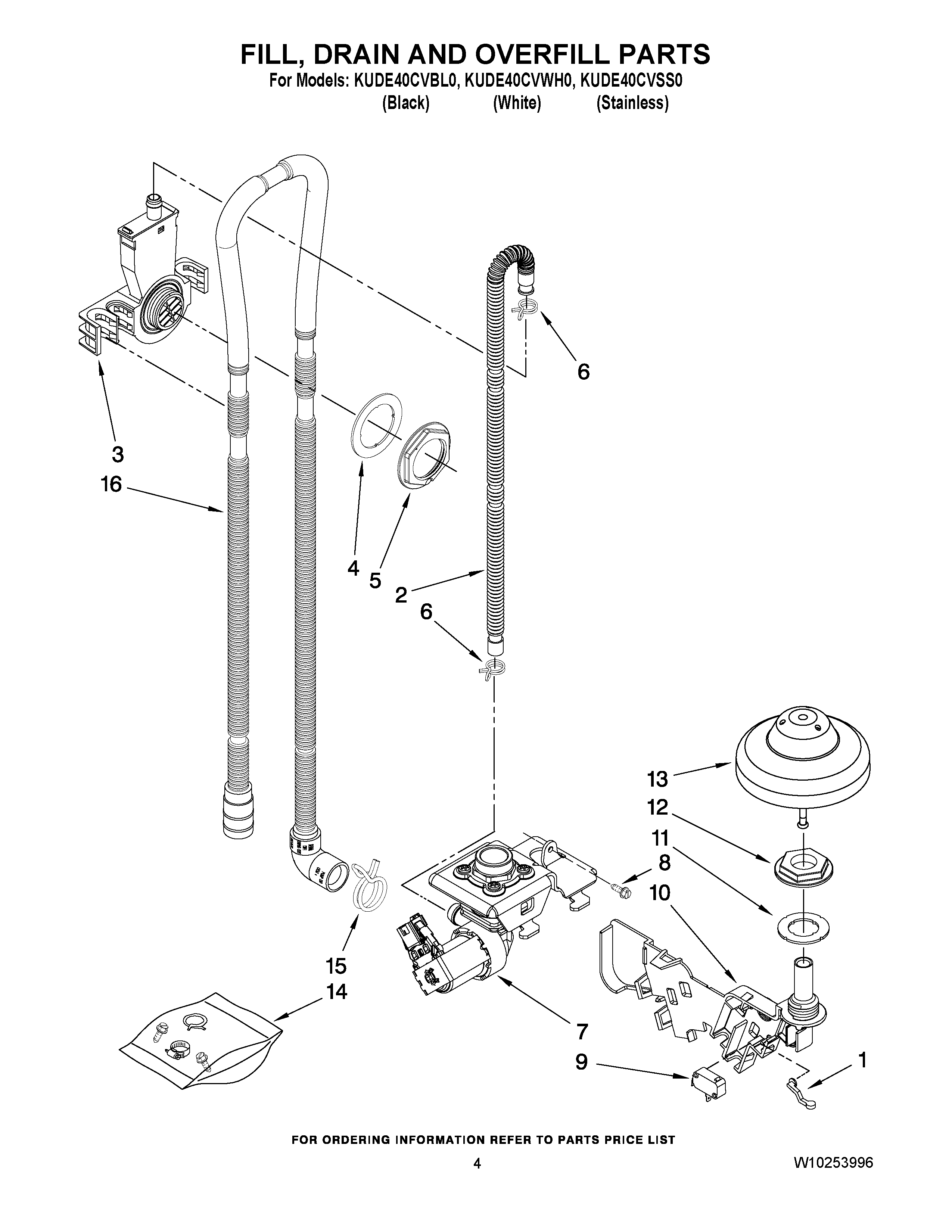

KUDE40CVBL0 04 – FILL DRAIN AND OVERFILL PARTS

KUDE40CVBL0 04 – FILL DRAIN AND OVERFILL PARTS

Written by

in

KUDE40CVBL0 04 – FILL DRAIN AND OVERFILL PARTS

Products

PositionProduct
1WP8268892 Whirlpool Dishwasher Lever
2W10878507 Whirlpool Inlet Hose
3WPW10195536 Whirlpool Water Inlet Valve
4WP8531323 Whirlpool Gasket Seal
5WPW10508676 Whirlpool Dishwasher Tube Nut
6WP596669 Whirlpool Hose Clamp
7W10648041 Whirlpool Water Inlet Valve
8WP489069 Whirlpool Compactor Screw
9WP8268909 Whirlpool Dishwasher Switch
108193506 Whirlpool Dishwasher Switch
11WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
12WP9741998 Whirlpool Dishwasher Nut
13WPW10077871 Whirlpool Dishwasher Float Assembly
14WPW10292170 Whirlpool Dishwasher Miscellaneous Parts
15WP356138 Whirlpool Hose Clamp
16WPW10545278 Whirlpool Drain Hose
