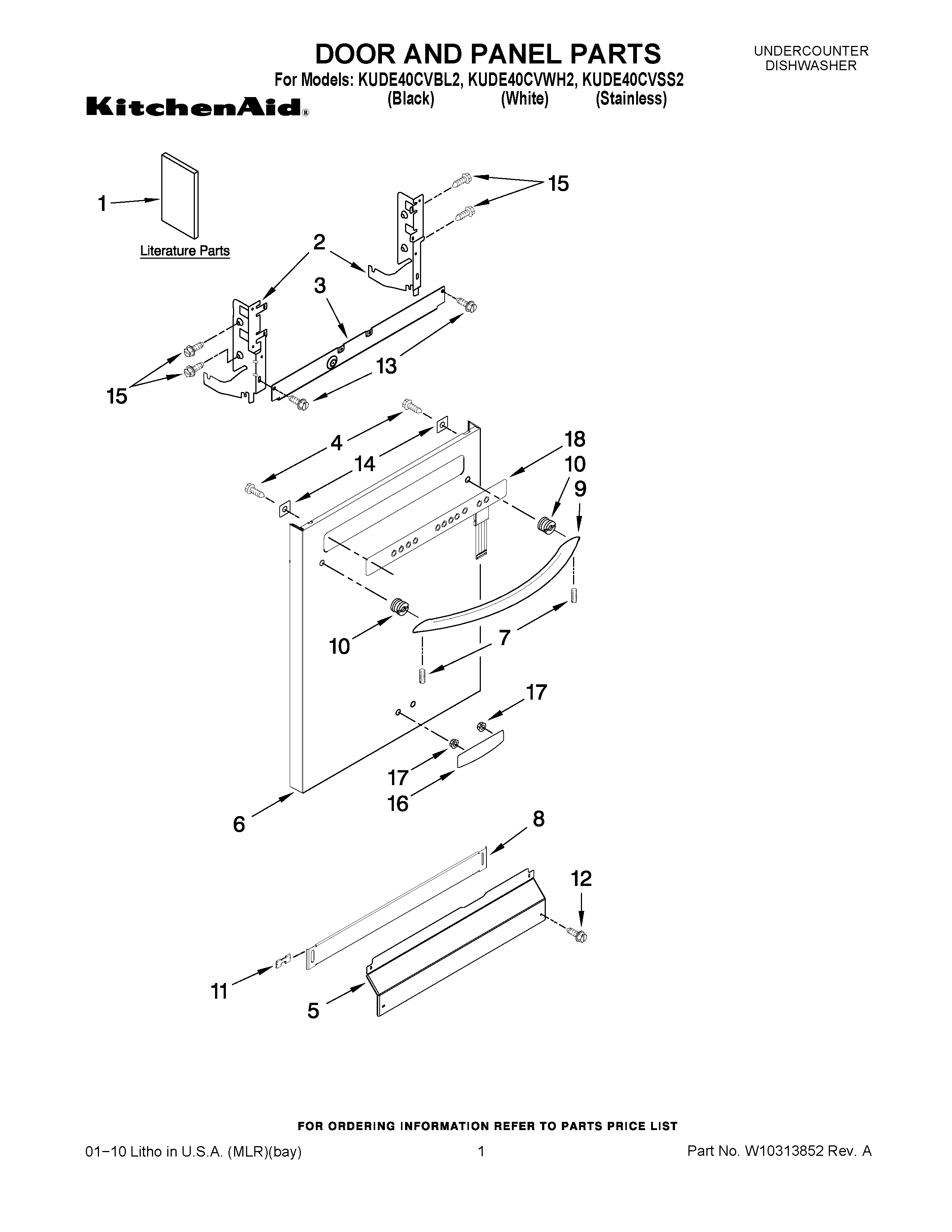

KUDE40CVBL2 01 – DOOR AND PANEL PARTS

KUDE40CVBL2 01 – DOOR AND PANEL PARTS

Written by

in

KUDE40CVBL2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1INSERT-INSTALL
1TECH SHEET (ENGLISH)
1TECH SHEET (FRENCH)
1Guide, Use & Care English
1GUIDE, USE & CARE (SPANISH)
1ENERGY GUIDE
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Screw
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10909066 Whirlpool Dishwasher Panel
6Panel, Full Front (Includes Items 10, 16, 17) (Black)
6Panel, Full Front (Includes Items 10, 16, 17) (White)
6Panel, Full Front (Includes Items 10, 16, 17) (Stainless)
7WP8534008 Whirlpool Screw
8WP8573287 Whirlpool Dishwasher Toe Panel
9W10195738A Whirlpool Stainless Steel Door Handle
9HANDLE (INCLUDES ITEMS 13) (BLACK)
9HANDLE (INCLUDES ITEMS 13) (WHITE)
10WP8564951 Whirlpool Dishwasher Stud
11WP8269016 Whirlpool Clip Assembly
12WP302868 Whirlpool Screw
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13WP489069 Whirlpool Compactor Screw
14Plates, Backing
15WP3400071 Whirlpool Screw
16W10021850 Whirlpool Dishwasher Nameplate
16W10021860 Whirlpool Dishwasher Nameplate
16W10021870 Whirlpool Nameplate
17WP2004333 Whirlpool Refrigerator Nut
18W10238437 Whirlpool Dishwasher Overlay
18Bezel Assembly (Stainless)
