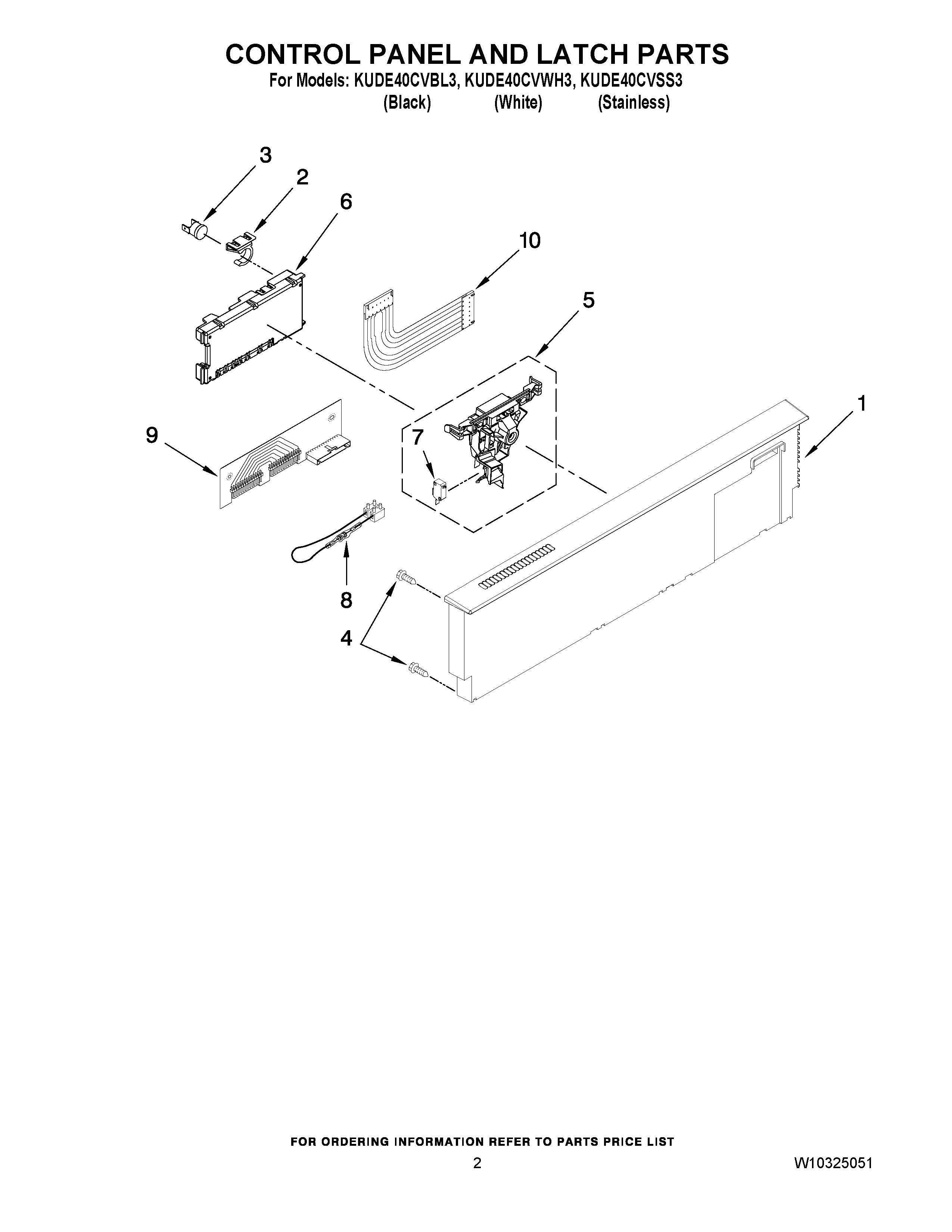

KUDE40CVBL3 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	Console Assembly (Stainless)
1	Console Assembly (White)
1	WP8572354 Whirlpool Dishwasher Console
2	Clip, BI-Metal
3	W10258275 Whirlpool Dishwasher Bimetal Fuse
4	WP8533965 Whirlpool Dishwasher Screw
5	WPW10404412 Whirlpool Door Latch
6	WPW10285178-includeCORE Whirlpool WPW10285178 Dishwasher Electronic Control Board
7	WPW10134019 Whirlpool Dishwasher Switch
8	WPW10083167 Whirlpool Dishwasher Wire Harness
9	WP8531873 Whirlpool Dishwasher Control Board
10	CABLE-RIBBON
