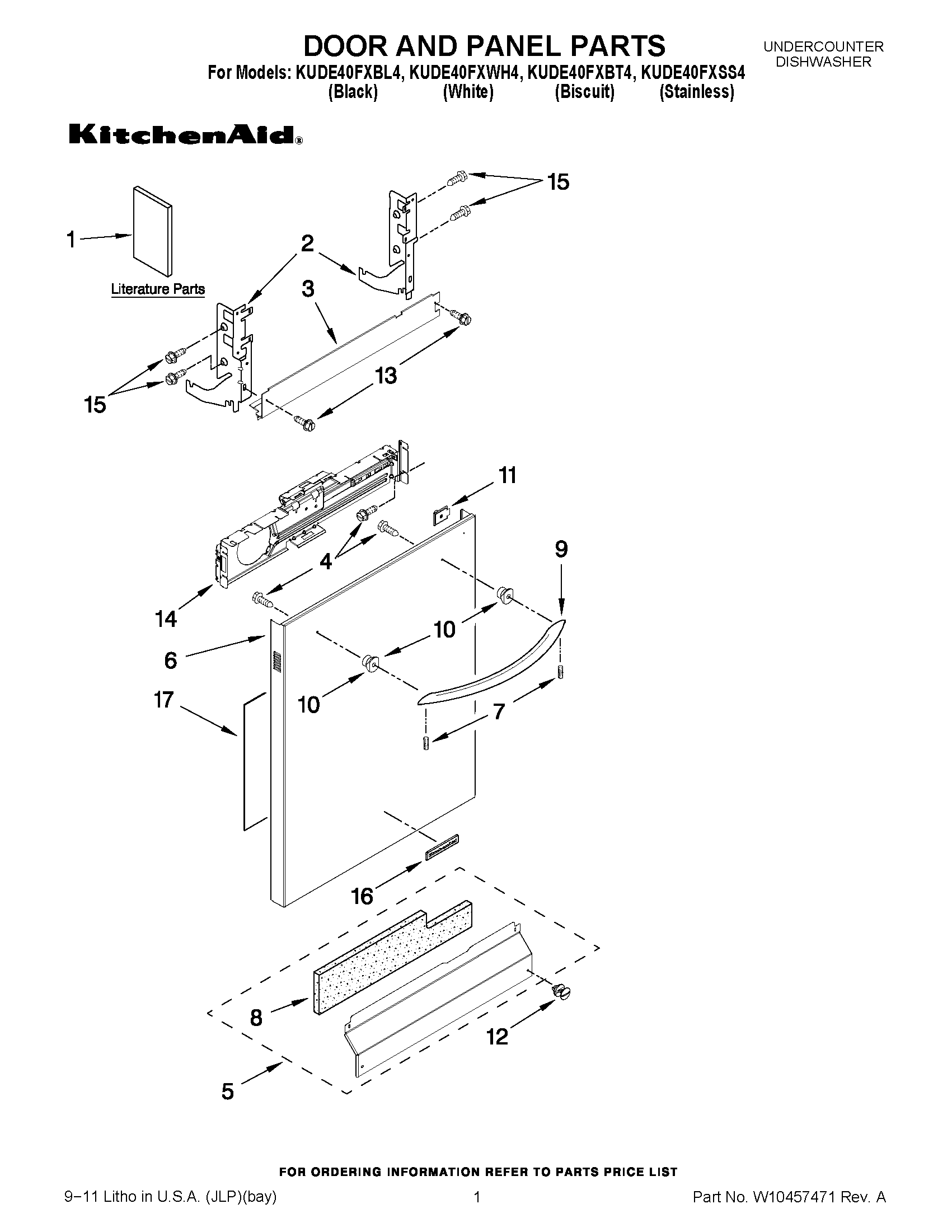

KUDE40FXBL4 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1INSTRUCTIONS, INSTALLATION
1TECH SHEET/ENGLISH
1GUIDE, USE & CARE (SPANISH)
1TECH SHEET/FRENCH
1GUIDE, USE & CARE (SPANISH)
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5W10369028 Whirlpool Dishwasher Panel
5W10827631 Whirlpool Toe Panel
5W10827632 Whirlpool Dishwasher Control Panel
6WPW10195873 Whirlpool Dishwasher Panel
6PANEL, FRONT (INCLUDES ITEMS 10, 11, &16) (BISCUIT/BISQUE)
6WPW10195870 Whirlpool Door Outer Panel
6WPW10195872 Whirlpool Dishwasher Panel
7WPW10307614 Whirlpool Dishwasher Screw
8SHIELD
9HANDLE ASSEMBLY (INCLUDES ITEM 7) (BISCUIT/BISQUE)
9W10195735A Whirlpool Dishwasher Door Handle Black
9W10195736A Whirlpool Dishwasher Handle
9W10195738A Whirlpool Stainless Steel Door Handle
10W11157086 Whirlpool Dishwasher Door Handle Stud
11W10319007 Whirlpool Dishwasher Indicator Light
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WPW10503550 Whirlpool Dishwasher Retainer
12WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
13WP489069 Whirlpool Compactor Screw
14W11116870 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16NAMEPLATE (BISCUIT/BISQUE)
16WPW10243393 Whirlpool Dishwasher Nameplate
16WPW10243392 Whirlpool Dishwasher Nameplate
16WPW10243391 Whirlpool Refrigerator Nameplate
17W11126003 Whirlpool Dishwasher Insulation Pad
