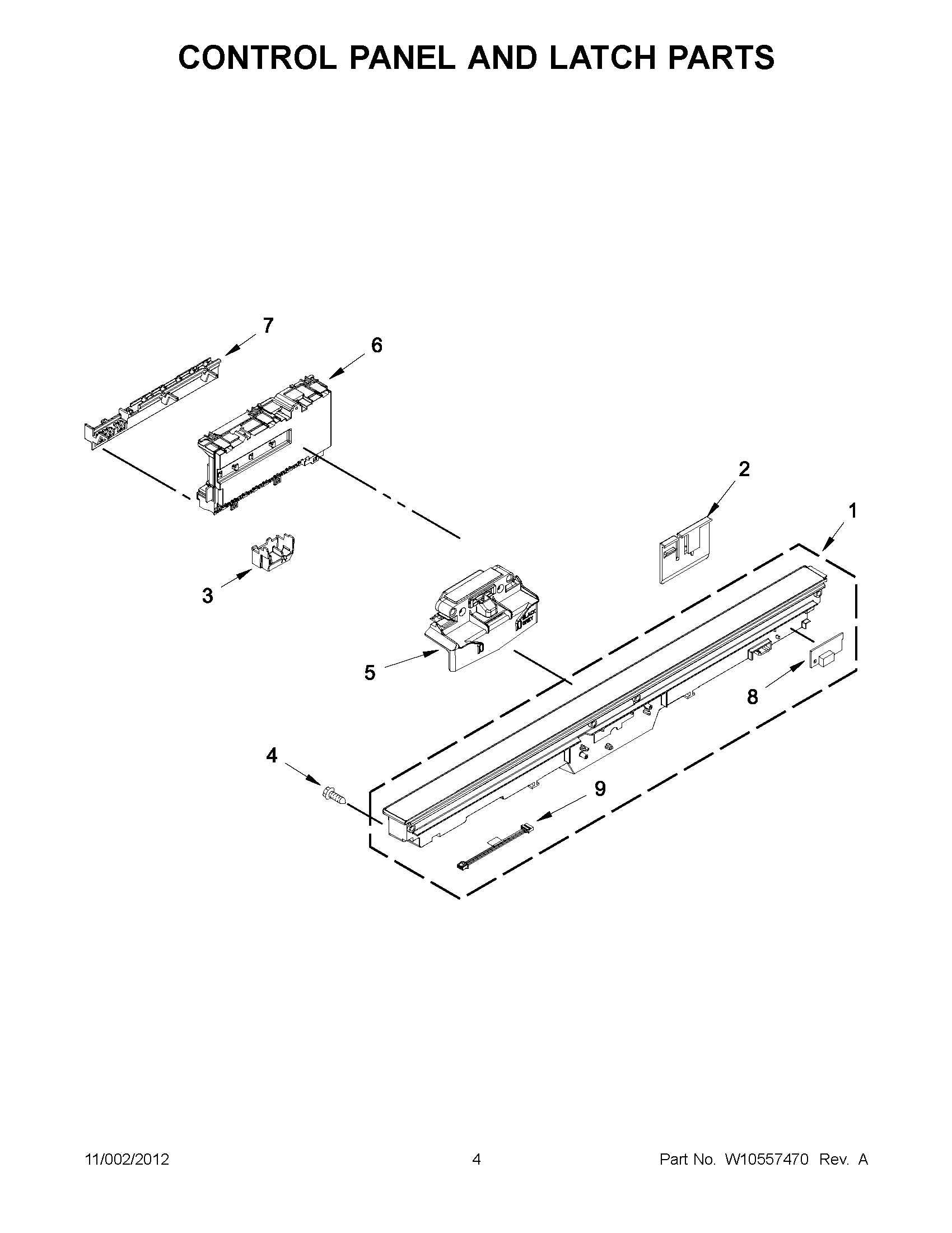

KUDE40FXBL6 02 – CONTROL PANEL AND LATCH PARTS

KUDE40FXBL6 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDE40FXBL6 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10481119 Whirlpool Dishwasher Control Panel
1WPW10481118 Whirlpool Dishwasher Control Panel
1WPW10481117 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3WPW10462393 Whirlpool Dishwasher Connector
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6W10866118 Whirlpool Dishwasher Electronic Control Board
7WPW10462395 Whirlpool Dishwasher Brace
8WPW10195836 Whirlpool Dishwasher Indicator Light
9W10315814 Whirlpool Dishwasher Wire Harness
