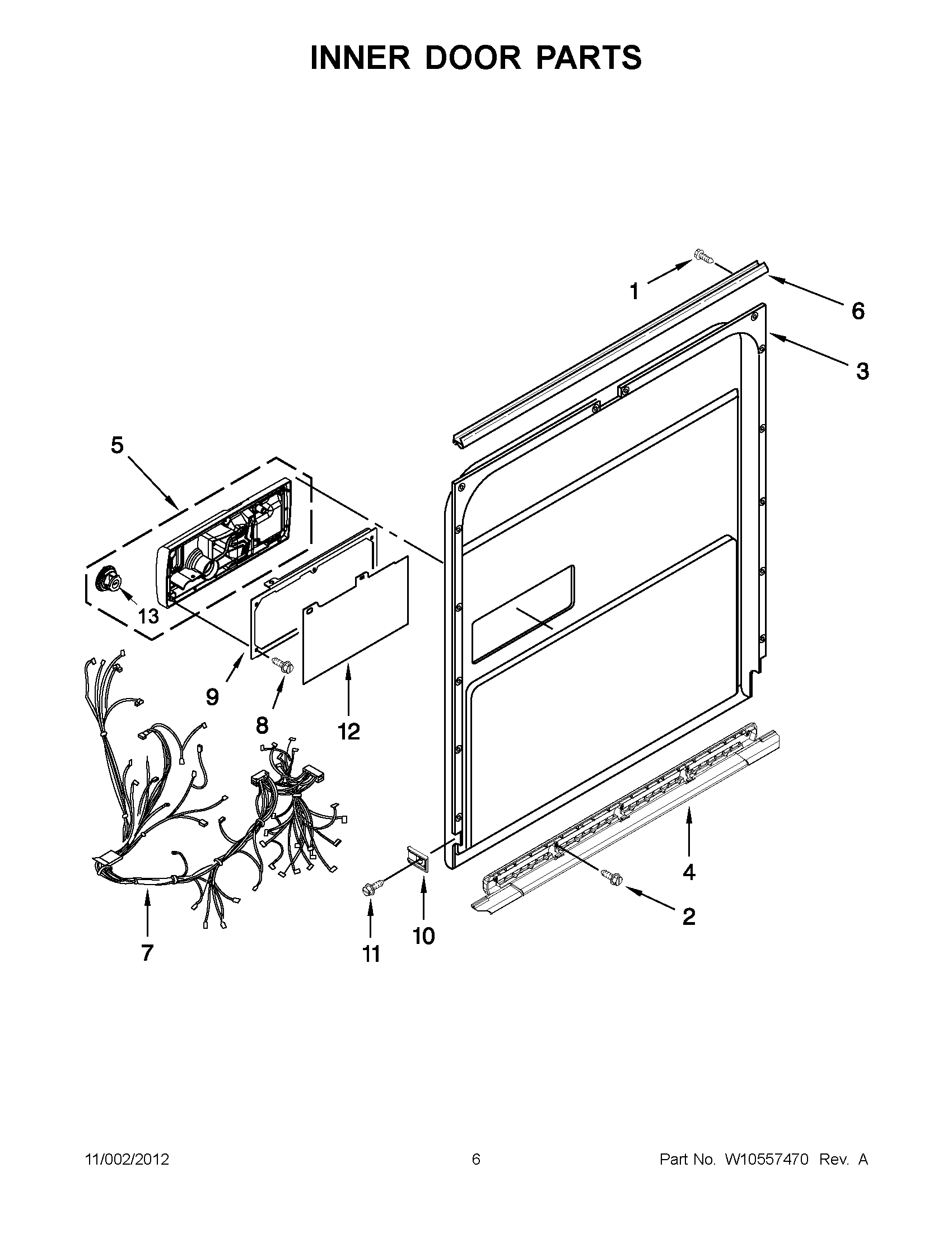

KUDE40FXBL6 03 – INNER DOOR PARTS

KUDE40FXBL6 03 – INNER DOOR PARTS

Written by

in

KUDE40FXBL6 03 – INNER DOOR PARTS

Products

PositionProduct
1WP3400892 Whirlpool Dishwasher Screw
2W11631670 Whirlpool Screw
3WPW10480715 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5DISPENSER (DISHWASHER)
6WPW10195007 Whirlpool Dishwasher Seal
7W10911101 Whirlpool Dishwasher Wire Harness
8WPW10177098 Whirlpool Dishwasher Screw
9WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
10W10195837 Whirlpool Dishwasher Barrier
11WP3400071 Whirlpool Screw
12WPW10482094 Whirlpool Dishwasher Cover
13WPW10524920 Whirlpool Dishwasher Rinse Aid Dispenser Cap
