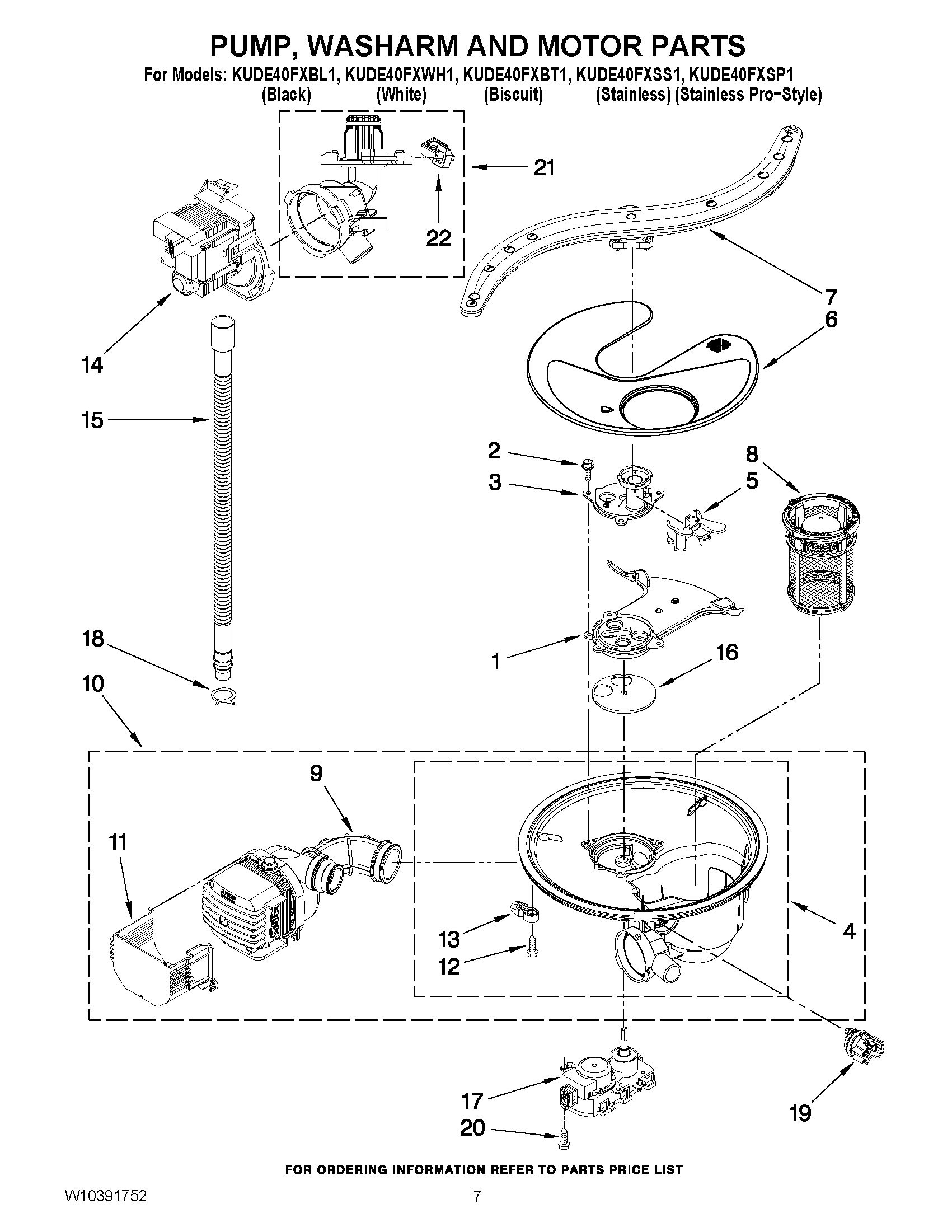

KUDE40FXBT1 06 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	Cover, Sieve
2	SCREW
3	COVER, OUTLET
4	W10168822 Whirlpool Dishwasher Sump Assembly
5	Retainer, Feed Tube
6	WP8579253 Whirlpool Screen Filter
7	ARM-SPRAY
8	W10872845 Whirlpool Dishwasher Filter Cup Trap
9	Hose, Inlet (Includes 3 Hose Clamps)
10	WPW10328226 Whirlpool Dishwasher Pump and Motor
11	8579272 Whirlpool Shield
12	WPW10348407 Whirlpool Dishwasher Screw
13	WPW10372113 Whirlpool Dishwasher Sump Tab
14	WPW10348269 Whirlpool Washer Drain Pump
15	8269144A Whirlpool Dishwasher Drain Hose
16	Disc-Valve Diverter
17	MOTOR-DIVERTER DW
18	WP8269146 Whirlpool Dishwasher Clamp
19	WPW10705575 Whirlpool Dishwasher Sensor
20	WP9741232 Whirlpool Dishwasher Screw
21	WPW10179455 Whirlpool Housing Drain Pump
22	BLOCK, MOUNTING
