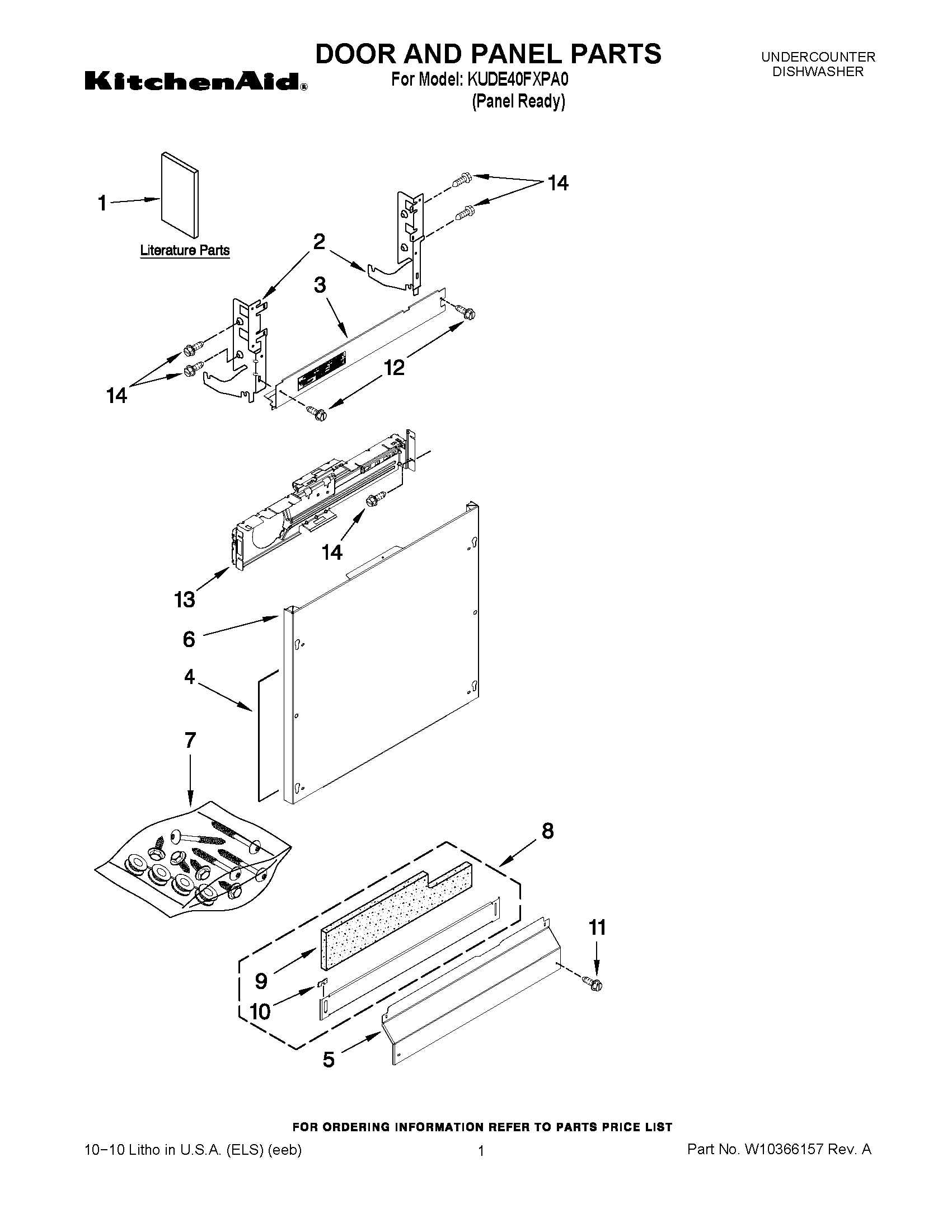

KUDE40FXPA0 01 – DOOR AND PANEL PARTS

KUDE40FXPA0 01 – DOOR AND PANEL PARTS

Written by

in

KUDE40FXPA0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1GUIDE, USE & CARE (SPANISH)
1INSTRUCTIONS, INSTALLATION
1TEMPLATE, 6" CUSTOM PANEL
1TECH SHEET/FRENCH
1TECH SHEET/ENGLISH
1GUIDE, USE & CARE (SPANISH)
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10234565 Whirlpool Dishwasher Insulation Pad
5W10909064 Whirlpool Dishwasher Black Access Panel
6W11113792 Whirlpool Dishwasher Panel
7WPW10637074 Whirlpool Dishwasher Miscellaneous Parts
9CABINET (NOT A SERVICEABLE PART)
10WP8269016 Whirlpool Clip Assembly
11WP302868 Whirlpool Screw
12WP489069 Whirlpool Compactor Screw
13W11116870 Whirlpool Dishwasher Control Bracket
14WP3400071 Whirlpool Screw
