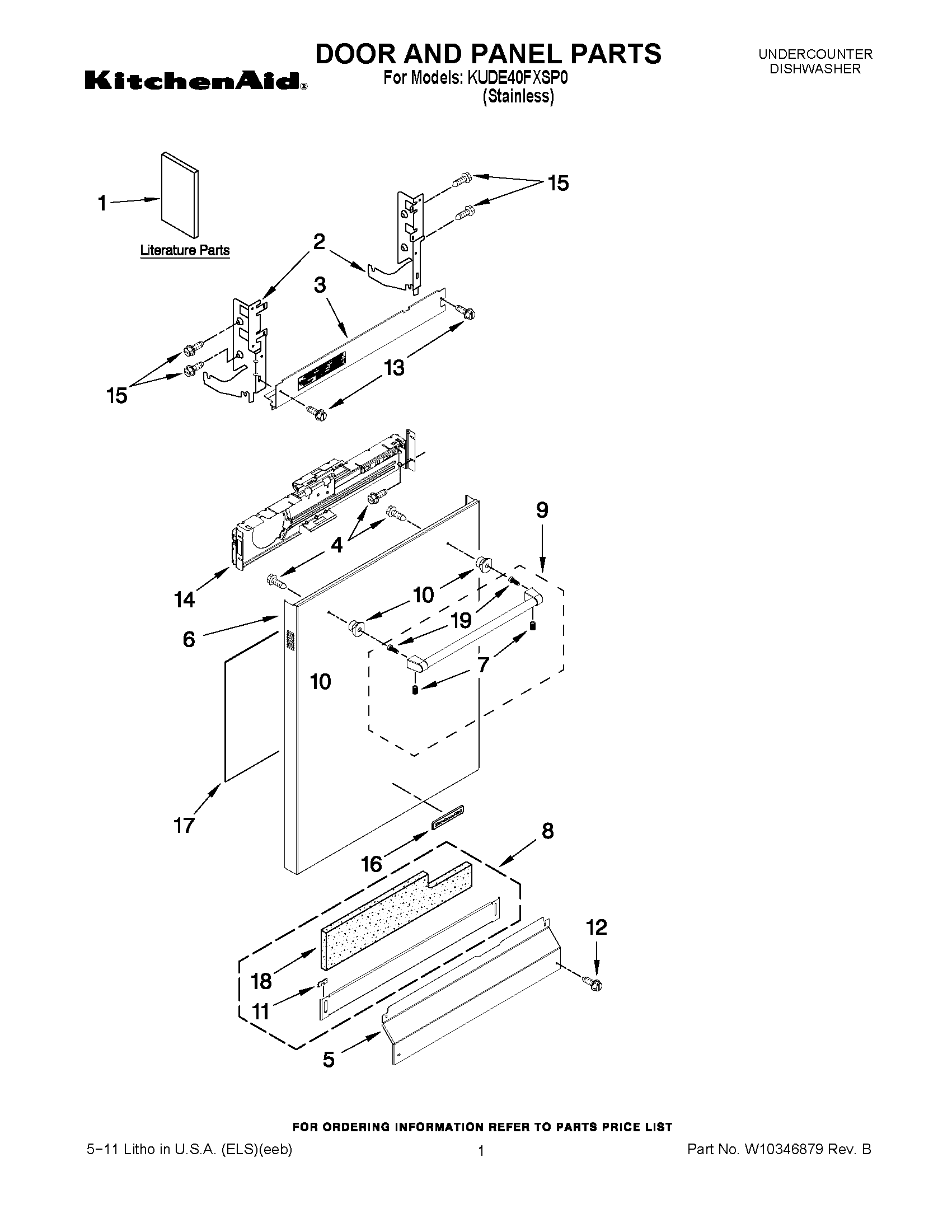

KUDE40FXSP0 01 – DOOR AND PANEL PARTS

KUDE40FXSP0 01 – DOOR AND PANEL PARTS

Written by

in

KUDE40FXSP0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1TECH SHEET/FRENCH
1TECH SHEET/ENGLISH
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1INSTRUCTIONS, INSTALLATION
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5W10909064 Whirlpool Dishwasher Black Access Panel
6WPW10195874 Whirlpool Dishwasher Panel
7W10320946 Whirlpool Dishwasher Screw
9HANDLE ASSEMBLY (INCLUDES ITEM 7) (STAINLESS PRO)
10W11157086 Whirlpool Dishwasher Door Handle Stud
11WP8269016 Whirlpool Clip Assembly
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14W11116870 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16WPW10320959 Whirlpool Dishwasher Nameplate
17W11126003 Whirlpool Dishwasher Insulation Pad
18SHIELD
19Screw
