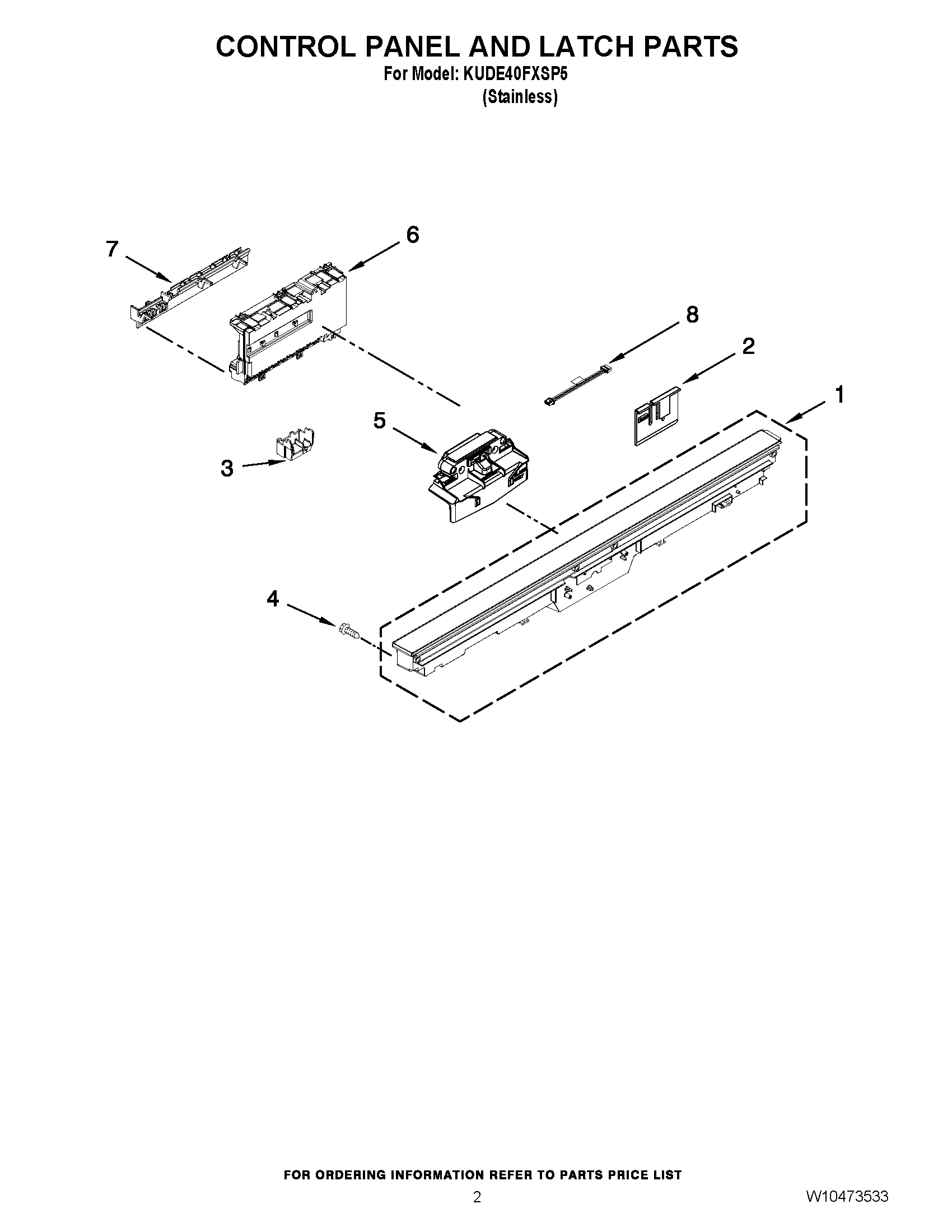

KUDE40FXSP5 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	WPW10481116 Whirlpool Dishwasher Control Panel
2	W11256107 Whirlpool Dishwasher Clip
3	W10783730 Whirlpool Dishwasher Connector
4	WPW10348409 Whirlpool Screw
5	W10619006 Whirlpool Door Latch
6	W10473198 Whirlpool Dishwasher Electronic Control Board
7	WPW10194937 Whirlpool Dishwasher Control Bracket
8	WPW10195666 Whirlpool Dishwasher Wire Assembly
