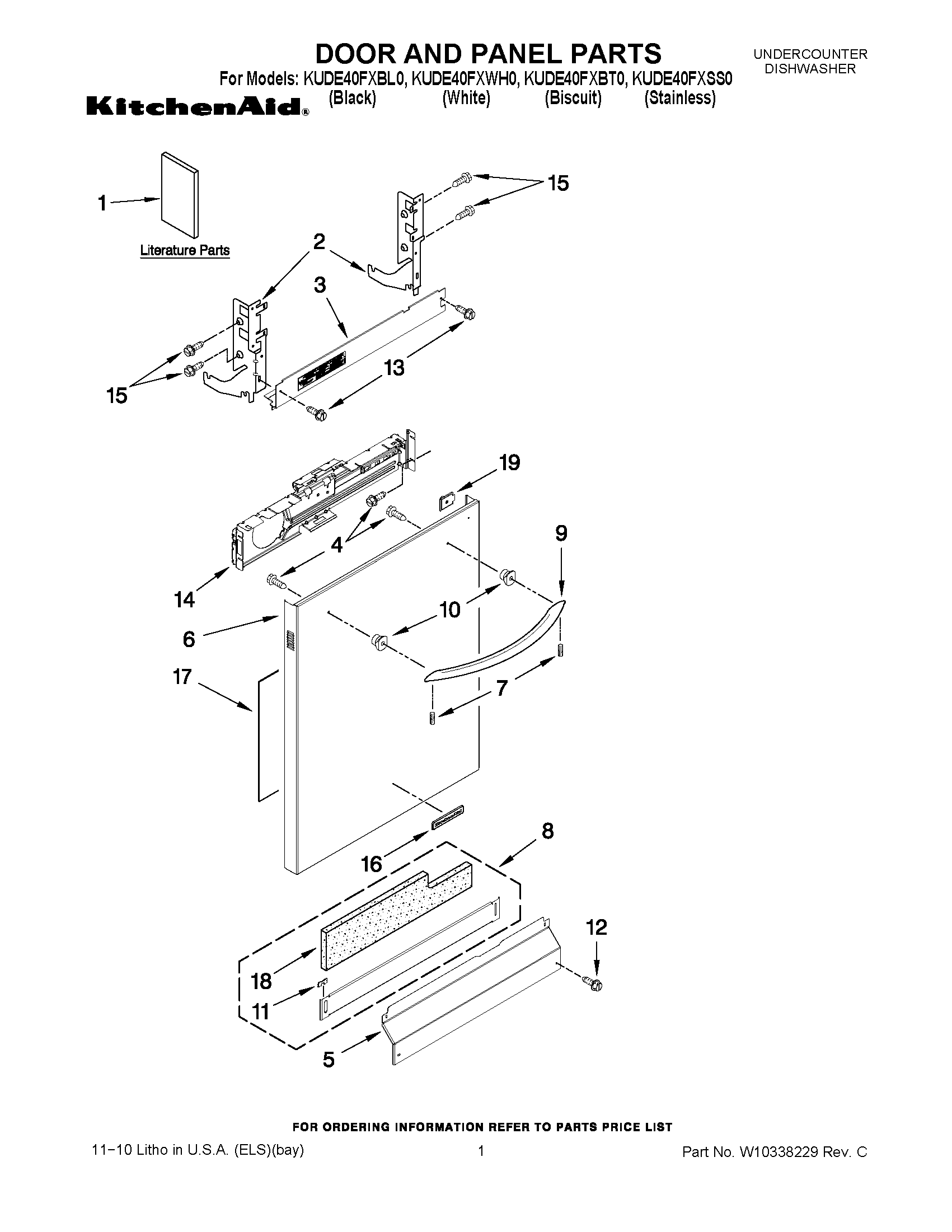

KUDE40FXSS0 01 – DOOR AND PANEL PARTS

KUDE40FXSS0 01 – DOOR AND PANEL PARTS

Written by

in

KUDE40FXSS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1GUIDE, USE & CARE (SPANISH)
1TECH SHEET/FRENCH
1TECH SHEET/ENGLISH
1GUIDE, USE & CARE (SPANISH)
1INSTRUCTIONS, INSTALLATION
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10909066 Whirlpool Dishwasher Panel
5W10871198 Whirlpool Dishwasher Panel
6WPW10195870 Whirlpool Door Outer Panel
6PANEL, FRONT (INCLUDES ITEMS 10, 11, &16) (BISCUIT/BISQUE)
6WPW10195872 Whirlpool Dishwasher Panel
6WPW10195873 Whirlpool Dishwasher Panel
7WPW10307614 Whirlpool Dishwasher Screw
8W10799406 Whirlpool Dishwasher Toe Panel
8TOE PANEL (INCLUDES ITEMS 11 & 18) (BISCUIT)
9HANDLE ASSEMBLY (INCLUDES ITEM 7) (BISCUIT/BISQUE)
9W10195736A Whirlpool Dishwasher Handle
9W10195738A Whirlpool Stainless Steel Door Handle
9W10195735A Whirlpool Dishwasher Door Handle Black
10W11157086 Whirlpool Dishwasher Door Handle Stud
11WP8269016 Whirlpool Clip Assembly
12WP302868 Whirlpool Screw
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WPW10503550 Whirlpool Dishwasher Retainer
13WP489069 Whirlpool Compactor Screw
14W11116870 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16NAMEPLATE (BISCUIT/BISQUE)
16WPW10243392 Whirlpool Dishwasher Nameplate
16WPW10243393 Whirlpool Dishwasher Nameplate
16WPW10243391 Whirlpool Refrigerator Nameplate
17W11126003 Whirlpool Dishwasher Insulation Pad
18SHIELD
19W10319007 Whirlpool Dishwasher Indicator Light
