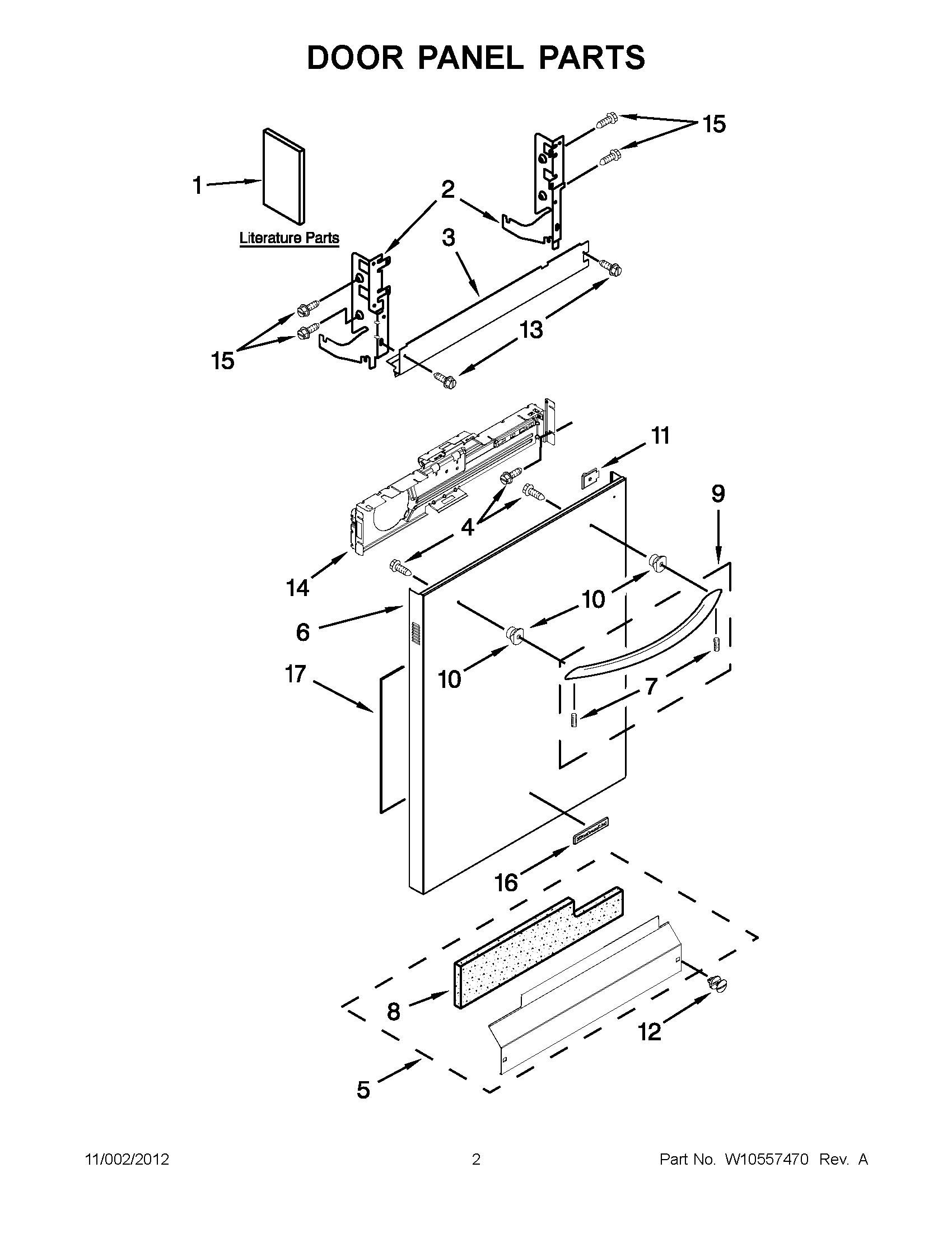

KUDE40FXSS6 01 – DOOR PANEL PARTS

Products

Position	Product
1	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE & CARE (SPANISH)
1	TECH SHEET, ENGLISH
1	GUIDE, USE & CARE (SPANISH)
1	ENERGY GUIDE
1	TECH SHEET, FRENCH
2	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	W10826179 Whirlpool Dishwasher Screw
5	W10827632 Whirlpool Dishwasher Control Panel
5	W10827631 Whirlpool Toe Panel
5	W10369028 Whirlpool Dishwasher Panel
6	WPW10195872 Whirlpool Dishwasher Panel
6	WPW10195873 Whirlpool Dishwasher Panel
6	WPW10195870 Whirlpool Door Outer Panel
6	PANEL, FRONT (INCLUDES ITEMS 10, 11, &16) (BISCUIT/BISQUE)
7	WPW10307614 Whirlpool Dishwasher Screw
8	SHIELD
9	HANDLE ASSEMBLY (INCLUDES ITEM 7) (BISCUIT/BISQUE)
9	W10195736A Whirlpool Dishwasher Handle
9	W10195735A Whirlpool Dishwasher Door Handle Black
9	W10195738A Whirlpool Stainless Steel Door Handle
10	W11157086 Whirlpool Dishwasher Door Handle Stud
11	W10319007 Whirlpool Dishwasher Indicator Light
12	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
12	WPW10503550 Whirlpool Dishwasher Retainer
13	WP489069 Whirlpool Compactor Screw
14	W11116870 Whirlpool Dishwasher Control Bracket
15	WP3400071 Whirlpool Screw
16	NAMEPLATE (BISCUIT/BISQUE)
16	WPW10243391 Whirlpool Refrigerator Nameplate
16	WPW10243392 Whirlpool Dishwasher Nameplate
16	WPW10243393 Whirlpool Dishwasher Nameplate
17	WPW10073520 Whirlpool Dishwasher Insulation Pad
