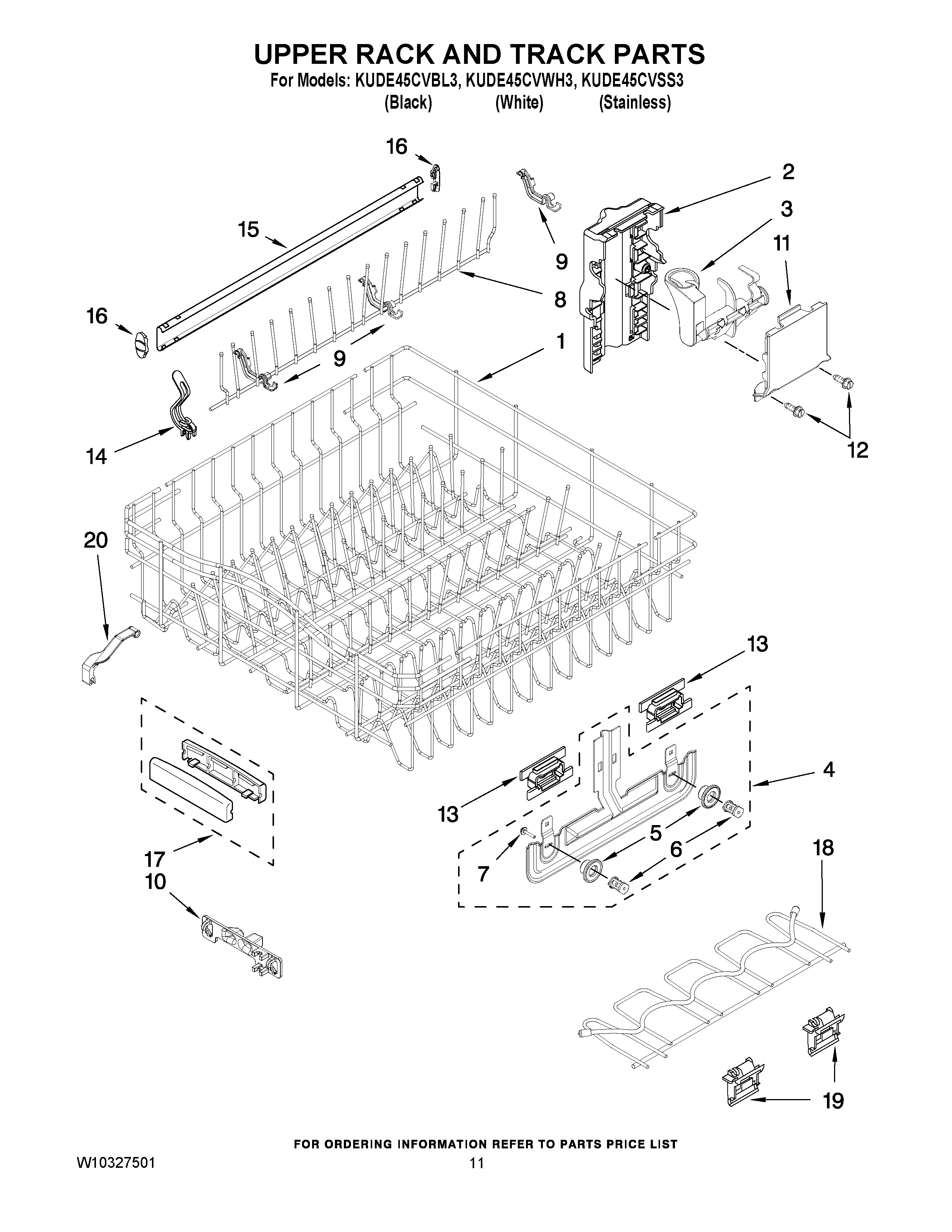

KUDE45CVSS3 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	W10728863 Whirlpool Upper Dishrack Assembly
2	W10728563 Whirlpool Dishwasher Housing
3	Actuator, Adjuster (Right Hand)
3	Actuator, Adjuster (Left Hand)
4	W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
5	WP3385088 Whirlpool Dishwasher Upper Wheel
6	WP8268703 Whirlpool Dishwasher Rack Axle
7	WP8281156 Whirlpool Dishwasher Screw
8	W10727426 Whirlpool Dishwasher Rack Tine
9	WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
10	WP8539102 Whirlpool Dishwasher Positioner
11	W10728561 Whirlpool Dishwasher Cover
12	WP9741232 Whirlpool Dishwasher Screw
13	W10728566 Whirlpool Dishwasher Positioner
14	WPW10077844 Whirlpool Dishwasher Clip
15	WP3385089 Whirlpool Track
16	WP8565925 Whirlpool Slide Rail Stop
17	Handle, Dishrack
18	W11125975 Whirlpool Dishwasher Cup Shelf
19	8562026 Whirlpool Dishwasher Clip
20	WPW10267076 Whirlpool Guard Clip
