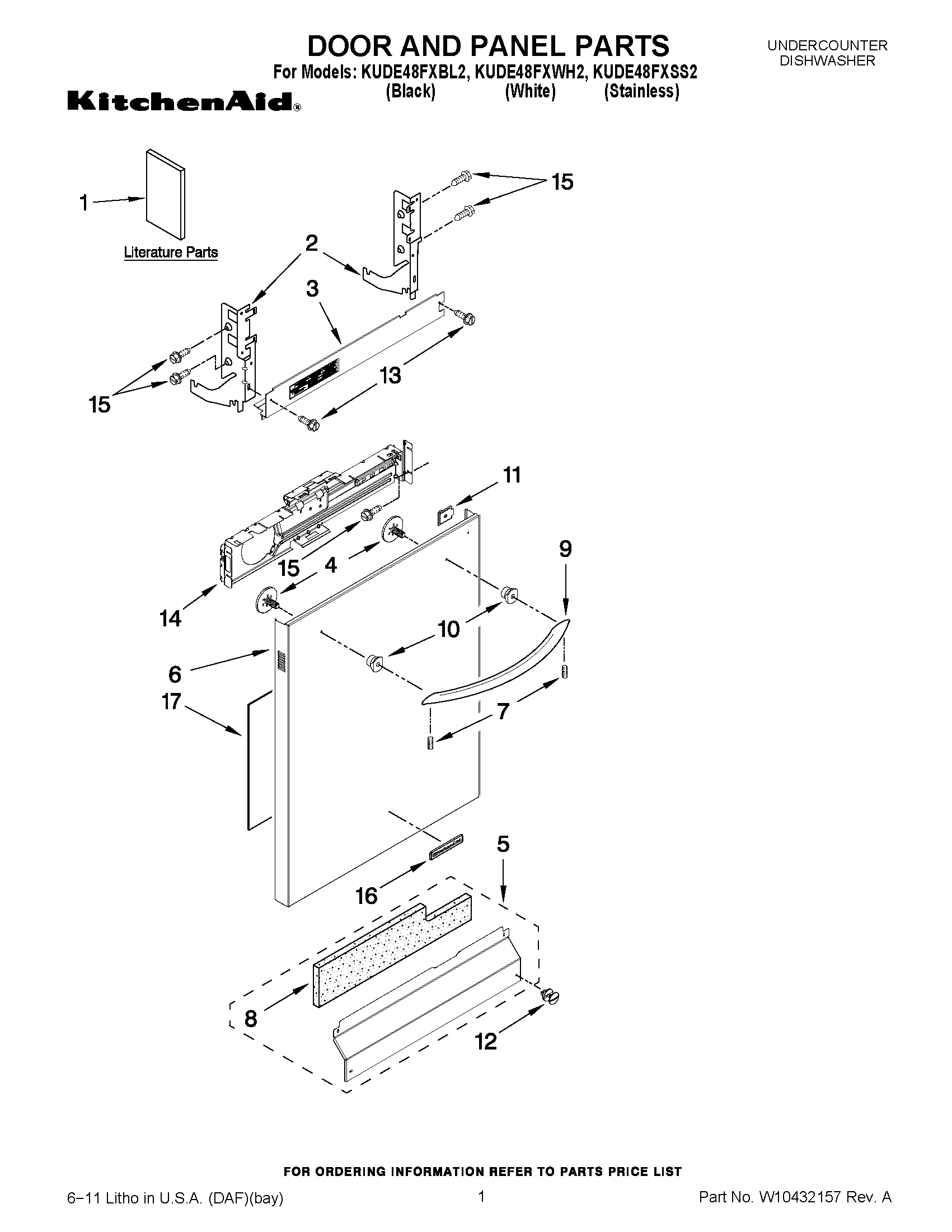

KUDE48FXBL2 01 – DOOR AND PANEL PARTSadmin2025-04-26T09:03:39+00:00KUDE48FXBL2 01 – DOOR AND PANEL PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10321621 |
| 1 | MAY W10395349 |
| 1 | GUIDE, USE & CARE (ENGLISH/FRENCH) |
| 1 | GUIDE, USE & CARE (SPANISH) |
| 1 | MAY W10195613 |
| 1 | MAY W10195614 |
| 2 | MAY 8534854 |
| 2 | MAY 8534853 |
| 3 | VAPOR BARRIER ASSEMBLY |
| 4 | MAY W10316572 |
| 5 | ACCESS PANEL (WHITE) |
| 5 | MAY W10369024 |
| 6 | PANEL, FULL FRONT (INCLUDES ITEMS 4, 10, 16 & 17) (BLACK) |
| 6 | PANEL, FULL FRONT (INCLUDES ITEMS 4, 10, 16 & 17) (WHITE) |
| 6 | PANEL, FULL FRONT (INCLUDES ITEMS 4, 10, 16 & 17) (STAINLESS) |
| 7 | MAY W10307614 |
| 8 | INSULATION, ACCESS PANEL |
| 9 | HANDLE ASSEMBLY (INCLUDES ITEM 7) (STAINLESS) |
| 9 | HANDLE ASSEMBLY (INCLUDES ITEM 7) (WHITE) |
| 9 | HANDLE ASSEMBLY (INCLUDES ITEM 7) (BLACK) |
| 10 | MAY W10195726 |
| 11 | LIGHT, PIPE |
| 12 | SCREW (BLACK) |
| 12 | SCREW (WHITE) |
| 13 | Screw |
| 14 | MAY W10194911 |
| 15 | SCREW |
| 16 | MAY W10243393 |
| 16 | MAY W10243392 |
| 16 | MAY W10243391 |
| 17 | INSULATION, FRONT PANEL |
