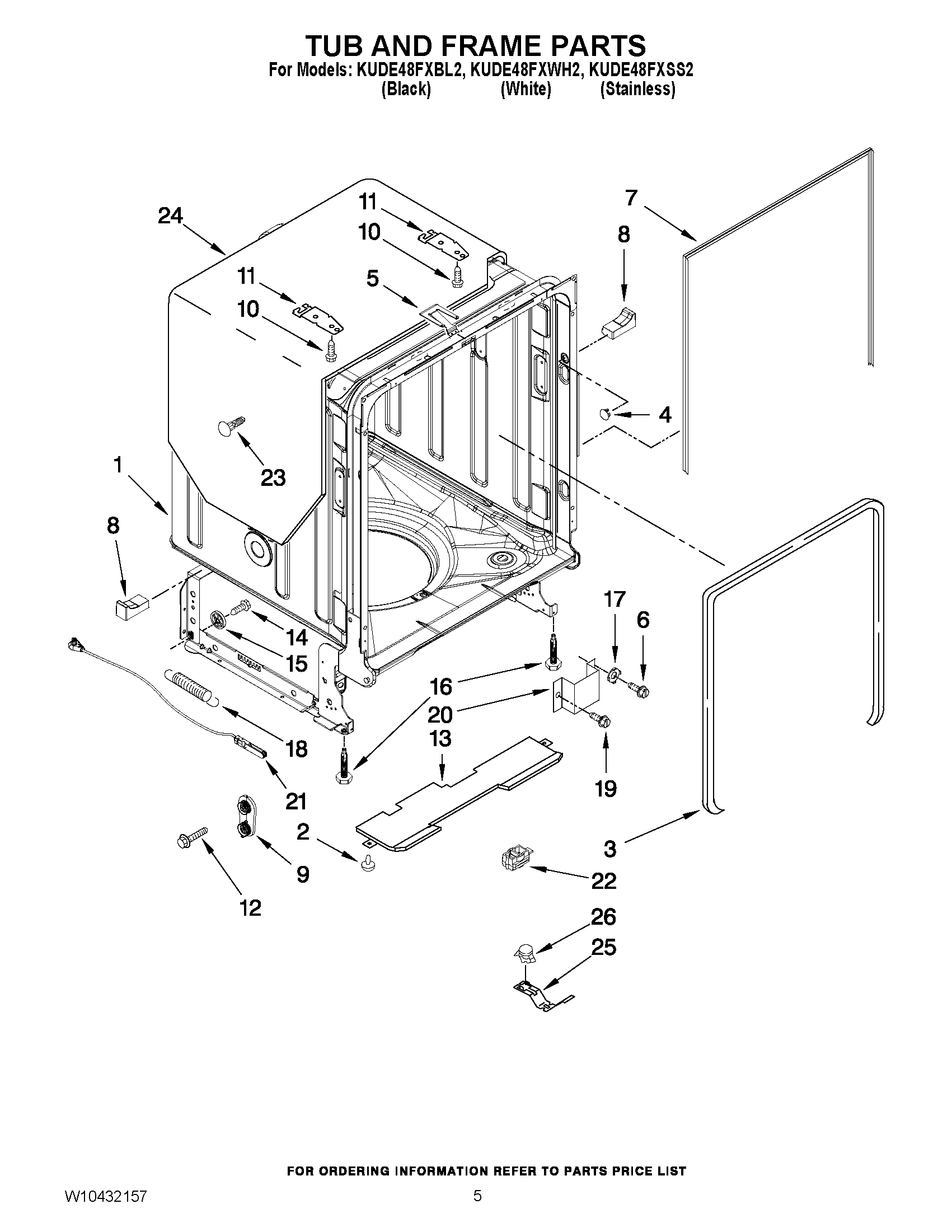

KUDE48FXBL2 05 – TUB AND FRAME PARTS

KUDE48FXBL2 05 – TUB AND FRAME PARTS

Written by

in

KUDE48FXBL2 05 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10390308
2MAY 3400924
3SEAL, DOOR
4MAY W10082838
5STRIKE, PLATE
6MAY 3400014
7SEAL, CABINET
8SPACER, TUB/BRACE (LEFT)
8SPACER, TUB/BRACE (RIGHT)
9DOOR BALANCE ASSEMBLY
10MAY 3367670
11MAY 8269145
12SCREW
13INSULATION BOTTOM
14MAY W10348411
15WHEEL, LEG
16MAY 8524584
17WASHER, PRONGED CUP
18MAY 8270020
19MAY 3400892
20MAY 8268991
21CABLE, DOOR ASSEMBLY
22MAY W10292870
23RETAINER, PUSH
24MAY 8573240
25MAY W10300703
26MAY W10195091
