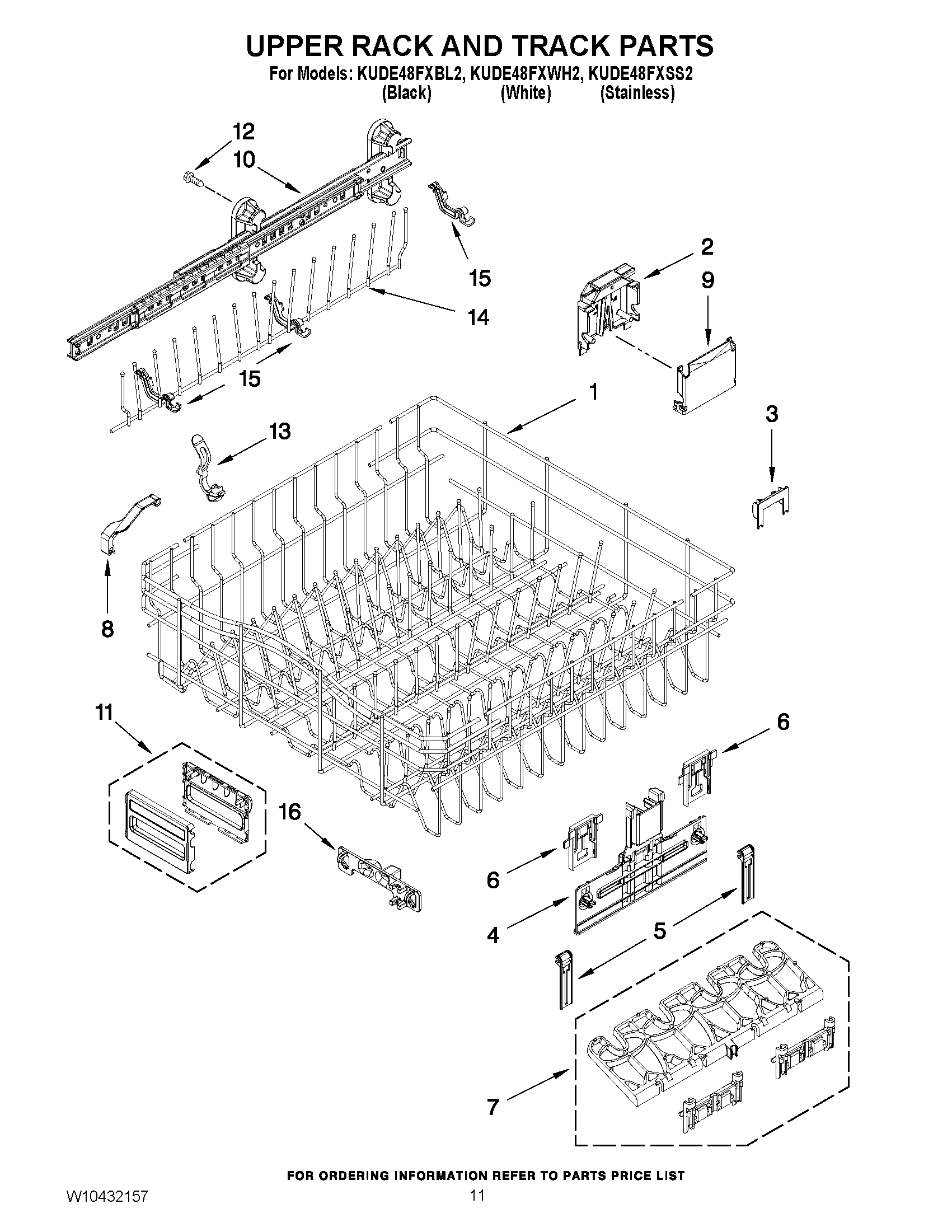

KUDE48FXBL2 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	MAY W10312791
2	MAY W10320664
2	MAY W10320665
3	CLIP-LOCK ADJUSTER ARM
4	MAY W10306646
5	MAY W10195839
6	POSITIONER, ADJUSTER
7	CUP, SHELFT
8	CLIP, DISPENSER GUARD
9	MAY W10250162
10	TRACK, ASSEMBLY (LAVA RAIL, RH)
10	TRACK, ASSEMBLY (LAVA RAIL, LH)
11	MAY W10282826
12	MAY W10309090
13	MAY W10077844
14	TINE-ROW
15	MAY W10082853
16	MAY 8539102
