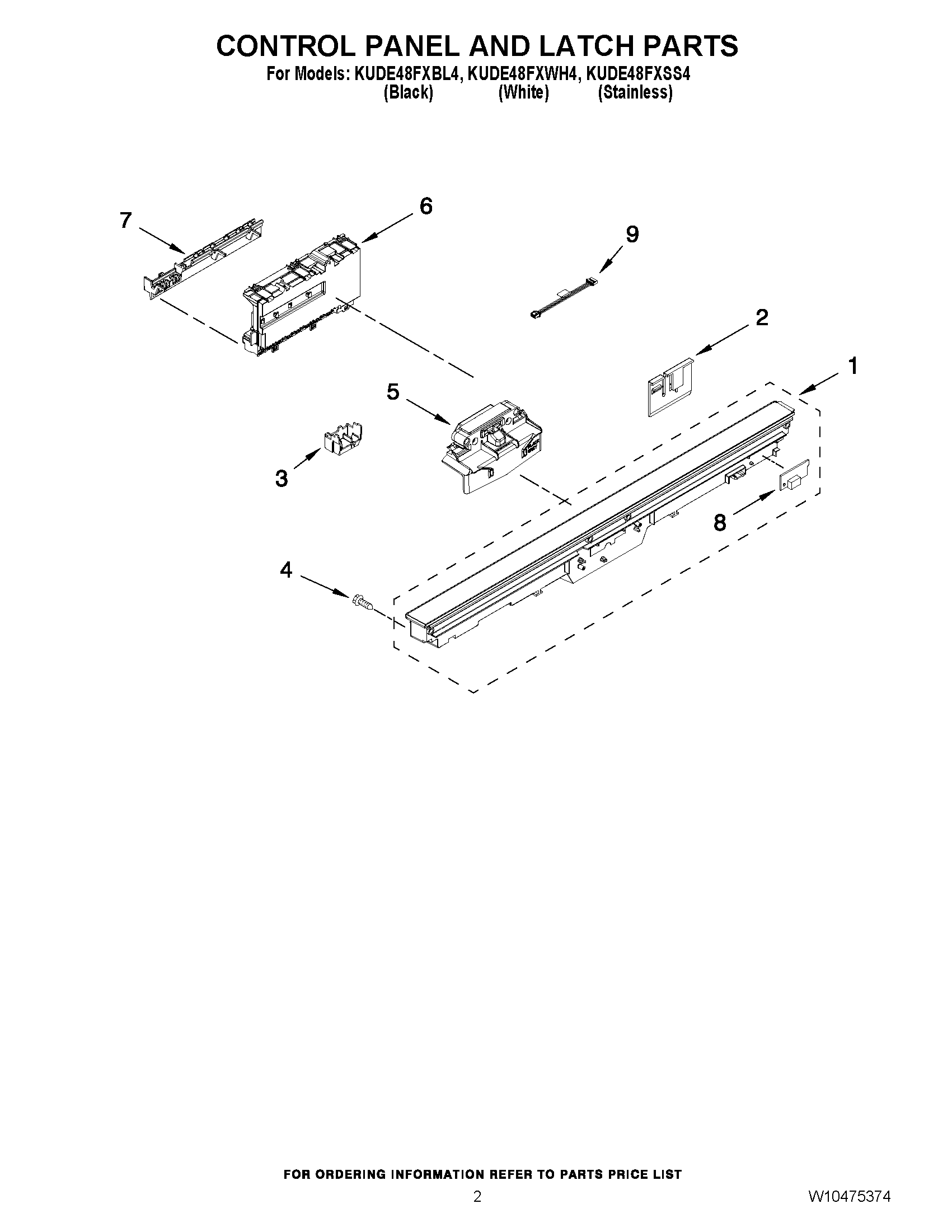

KUDE48FXBL4 02 – CONTROL PANEL AND LATCH PARTS

KUDE48FXBL4 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDE48FXBL4 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10481119 Whirlpool Dishwasher Control Panel
1WPW10481118 Whirlpool Dishwasher Control Panel
1WPW10481117 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10783730 Whirlpool Dishwasher Connector
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6W10473198 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8WPW10195836 Whirlpool Dishwasher Indicator Light
9WPW10195666 Whirlpool Dishwasher Wire Assembly
