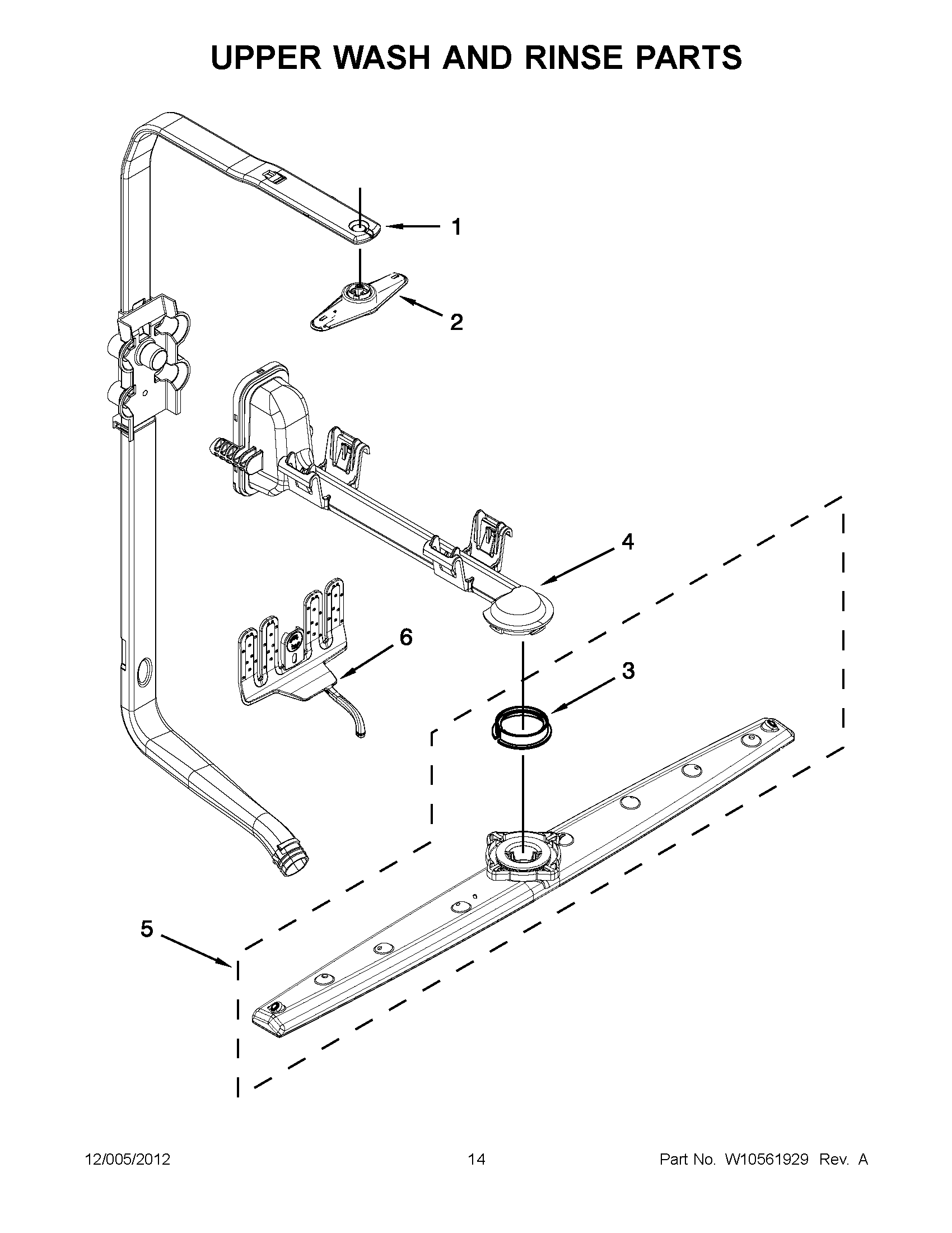

KUDE48FXBL5 07 – UPPER WASH AND RINSE PARTS

Written by

Products

Position	Product
1	WPW10340745 Whirlpool Water Feed Tube
2	WPW10327455 Whirlpool Dishwasher Spray Arm
3	SEAL, SPRAYARM
4	WPW10340542 Whirlpool Manifold
5	WPW10448645 Whirlpool Dishwasher Upper Spray Arm
6	WPW10353140 Whirlpool Dishwasher Manifold
