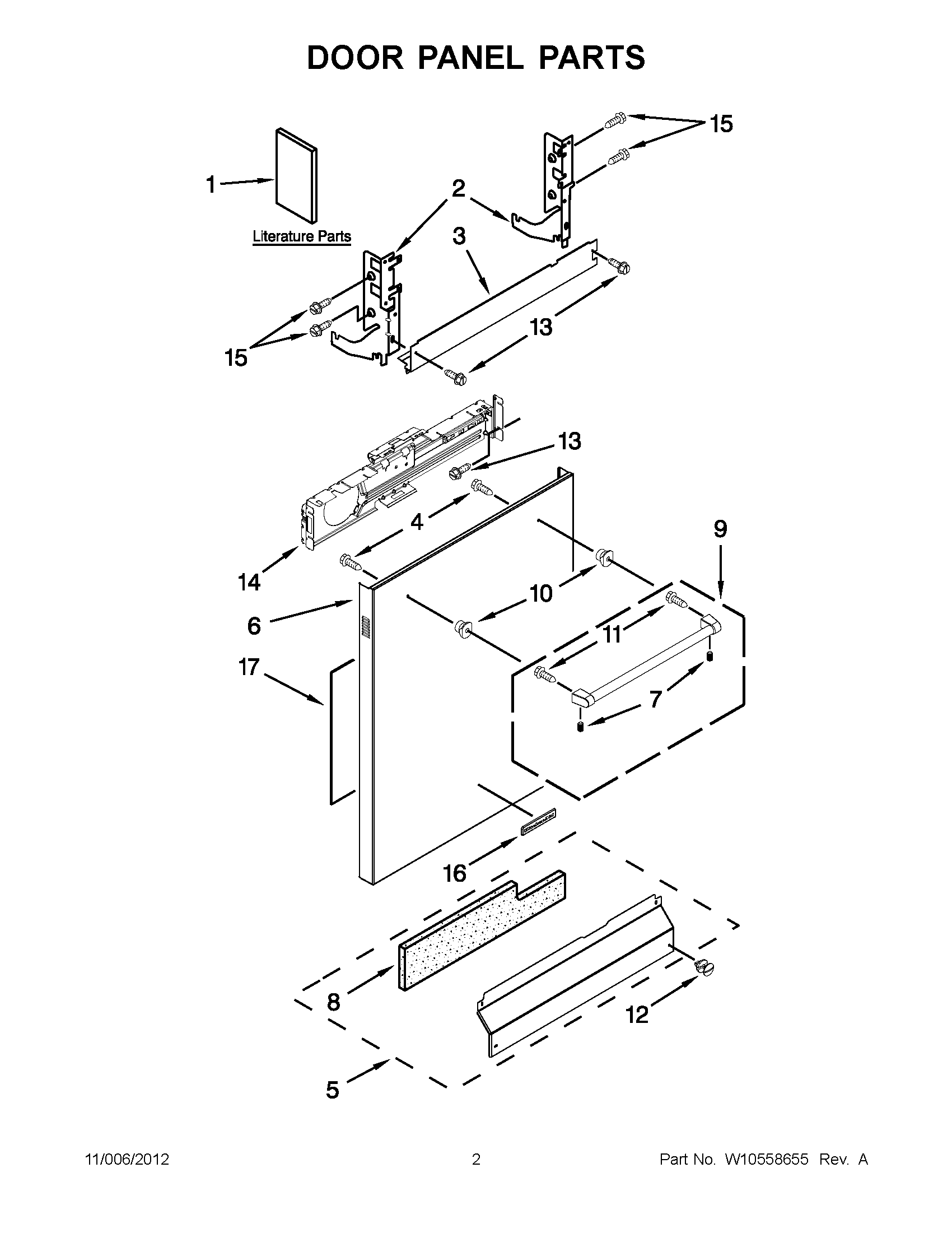

KUDE48FXSP5 01 – DOOR PANEL PARTS

KUDE48FXSP5 01 – DOOR PANEL PARTS

Written by

in

KUDE48FXSP5 01 – DOOR PANEL PARTS

Products

PositionProduct
1TECH SHEET, ENGLISH
1TECH SHEET, FRENCH
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE (SPANISH)
1INSTRUCTIONS, INSTALLATION
1ENERGY GUIDE
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5W10827631 Whirlpool Toe Panel
6WPW10195874 Whirlpool Dishwasher Panel
7W10320946 Whirlpool Dishwasher Screw
8SHIELD
9HANDLE ASSEMBLY (INCLUDES ITEM 7) (STAINLESS PRO)
10W11157086 Whirlpool Dishwasher Door Handle Stud
11Screw
12WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
13WP3390631 Whirlpool Screw
14W11116870 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16WPW10320959 Whirlpool Dishwasher Nameplate
17WPW10073520 Whirlpool Dishwasher Insulation Pad
