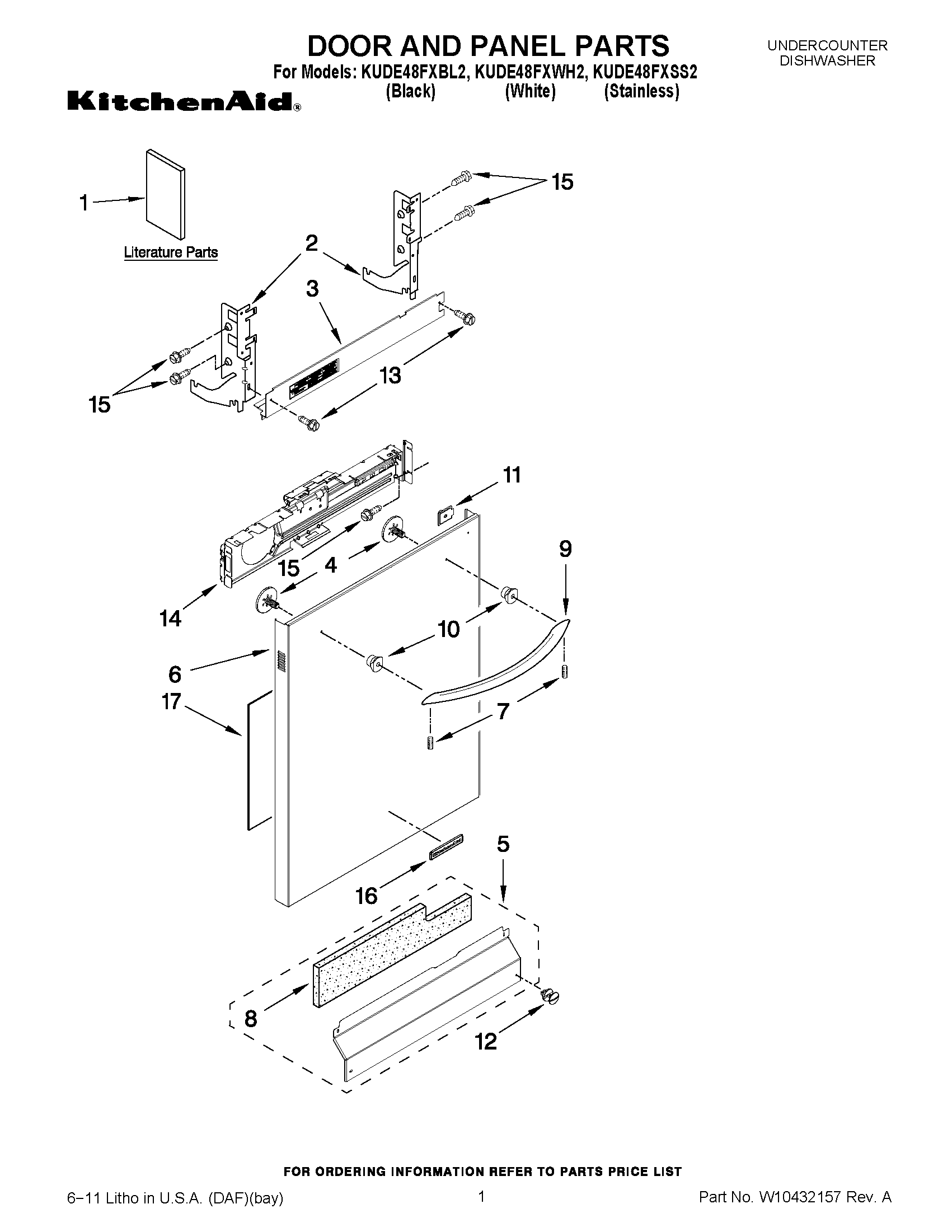

KUDE48FXSS2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10321621
1MAY W10395349
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1GUIDE, USE & CARE (SPANISH)
1MAY W10195613
1MAY W10195614
2MAY 8534854
2MAY 8534853
3VAPOR BARRIER ASSEMBLY
4MAY W10316572
5ACCESS PANEL (WHITE)
5MAY W10369024
6PANEL, FULL FRONT (INCLUDES ITEMS 4, 10, 16 & 17) (BLACK)
6PANEL, FULL FRONT (INCLUDES ITEMS 4, 10, 16 & 17) (WHITE)
6PANEL, FULL FRONT (INCLUDES ITEMS 4, 10, 16 & 17) (STAINLESS)
7MAY W10307614
8INSULATION, ACCESS PANEL
9HANDLE ASSEMBLY (INCLUDES ITEM 7) (STAINLESS)
9HANDLE ASSEMBLY (INCLUDES ITEM 7) (WHITE)
9HANDLE ASSEMBLY (INCLUDES ITEM 7) (BLACK)
10MAY W10195726
11LIGHT, PIPE
12SCREW (BLACK)
12SCREW (WHITE)
13Screw
14MAY W10194911
15SCREW
16MAY W10243393
16MAY W10243392
16MAY W10243391
17INSULATION, FRONT PANEL
