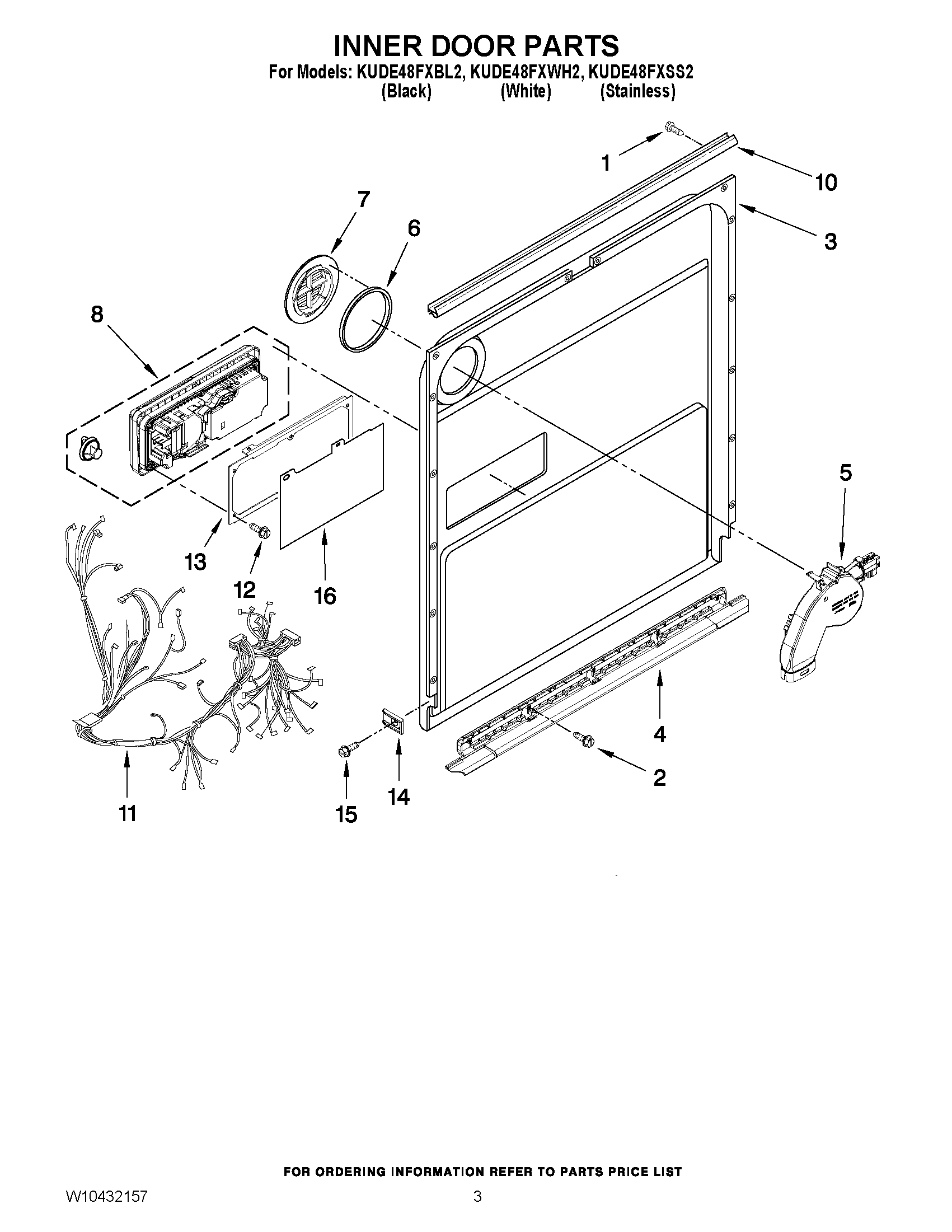

KUDE48FXSS2 03 – INNER DOOR PARTS

Written by

Products

Position	Product
1	SCREW
2	MAY 8281217
3	MAY W10195604
4	SEAL, DOOR BOTTOM
5	MAY W10195031
6	MAY 8269259
7	DEFLECTOR, VENT (ALSO ORDER ITEM 6)
8	MAY W10304408
10	MAY W10195007
11	MAY W10416586
12	MAY W10177098
13	BRACKET, DISPENSER
14	BARRIER, VAPOR DOOR
15	SCREW
16	MAY W10385977
