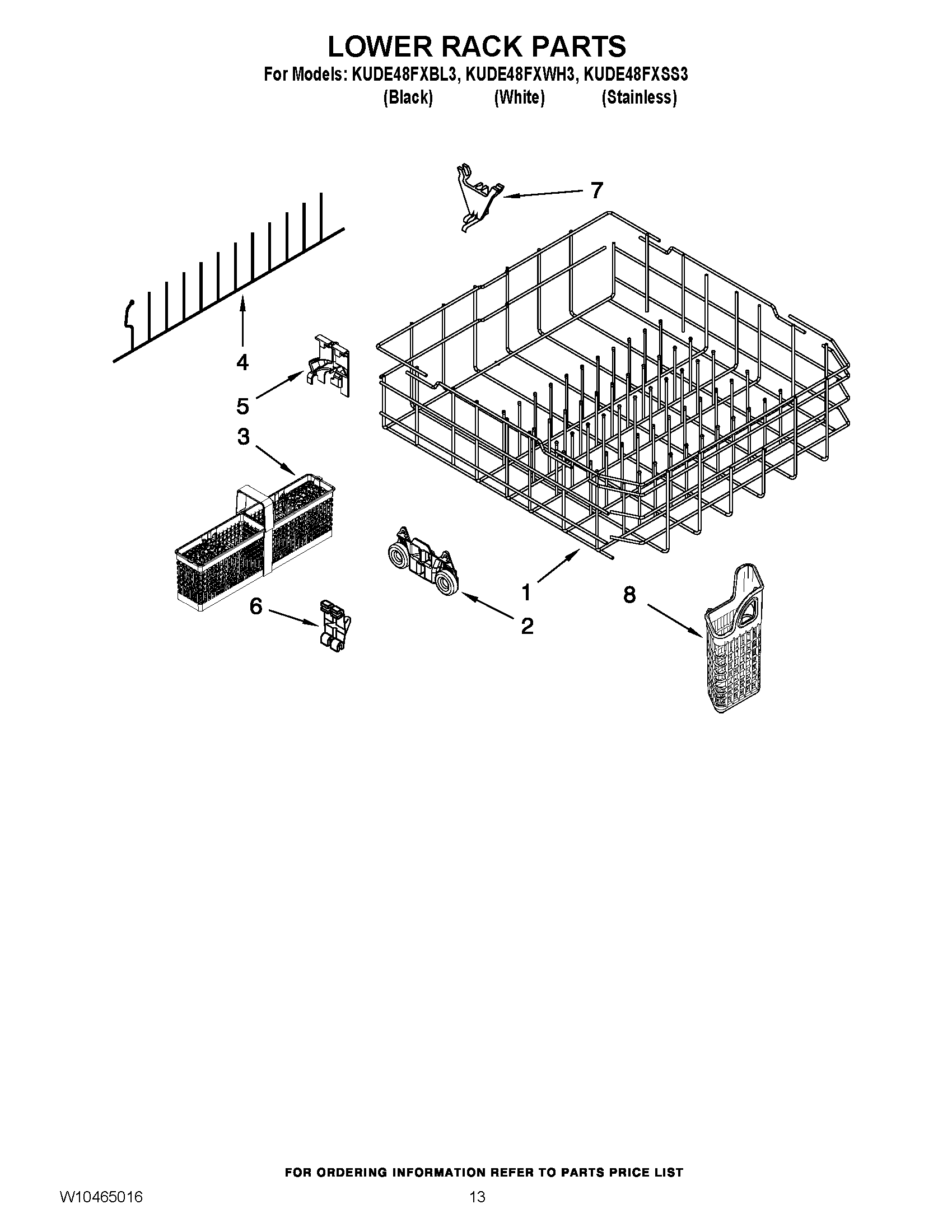

KUDE48FXSS3 10 – LOWER RACK PARTS

Products

Position	Product
1	W10728159 Whirlpool Dishwasher Lower Dishrack Assembly
2	W10195416V Whirlpool Dishwasher Roller Wheel Assembly
3	WPW10473836 Whirlpool Silverware Basket
4	W10728160 Whirlpool Tine Assembly
5	WPW10078215 Whirlpool Dishwasher Tine Row Combo Retainer
6	WPW10175279 Whirlpool Retainer
7	WPW10078227 Whirlpool Dishwasher Pivot Tine
8	WPW10482109 Whirlpool Dishwasher Basket Ware
