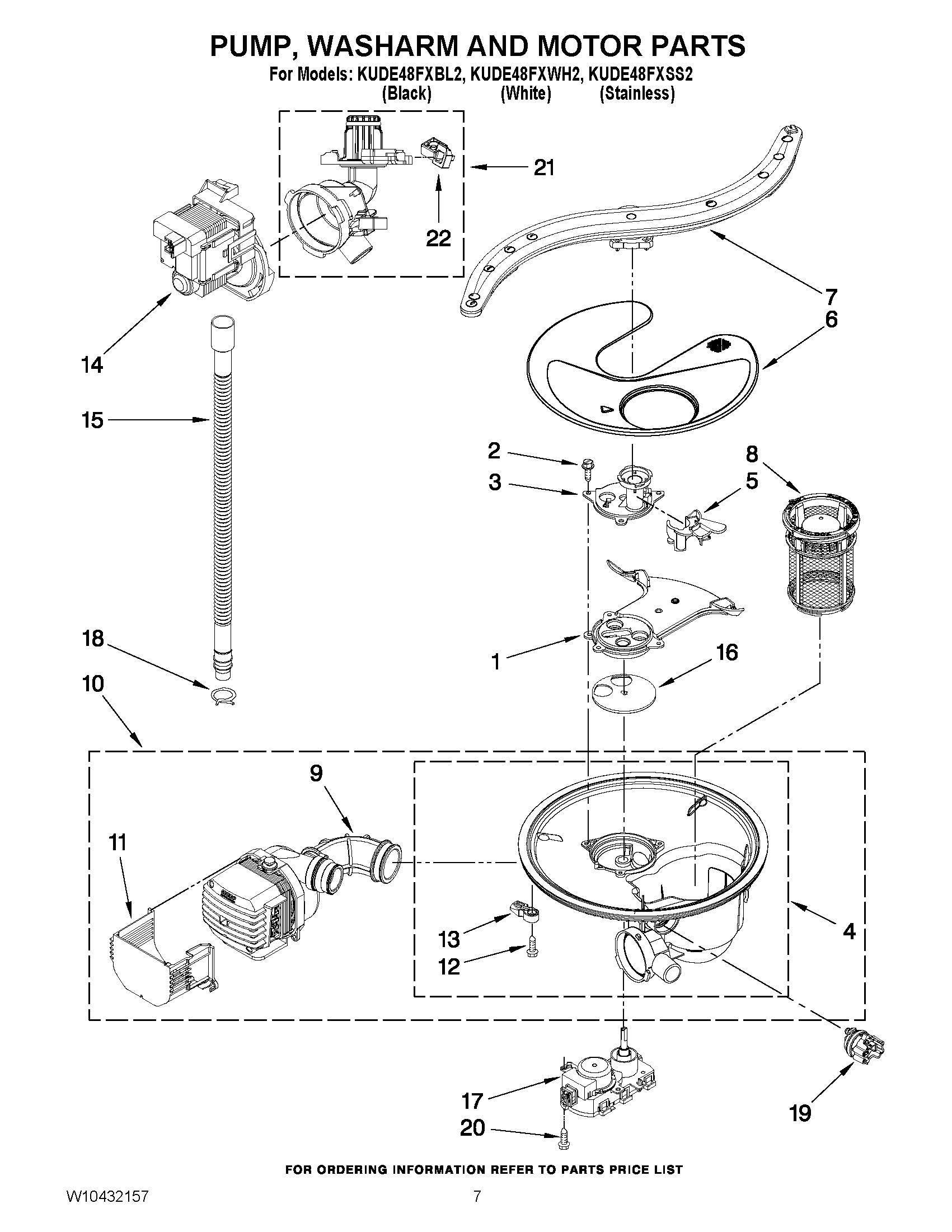

KUDE48FXWH2 06 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	MAY 8579241
2	MAY W10348405
3	MAY W10311176
4	SUMP WITH SEAL (INCLUDES ITEMS 12, 13 AND 2 HOSE CLAMPS)
5	MAY 8579298
6	MAY 8579253
7	MAY W10320512
8	MAY W10056426
9	MAY 8579311
10	MAY W10328224
11	MAY 8579272
12	MAY W10348407
13	MAY 8579289
14	MAY W10158351
15	MAY 8269144
16	MAY 8579251
17	MAY W10056349
18	HOSE CLAMP
19	MAY W10134017
20	MAY 9741232
21	DE-COUPLED DRAIN ASSEMBLY
22	MAY W10179454
