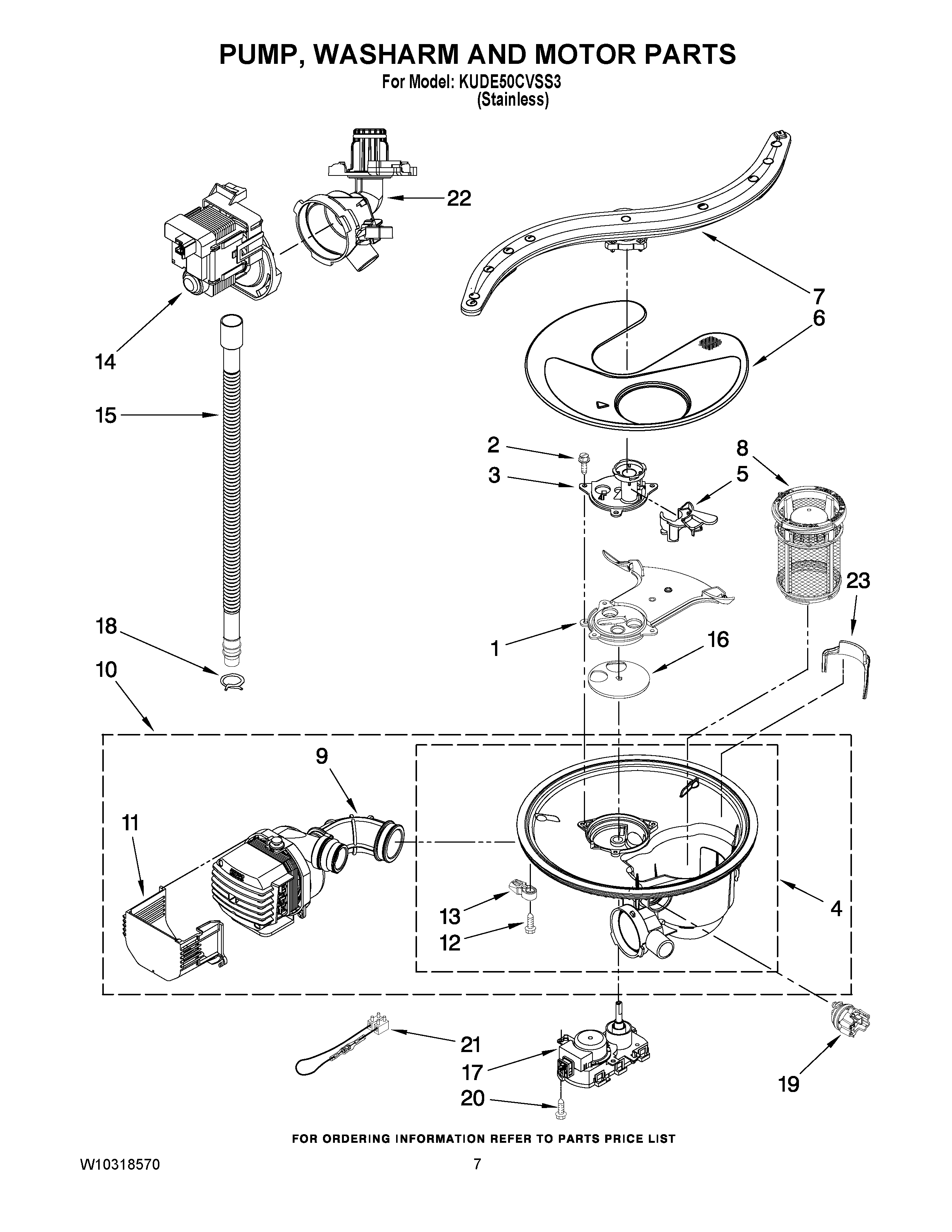

KUDE50CVSS3 06 – PUMP, WASHARM AND MOTOR PARTS

KUDE50CVSS3 06 – PUMP, WASHARM AND MOTOR PARTS

Written by

in

KUDE50CVSS3 06 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1Cover, Sieve
2Screw
3Cover, Outlet
4W10168822 Whirlpool Dishwasher Sump Assembly
5Retainer, Feed Tube
6WP8579253 Whirlpool Screen Filter
7ARM-SPRAY
8W10872845 Whirlpool Dishwasher Filter Cup Trap
9Hose, Inlet (Includes 3 Hose Clamps)
10WPW10056309 Whirlpool Dishwasher Motor & Pump
118579272 Whirlpool Shield
12WPW10348407 Whirlpool Dishwasher Screw
13WPW10372113 Whirlpool Dishwasher Sump Tab
14WPW10348269 Whirlpool Washer Drain Pump
158269144A Whirlpool Dishwasher Drain Hose
16Disc-Valve Diverter
17MOTOR-DIVERTER DW
18WP356138 Whirlpool Hose Clamp
19WPW10705575 Whirlpool Dishwasher Sensor
20WP9741232 Whirlpool Dishwasher Screw
21WPW10083167 Whirlpool Dishwasher Wire Harness
22WPW10179455 Whirlpool Housing Drain Pump
23W10056308 Whirlpool Baffle
