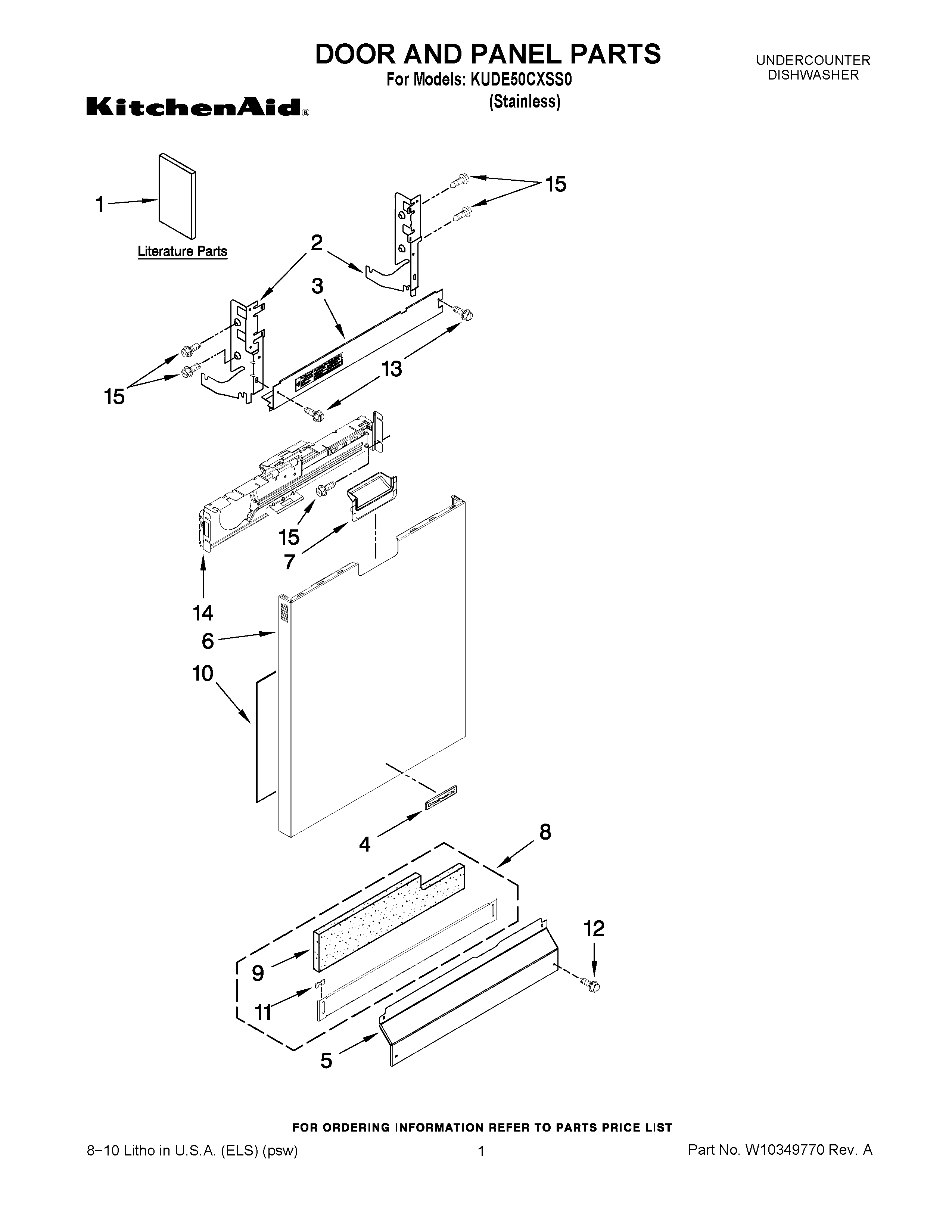

KUDE50CXSS0 01 – DOOR AND PANEL PARTS

KUDE50CXSS0 01 – DOOR AND PANEL PARTS

Written by

in

KUDE50CXSS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1TECH SHEET/FRENCH
1TECH SHEET/ENGLISH
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1INSTRUCTIONS, INSTALLATION
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10243391 Whirlpool Refrigerator Nameplate
6WPW10195531 Whirlpool Dishwasher Panel
7W10563099 Whirlpool Dishwasher Pocket Handle
8W10909064 Whirlpool Dishwasher Black Access Panel
9SHIELD
10W11126003 Whirlpool Dishwasher Insulation Pad
11WP8269016 Whirlpool Clip Assembly
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14W11116870 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
