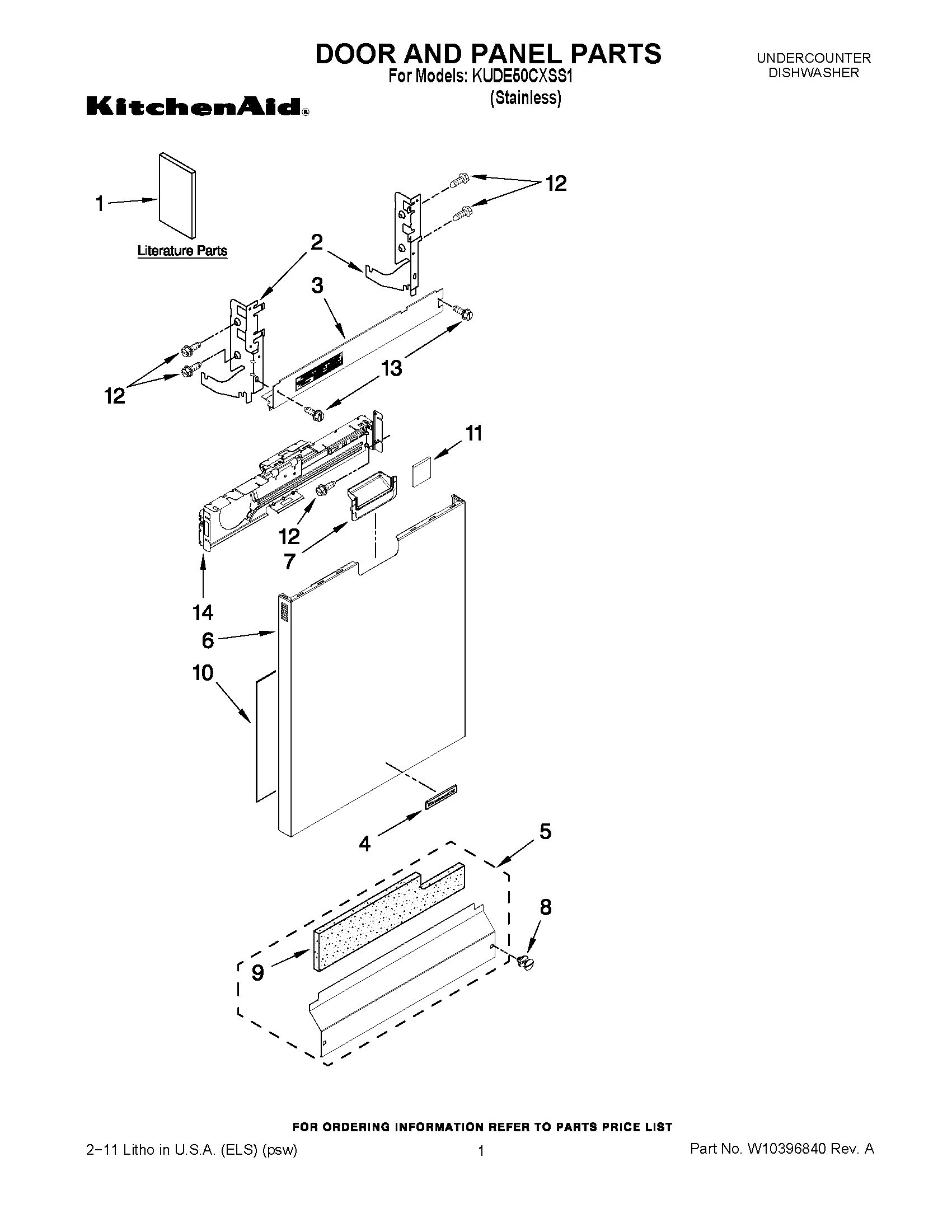

KUDE50CXSS1 01 – DOOR AND PANEL PARTS

KUDE50CXSS1 01 – DOOR AND PANEL PARTS

Written by

in

KUDE50CXSS1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1GUIDE, USE & CARE (SPANISH)
1TECH SHEET/ENGLISH
1TECH SHEET/FRENCH
1GUIDE, USE & CARE (SPANISH)
1INSTRUCTIONS, INSTALLATION
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10243391 Whirlpool Refrigerator Nameplate
5WPW10526114 Whirlpool Dishwasher Access Panel
6WPW10195531 Whirlpool Dishwasher Panel
7W10563099 Whirlpool Dishwasher Pocket Handle
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9SHIELD
10W11126003 Whirlpool Dishwasher Insulation Pad
11BLOCK, FOAM
12WP3400071 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14W11116870 Whirlpool Dishwasher Control Bracket
