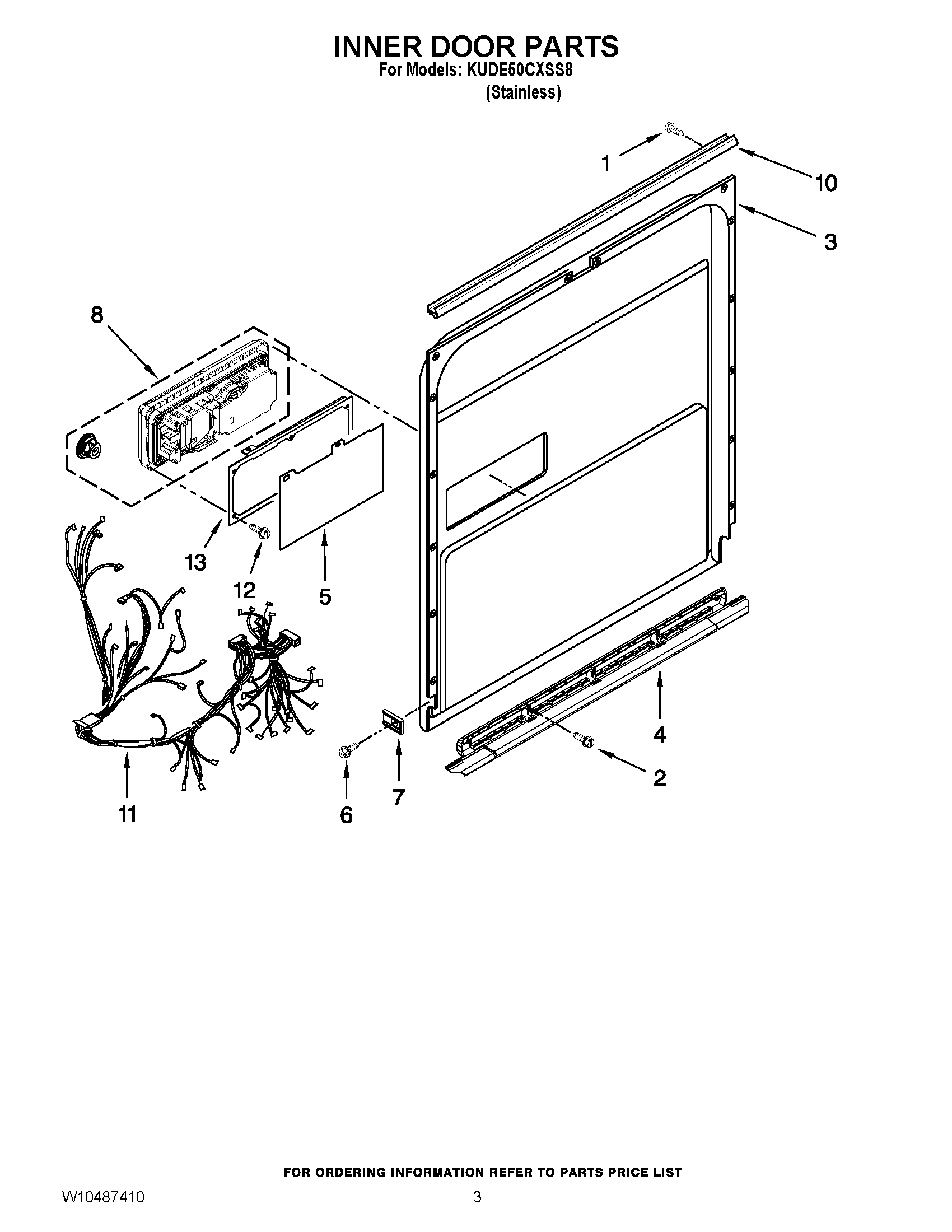

KUDE50CXSS8 03 – INNER DOOR PARTS

KUDE50CXSS8 03 – INNER DOOR PARTS

Written by

in

KUDE50CXSS8 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3WPW10480716 Whirlpool Dishwasher Inner Door Assembly
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5W10385977 Whirlpool Dishwasher Cover Assembly
6WP3400071 Whirlpool Screw
7W10195837 Whirlpool Dishwasher Barrier
8DISPENSER (DISHWASHER)
10WPW10195007 Whirlpool Dishwasher Seal
11WIRING HARNESS
12WPW10177098 Whirlpool Dishwasher Screw
13WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
