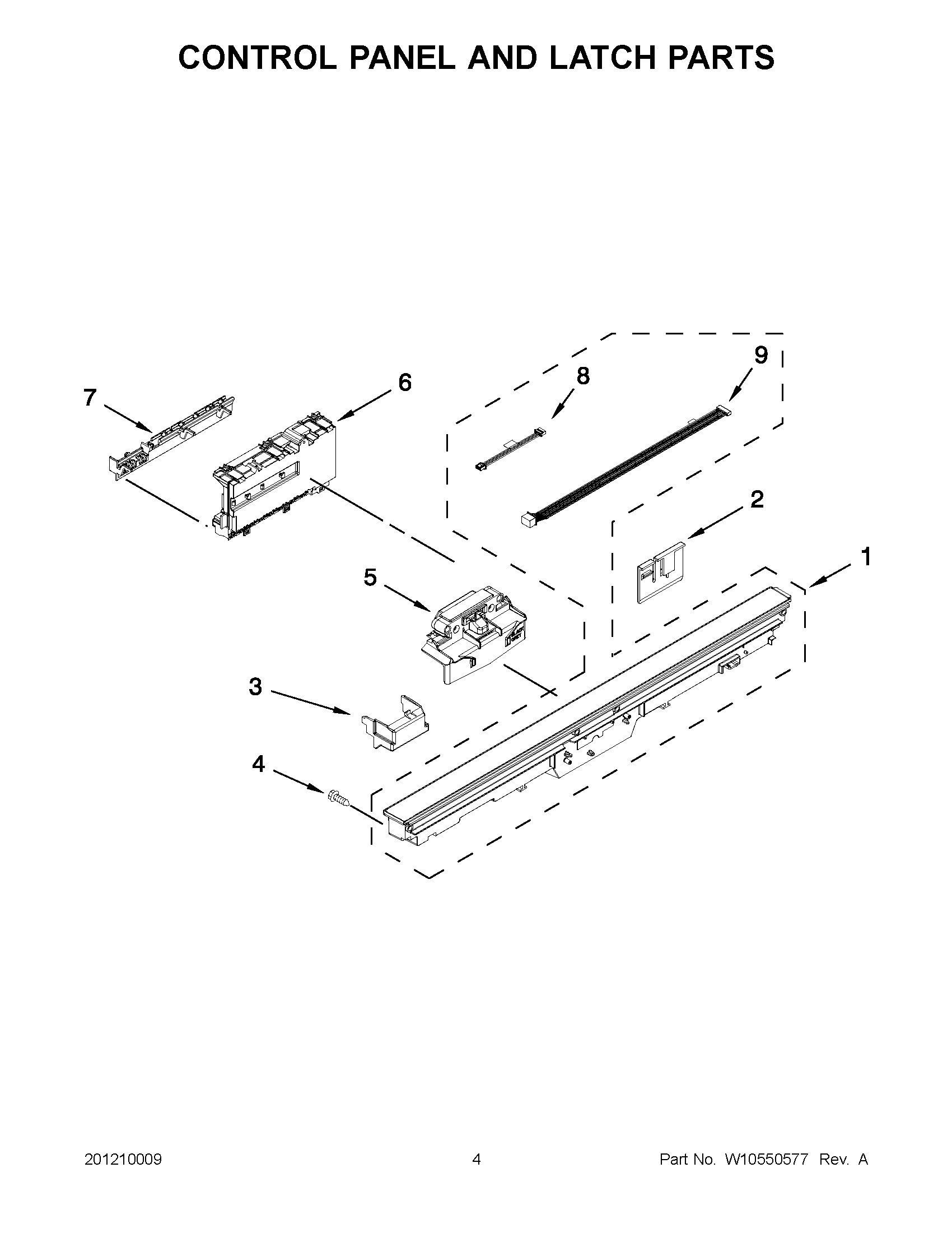

KUDE50FBSS0 02 – CONTROL PANEL AND LATCH PARTS

KUDE50FBSS0 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDE50FBSS0 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (APOLLO GREY)
2W11256107 Whirlpool Dishwasher Clip
3WPW10462393 Whirlpool Dishwasher Connector
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6W10866118 Whirlpool Dishwasher Electronic Control Board
7WPW10462395 Whirlpool Dishwasher Brace
8W10315814 Whirlpool Dishwasher Wire Harness
9WPW10195204 Whirlpool Dishwasher Wire
