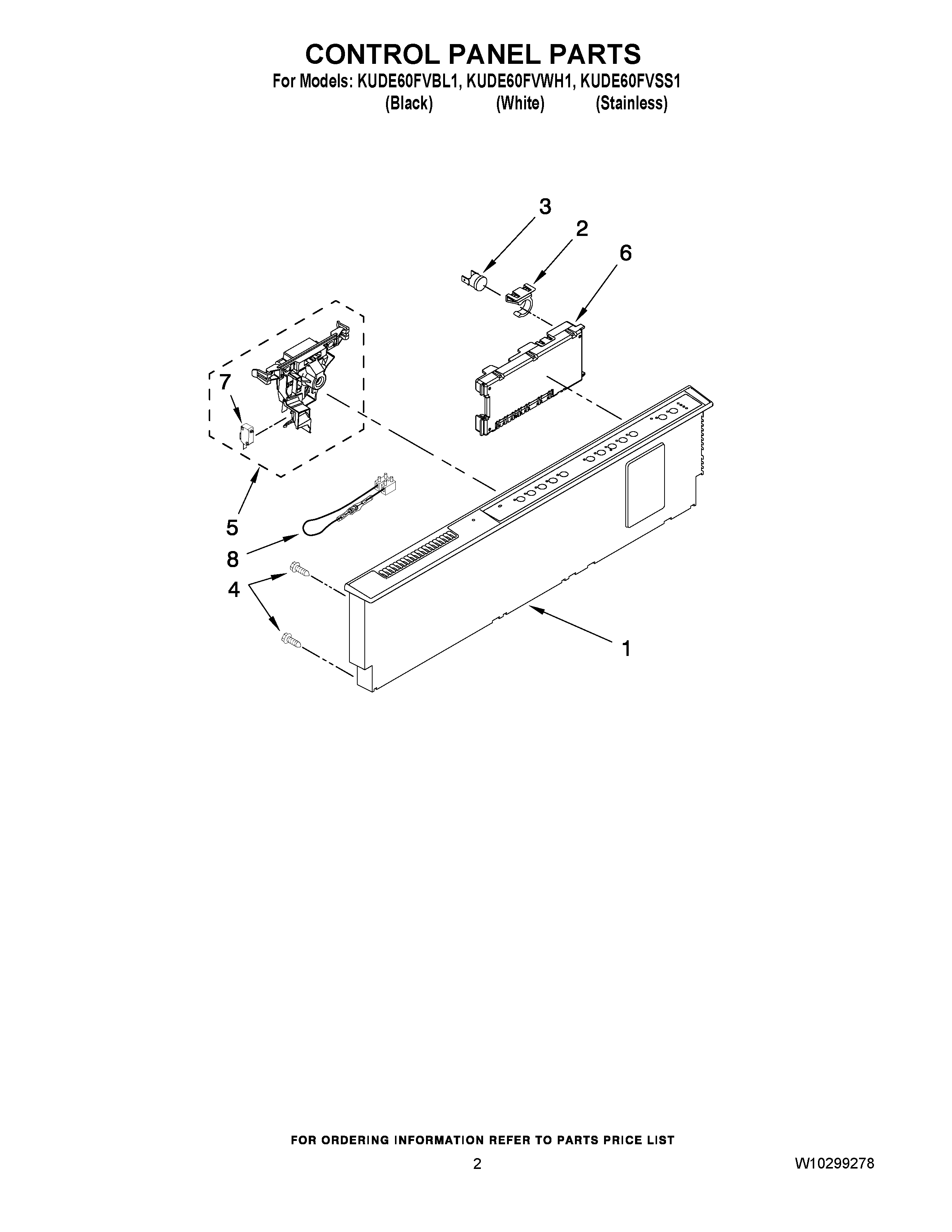

KUDE60FVBL1 02 – CONTROL PANEL PARTS

KUDE60FVBL1 02 – CONTROL PANEL PARTS

Written by

in

KUDE60FVBL1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES INSERT) (MIDNIGHT GREY)
1Console Assembly (Includes Insert) (White)
1Console Assembly (Includes Insert) (Black)
2Clip, BI-Metal
3W10258275 Whirlpool Dishwasher Bimetal Fuse
4WPW10348409 Whirlpool Screw
5WPW10404412 Whirlpool Door Latch
6WPW10285178-includeCORE Whirlpool WPW10285178 Dishwasher Electronic Control Board
7WPW10134019 Whirlpool Dishwasher Switch
8WPW10083167 Whirlpool Dishwasher Wire Harness
