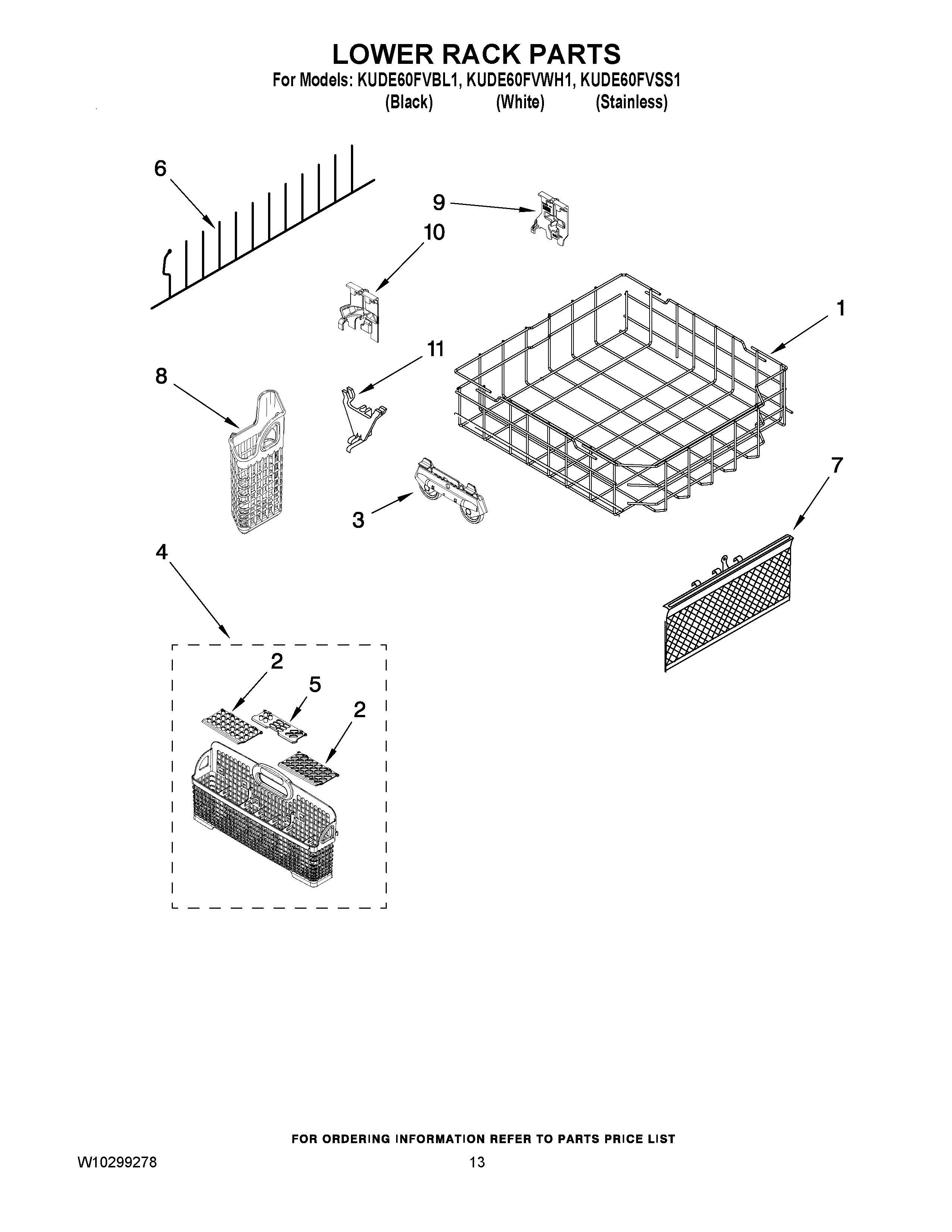

KUDE60FVBL1 10 – LOWER RACK PARTS

KUDE60FVBL1 10 – LOWER RACK PARTS

Written by

in

KUDE60FVBL1 10 – LOWER RACK PARTS

Products

PositionProduct
1W10728159 Whirlpool Dishwasher Lower Dishrack Assembly
28519663 Whirlpool Dishwasher Cover Assembly
28519695 Whirlpool Dishwasher Basket Cover
3WPW10082868 Whirlpool Wheel
4WPW10190415 Whirlpool Dishwasher Basket Ware
58519662 Whirlpool Dishwasher Lid
6W10728160 Whirlpool Tine Assembly
7BASKET, SMALL ITEMS
8BASKET, UTENSIL
9WPW10175279 Whirlpool Retainer
10WPW10078215 Whirlpool Dishwasher Tine Row Combo Retainer
11WPW10078227 Whirlpool Dishwasher Pivot Tine
