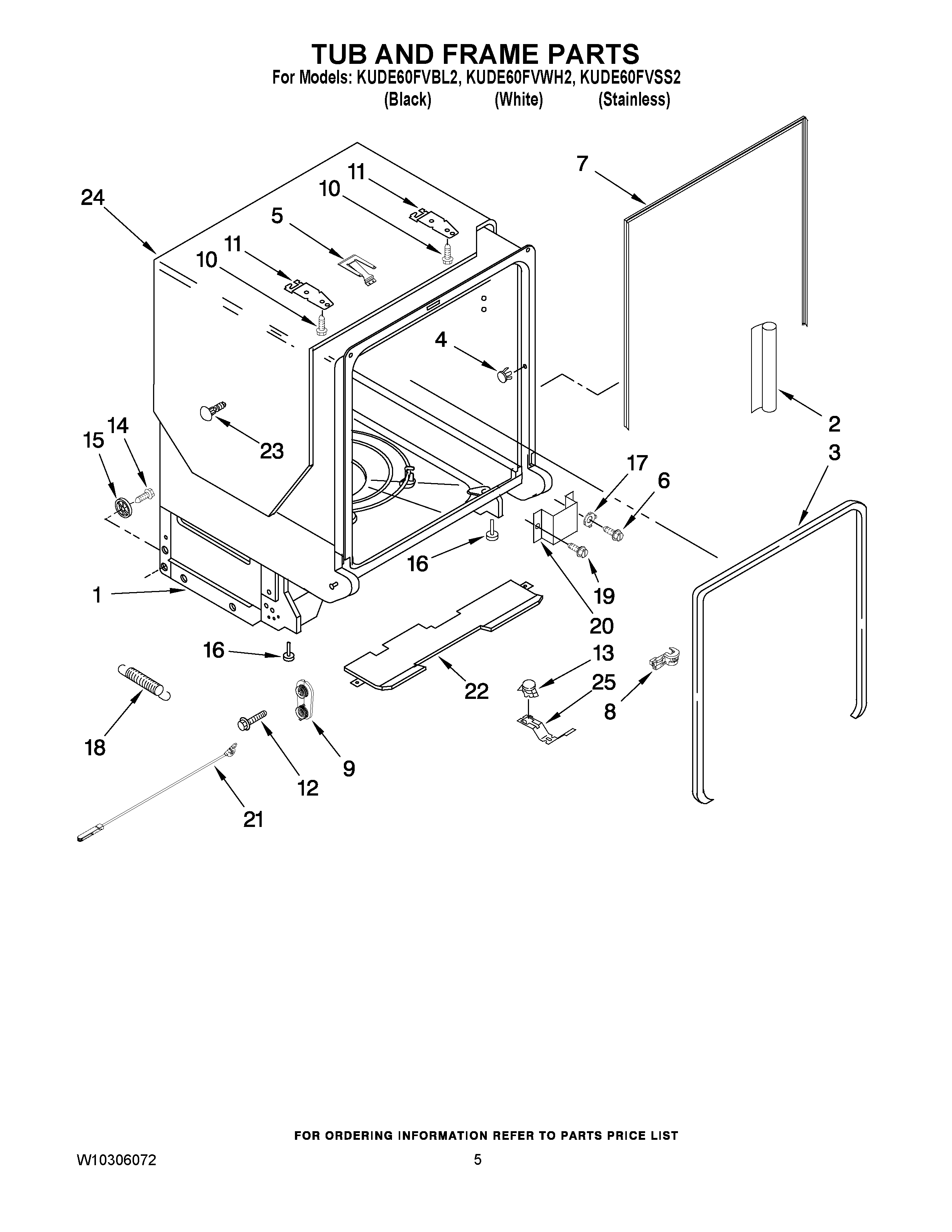

KUDE60FVBL2 05 – TUB AND FRAME PARTS

KUDE60FVBL2 05 – TUB AND FRAME PARTS

Written by

in

KUDE60FVBL2 05 – TUB AND FRAME PARTS

Products

PositionProduct
1TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2Barrier, Moisture Undercounter
3W11196317 Whirlpool Dishwasher Door Gasket
4W10795980 Whirlpool Cap
5Strike, Latch
6WP3400014 Whirlpool Dishwasher Screw
7SEAL
8W11384788 Whirlpool Dishwasher Relief Strainer
9WPW10084086 Whirlpool Dishwasher Mount
10WP308685 Whirlpool Microwave Screw
11WP8269145 Whirlpool Dishwasher Mounting Bracket
12WP3400074 Whirlpool Dishwasher Screw
13WP661566 Whirlpool High Limit Thermostat
14Screw (2)
15WP8268977 Whirlpool Dishwasher Wheel
168193716 Whirlpool Leveling Leg
17WP3378128 Whirlpool Dishwasher Washer
18SPRING
19WP3400892 Whirlpool Dishwasher Screw
20WP8268991 Whirlpool Dishwasher Cover Assembly
218194001 Whirlpool Dishwasher Door Balance Link Kit
22WPW10746770 Whirlpool Insulation Pad
23WP304666 Whirlpool Dishwasher Retainer
24W10877094 Whirlpool Shield
259742648 Whirlpool Dishwasher Stat Bracket
