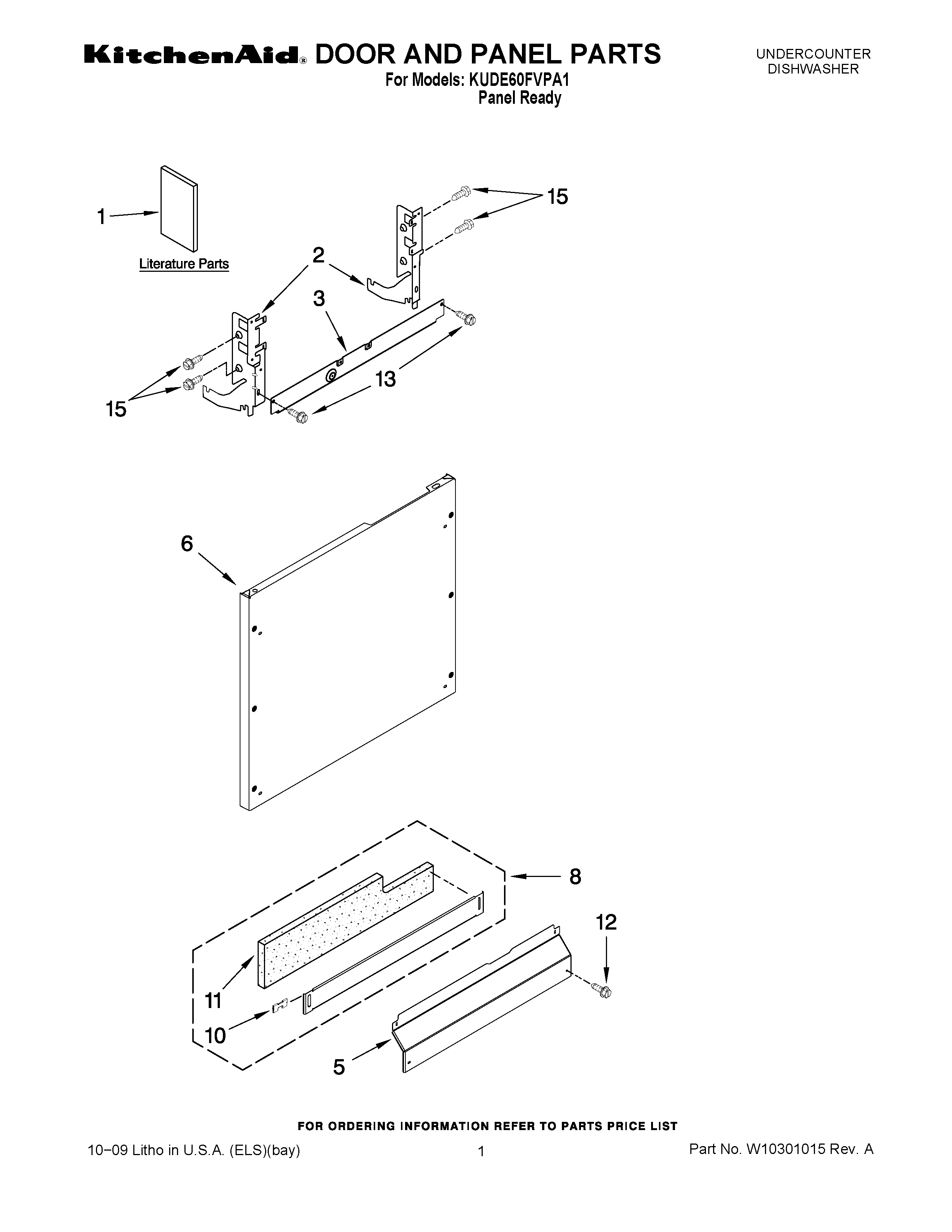

KUDE60FVPA1 01 – DOOR AND PANEL PARTS

KUDE60FVPA1 01 – DOOR AND PANEL PARTS

Written by

in

KUDE60FVPA1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1INSTRUCTIONS, INSTALLATION
1TECH SHEET (ENGLISH)
1TECH SHEET (FRENCH)
1Guide, Use & Care English
1GUIDE, USE & CARE (SPANISH)
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
5W10909064 Whirlpool Dishwasher Black Access Panel
6W11113792 Whirlpool Dishwasher Panel
10WP8269016 Whirlpool Clip Assembly
11SHIELD
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
