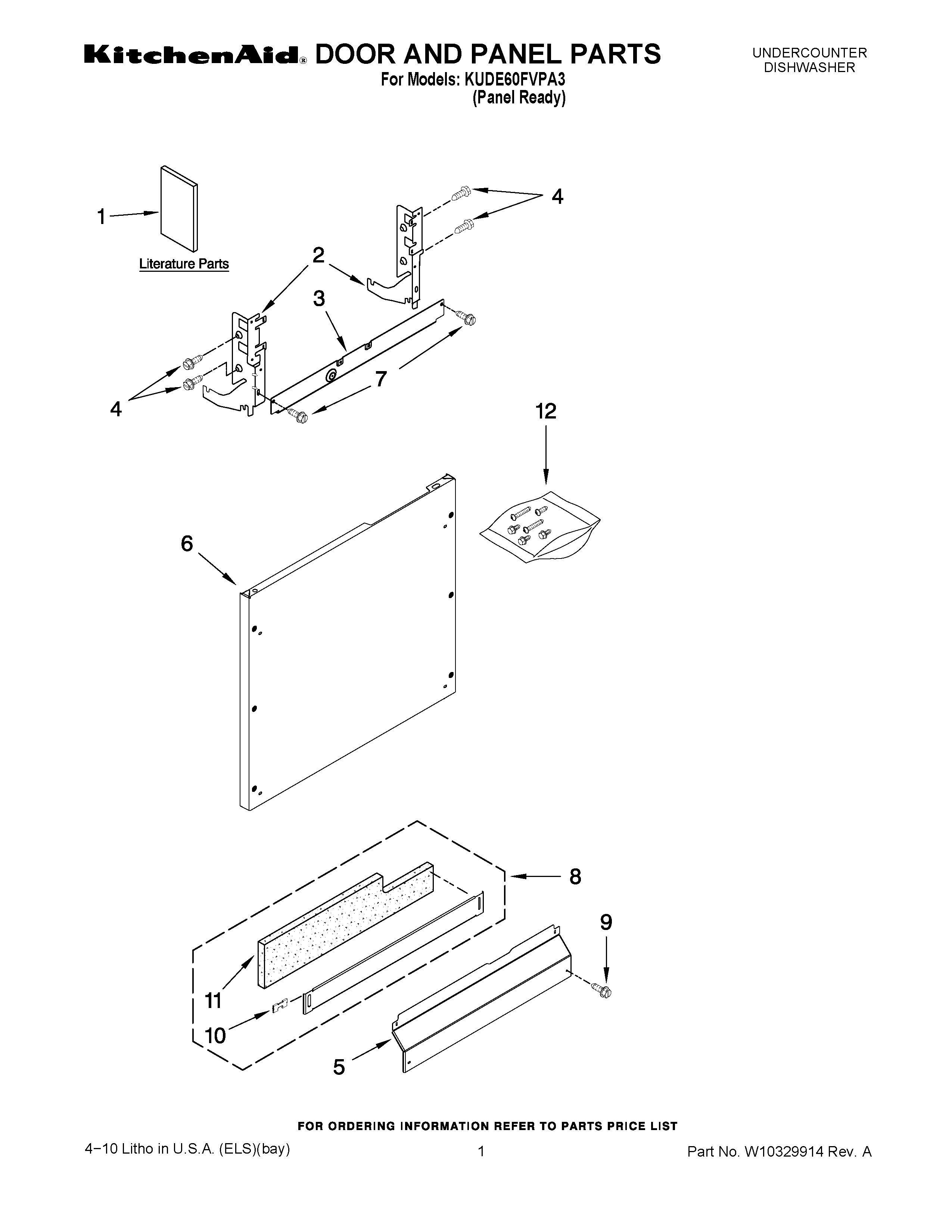

KUDE60FVPA3 01 – DOOR AND PANEL PARTS

KUDE60FVPA3 01 – DOOR AND PANEL PARTS

Written by

in

KUDE60FVPA3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1TECH SHEET (ENGLISH)
1TECH SHEET (FRENCH)
1INSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE ENGLISH/FRENCH
1GUIDE, USE & CARE SPANISH
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WP3400071 Whirlpool Screw
5W10909064 Whirlpool Dishwasher Black Access Panel
6W11113792 Whirlpool Dishwasher Panel
7WP489069 Whirlpool Compactor Screw
9WP302868 Whirlpool Screw
10WP8269016 Whirlpool Clip Assembly
11SHIELD
12Screws, Bag Door Assembly
