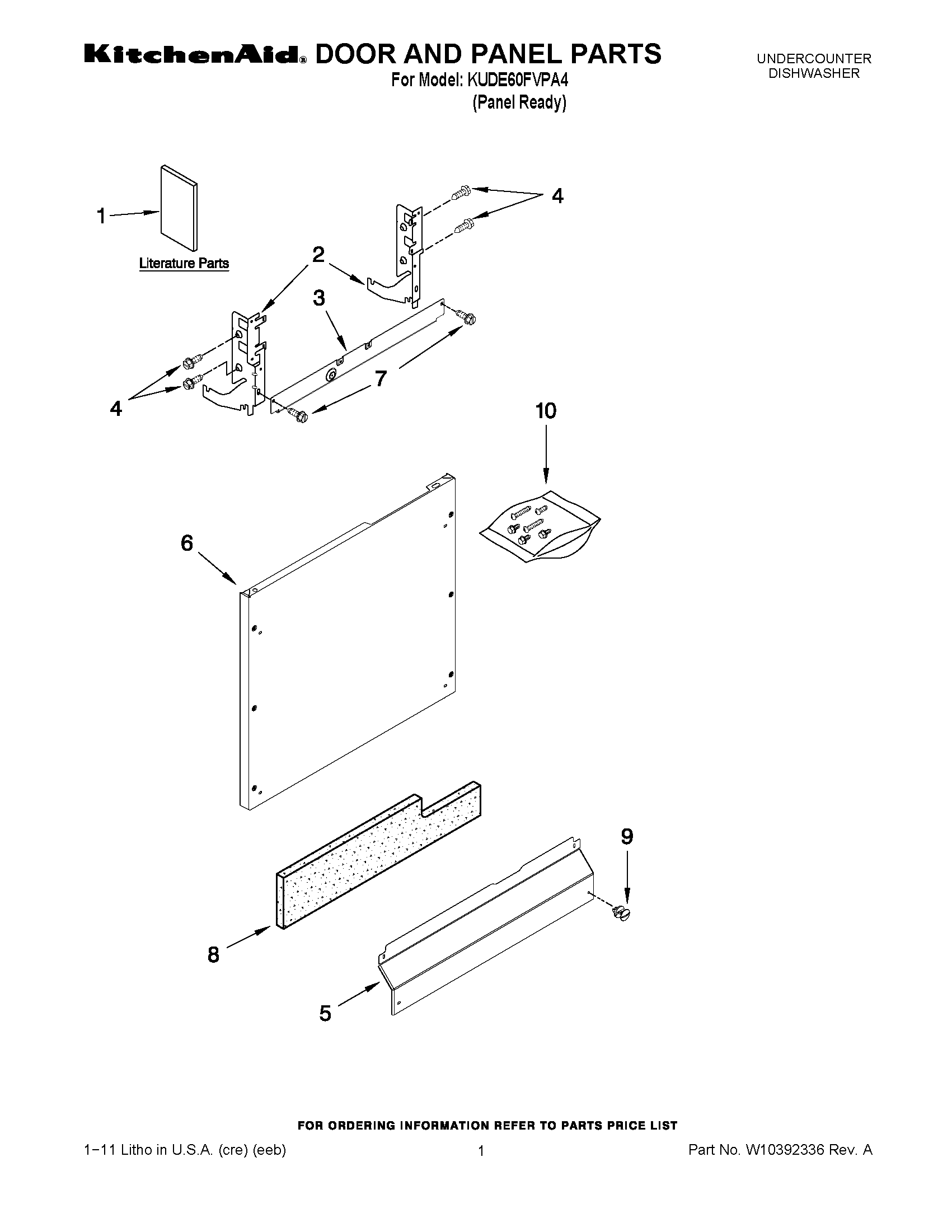

KUDE60FVPA4 01 – DOOR AND PANEL PARTS

KUDE60FVPA4 01 – DOOR AND PANEL PARTS

Written by

in

KUDE60FVPA4 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1GUIDE, USE & CARE SPANISH
1GUIDE, USE & CARE ENGLISH/FRENCH
1TECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
1INSTRUCTIONS, INSTALLATION
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4WP3400071 Whirlpool Screw
5W10827631 Whirlpool Toe Panel
6W11113792 Whirlpool Dishwasher Panel
7WP489069 Whirlpool Compactor Screw
8SHIELD
9WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
10Screws, Bag Door Assembly
