KUDE60FVWH1 02 – CONTROL PANEL PARTS
Written by
in

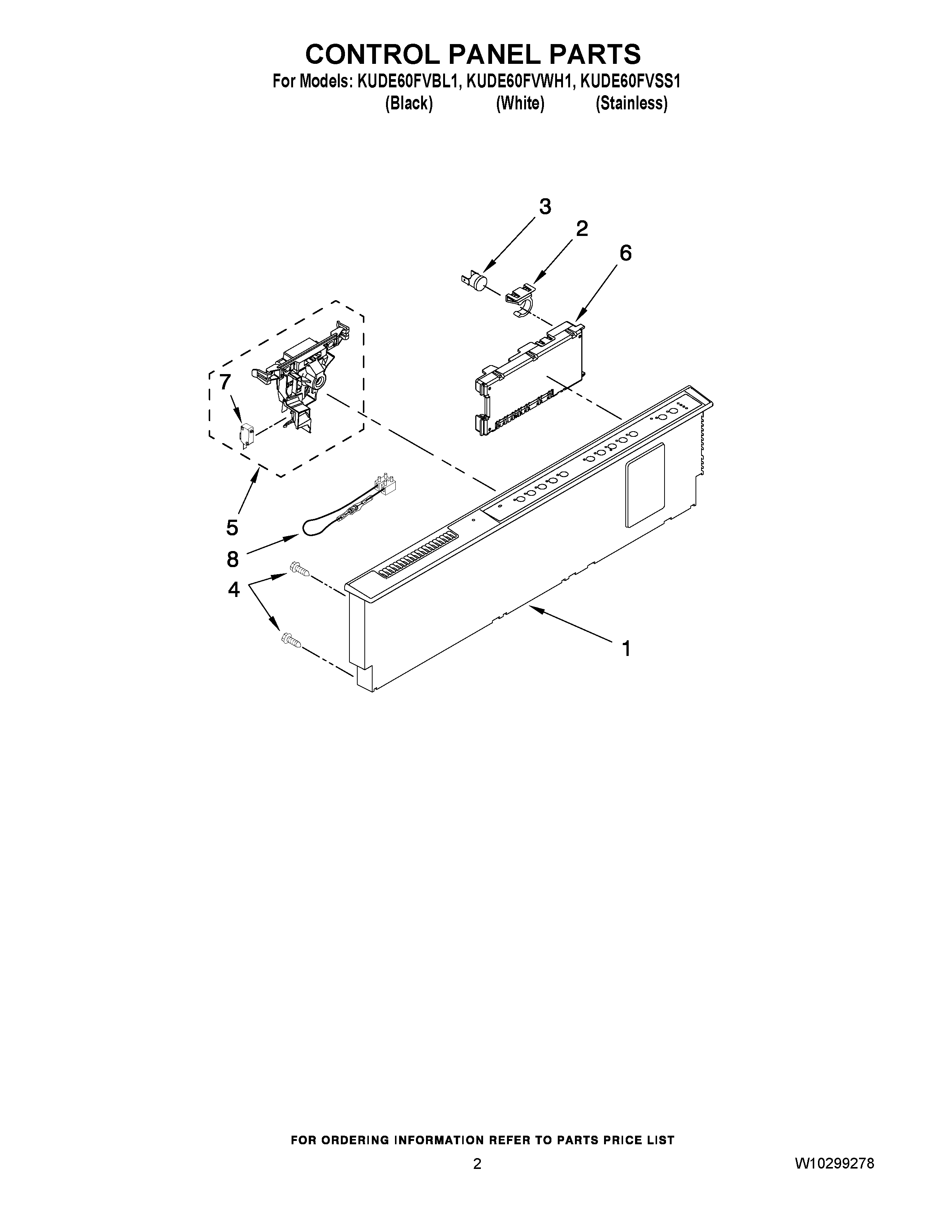

KUDE60FVWH1 02 – CONTROL PANEL PARTS
Products
Position
Product
1
CONSOLE ASSEMBLY (INCLUDES INSERT) (MIDNIGHT GREY)
1
Console Assembly (Includes Insert) (White)
1
Console Assembly (Includes Insert) (Black)
2
Clip, BI-Metal
3
W10258275 Whirlpool Dishwasher Bimetal Fuse
4
WPW10348409 Whirlpool Screw
5
WPW10404412 Whirlpool Door Latch
6
WPW10285178-includeCORE Whirlpool WPW10285178 Dishwasher Electronic Control Board
7
WPW10134019 Whirlpool Dishwasher Switch
8
WPW10083167 Whirlpool Dishwasher Wire Harness
←
