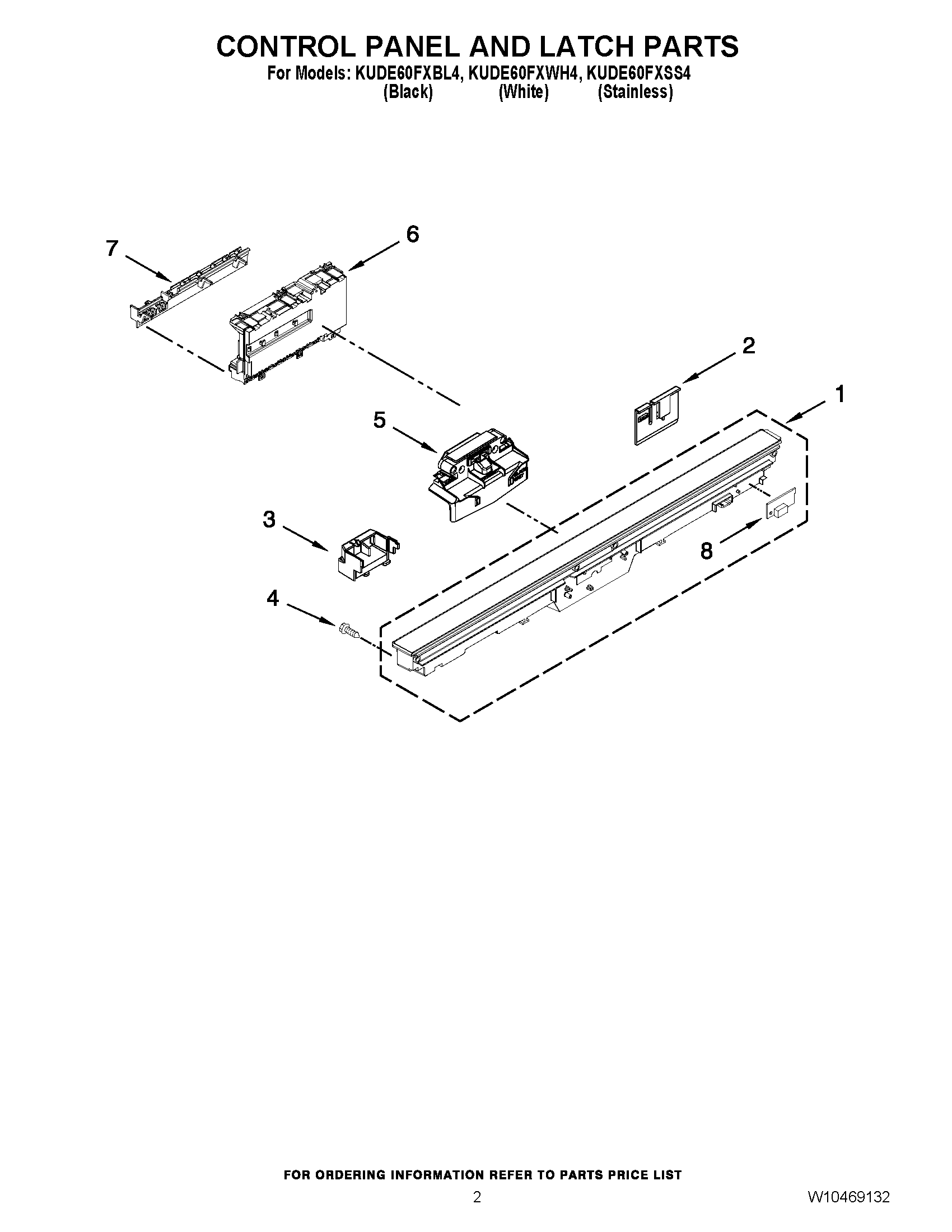

KUDE60FXBL4 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	WPW10481114 Whirlpool Dishwasher Control Panel
1	WPW10481113 Whirlpool Dishwasher Control Panel
1	WPW10481112 Whirlpool Dishwasher Control Panel
2	W11256107 Whirlpool Dishwasher Clip
3	W10783730 Whirlpool Dishwasher Connector
4	WPW10348409 Whirlpool Screw
5	W10619006 Whirlpool Door Latch
6	W10473197 Whirlpool Dishwasher Electronic Control Board
7	WPW10194937 Whirlpool Dishwasher Control Bracket
8	WPW10195836 Whirlpool Dishwasher Indicator Light
