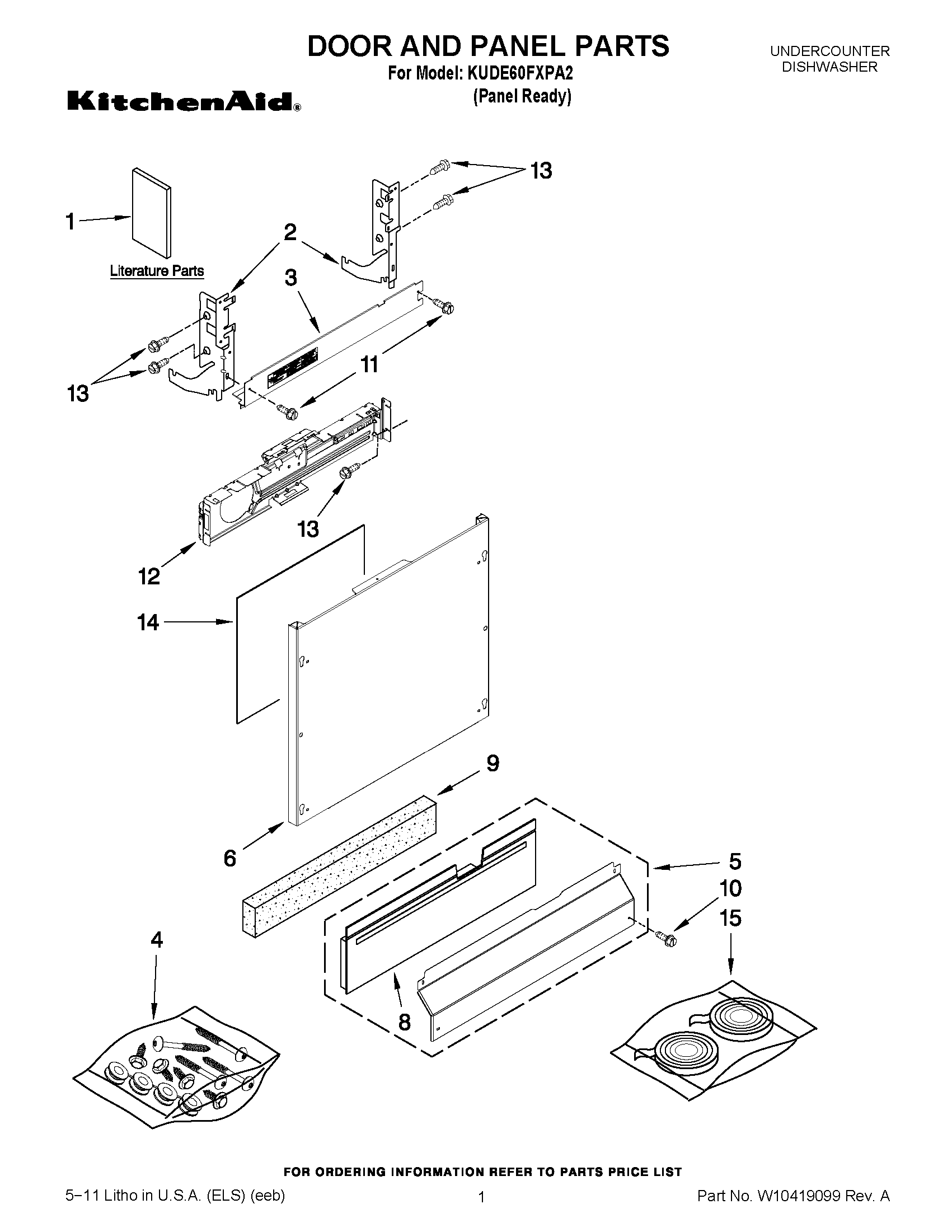

KUDE60FXPA2 01 – DOOR AND PANEL PARTS

KUDE60FXPA2 01 – DOOR AND PANEL PARTS

Written by

in

KUDE60FXPA2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1TECH SHEET/ENGLISH
1TECH SHEET/FRENCH
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE (SPANISH)
1ENERGY GUIDE
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10637074 Whirlpool Dishwasher Miscellaneous Parts
5WPW10526114 Whirlpool Dishwasher Access Panel
6W11113792 Whirlpool Dishwasher Panel
8SHIELD
10WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
11WP489069 Whirlpool Compactor Screw
12W11116870 Whirlpool Dishwasher Control Bracket
13WP3400071 Whirlpool Screw
14W10234565 Whirlpool Dishwasher Insulation Pad
15SEAL, PANEL READY
