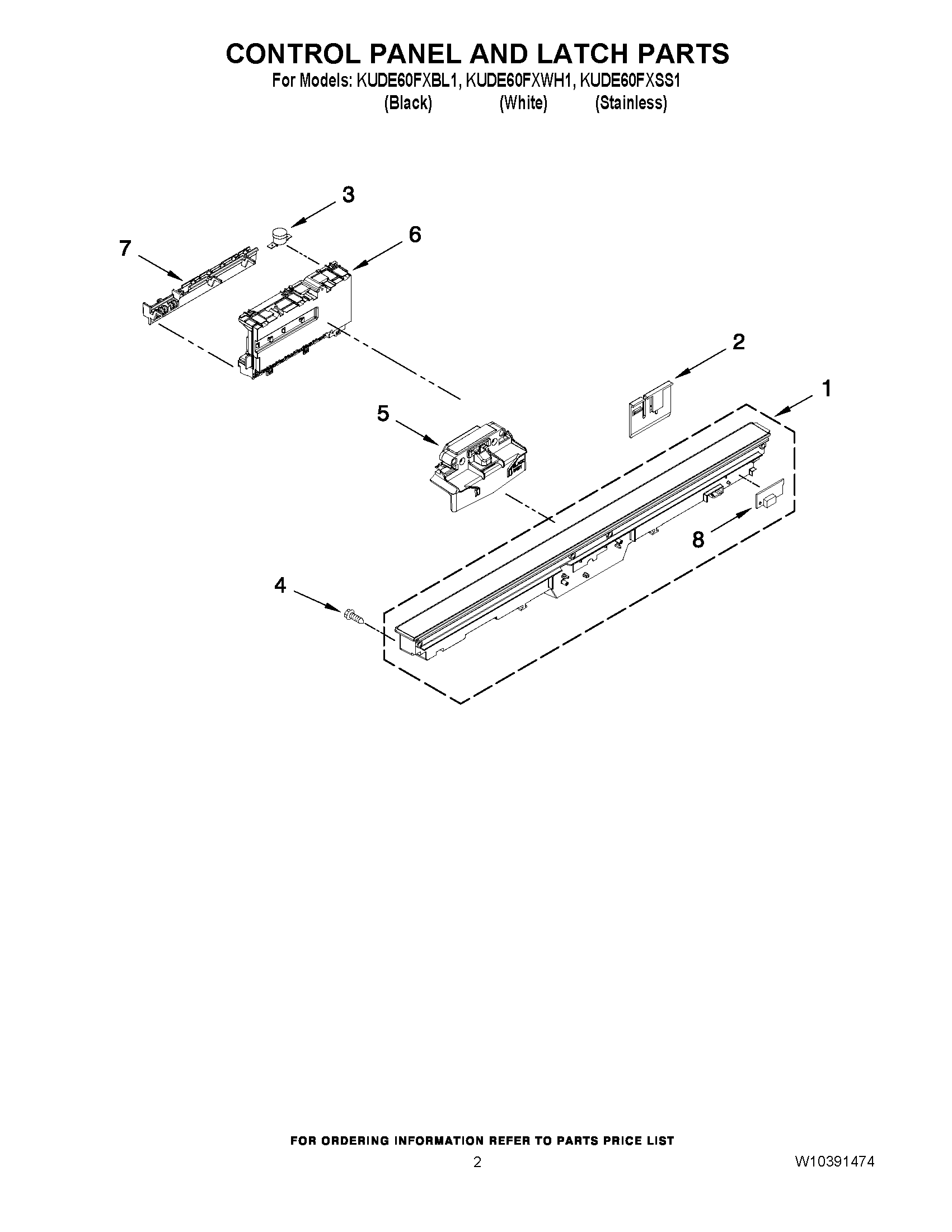

KUDE60FXWH1 02 – CONTROL PANEL AND LATCH PARTS

KUDE60FXWH1 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDE60FXWH1 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10481114 Whirlpool Dishwasher Control Panel
1WPW10481113 Whirlpool Dishwasher Control Panel
1WPW10481112 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10402110 Whirlpool Dishwasher Bi-Metal Thermal Cut-Off Fuse
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6WPW10352582 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8WPW10195836 Whirlpool Dishwasher Indicator Light
