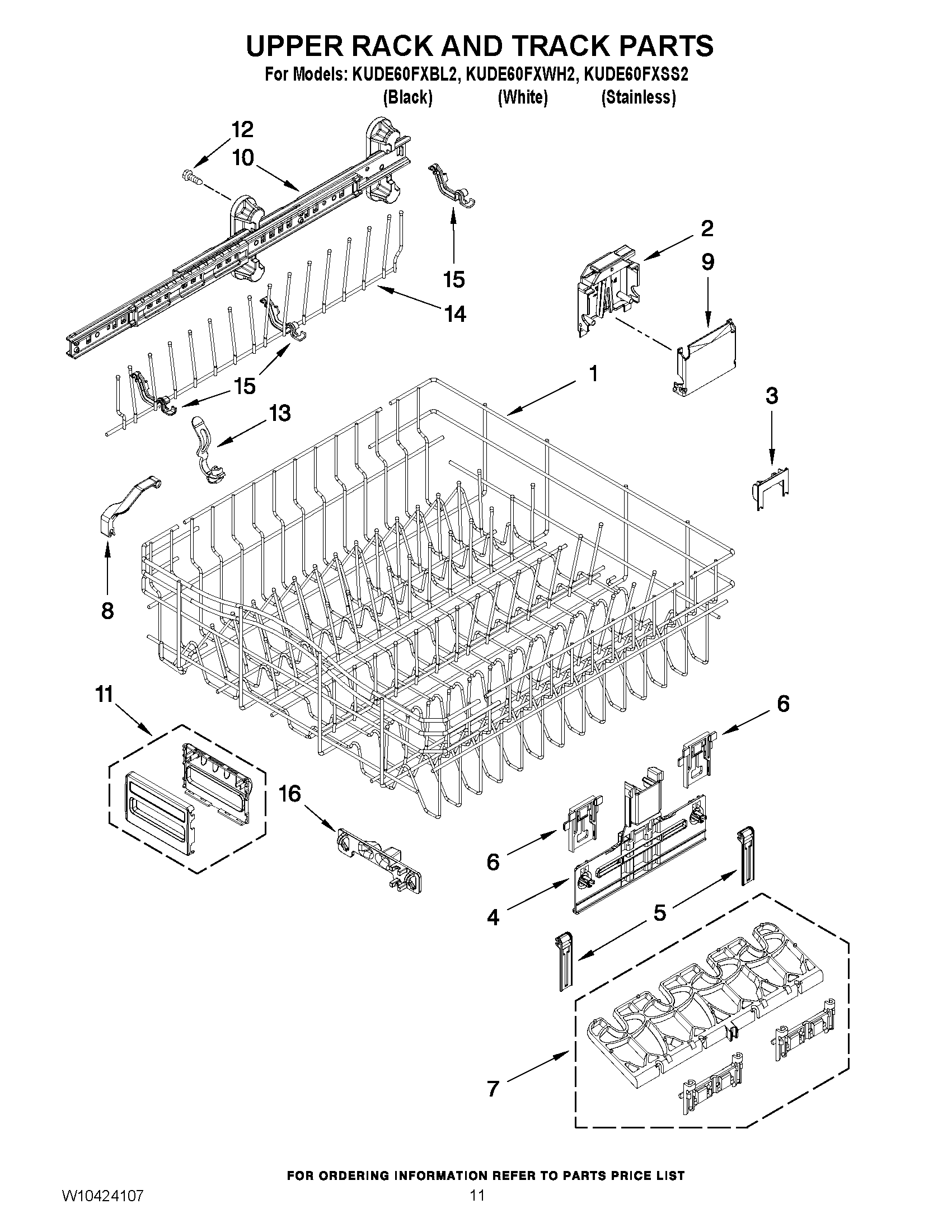

KUDE60FXWH2 09 – UPPER RACK AND TRACK PARTS

KUDE60FXWH2 09 – UPPER RACK AND TRACK PARTS

Written by

in

KUDE60FXWH2 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10728863 Whirlpool Upper Dishrack Assembly
2WPW10588165 Whirlpool Adjuster Housing
2WPW10588164 Whirlpool Left Hand Housing Rack Adjuster
3WPW10250160 Whirlpool Clip
4WPW10546503 Whirlpool Dishwasher Upper Rack Adjuster
5WPW10195839 Whirlpool Dishwasher Rack Adjuster
6WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
7WPW10082649 Whirlpool Dishwasher Cup Shelf
8WPW10267076 Whirlpool Guard Clip
9COVER
10W11259786 Whirlpool Dishwasher Upper Dishrack Slide Track Right Side
10W11259785 Whirlpool Dishwasher Upper Dishrack Slide Track Left Side
11W11110542 Whirlpool Dishwasher Handle
12WPW10309090 Whirlpool Dishwasher Screw
13WPW10077844 Whirlpool Dishwasher Clip
14W10727426 Whirlpool Dishwasher Rack Tine
15WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
16WP8539102 Whirlpool Dishwasher Positioner
