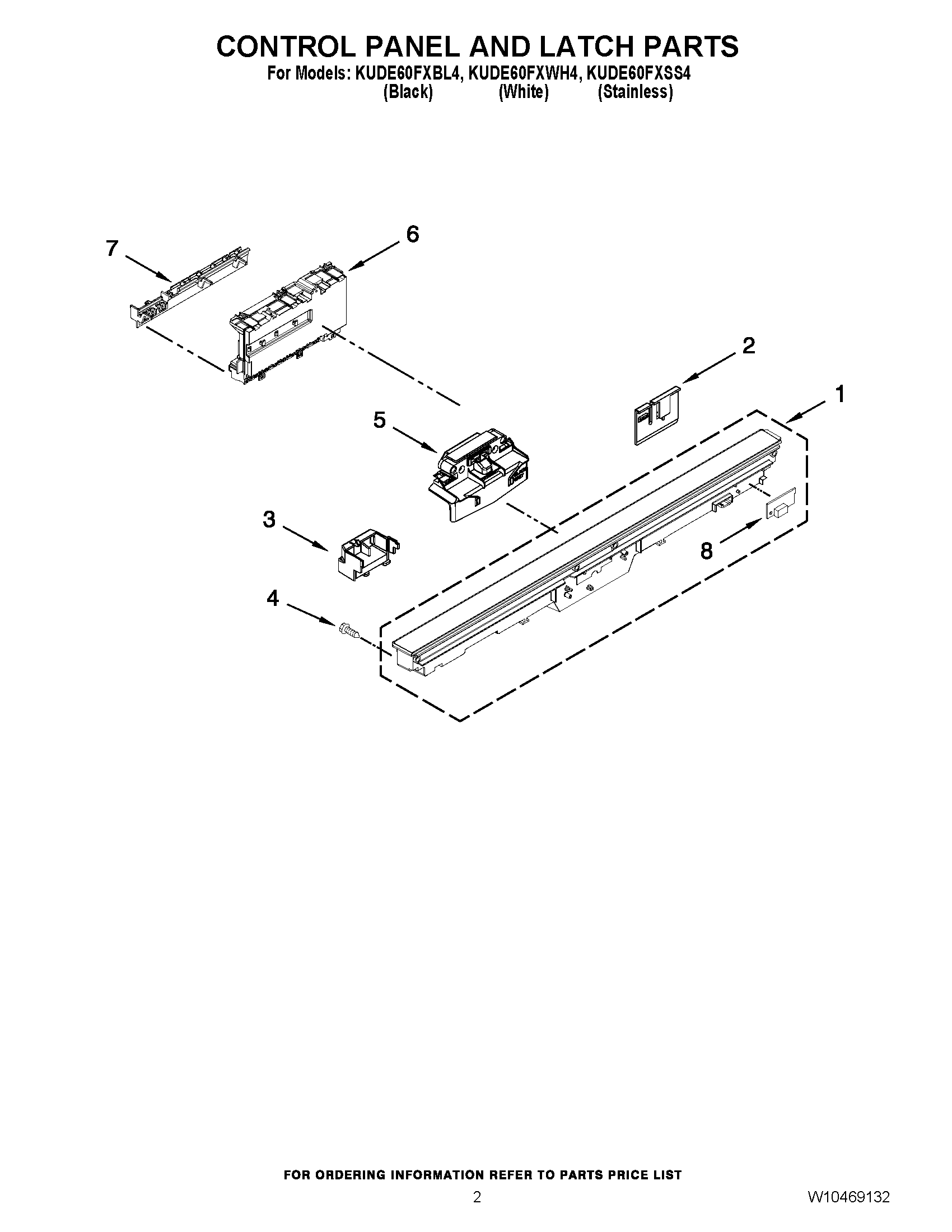

KUDE60FXWH4 02 – CONTROL PANEL AND LATCH PARTS

KUDE60FXWH4 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDE60FXWH4 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10481114 Whirlpool Dishwasher Control Panel
1WPW10481113 Whirlpool Dishwasher Control Panel
1WPW10481112 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10783730 Whirlpool Dishwasher Connector
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6W10473197 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8WPW10195836 Whirlpool Dishwasher Indicator Light
