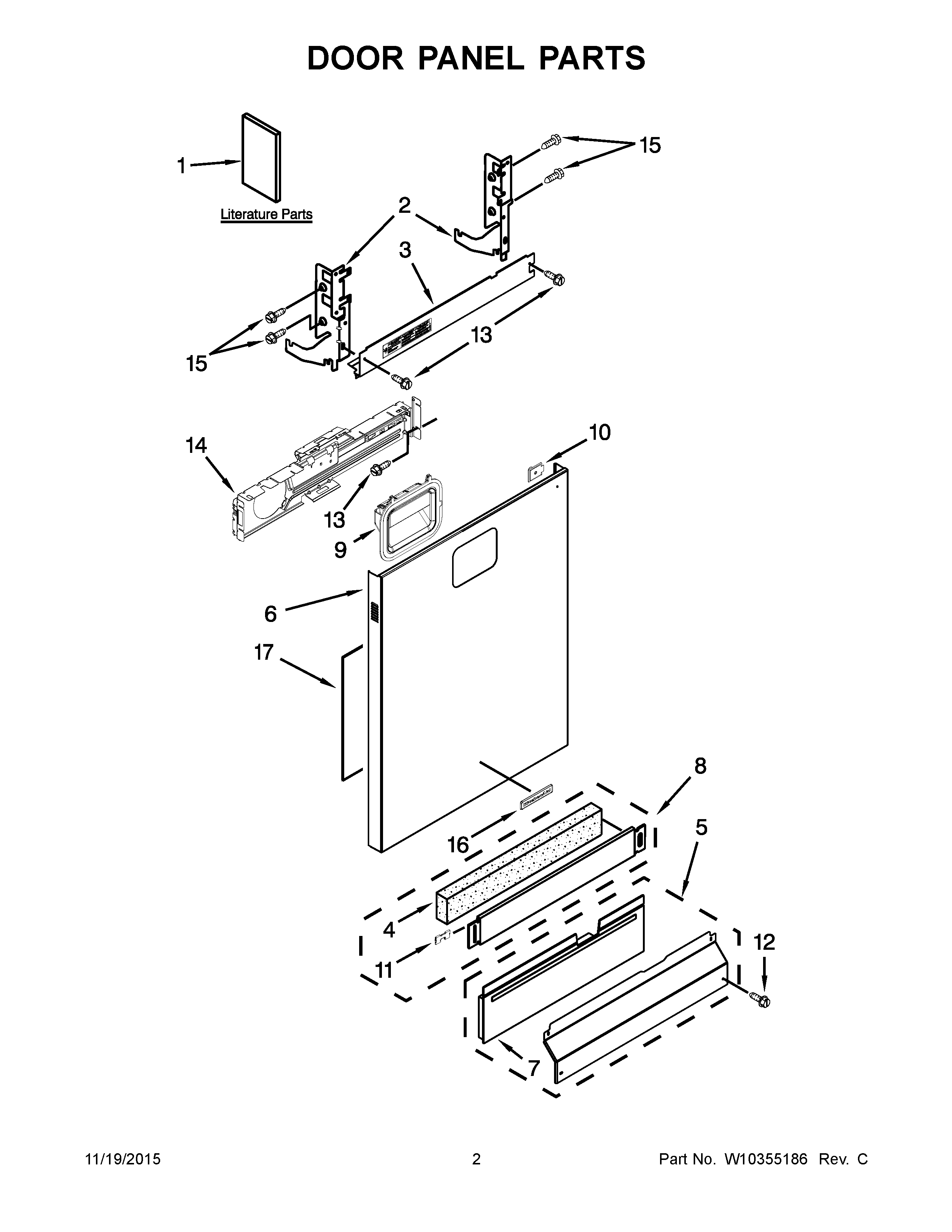

KUDE60HXSS0 02 – DOOR PANEL PARTS

KUDE60HXSS0 02 – DOOR PANEL PARTS

Written by

in

KUDE60HXSS0 02 – DOOR PANEL PARTS

Products

PositionProduct
1DTECH SHEET/ENGLISH
1CGUIDE, USE & CARE (SPANISH)
1INSTRUCTIONS, INSTALLATION
1AENERGY GUIDE
1ETECH SHEET/FRENCH
1BGUIDE, USE & CARE (SPANISH)
2AW11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4SHIELD
6WPW10195724 Whirlpool Dishwasher Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
9HANDLE ASSEMBLY (CHROME)
10W10319007 Whirlpool Dishwasher Indicator Light
11WP8269016 Whirlpool Clip Assembly
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14W11116870 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16WPW10243391 Whirlpool Refrigerator Nameplate
17W11126003 Whirlpool Dishwasher Insulation Pad
