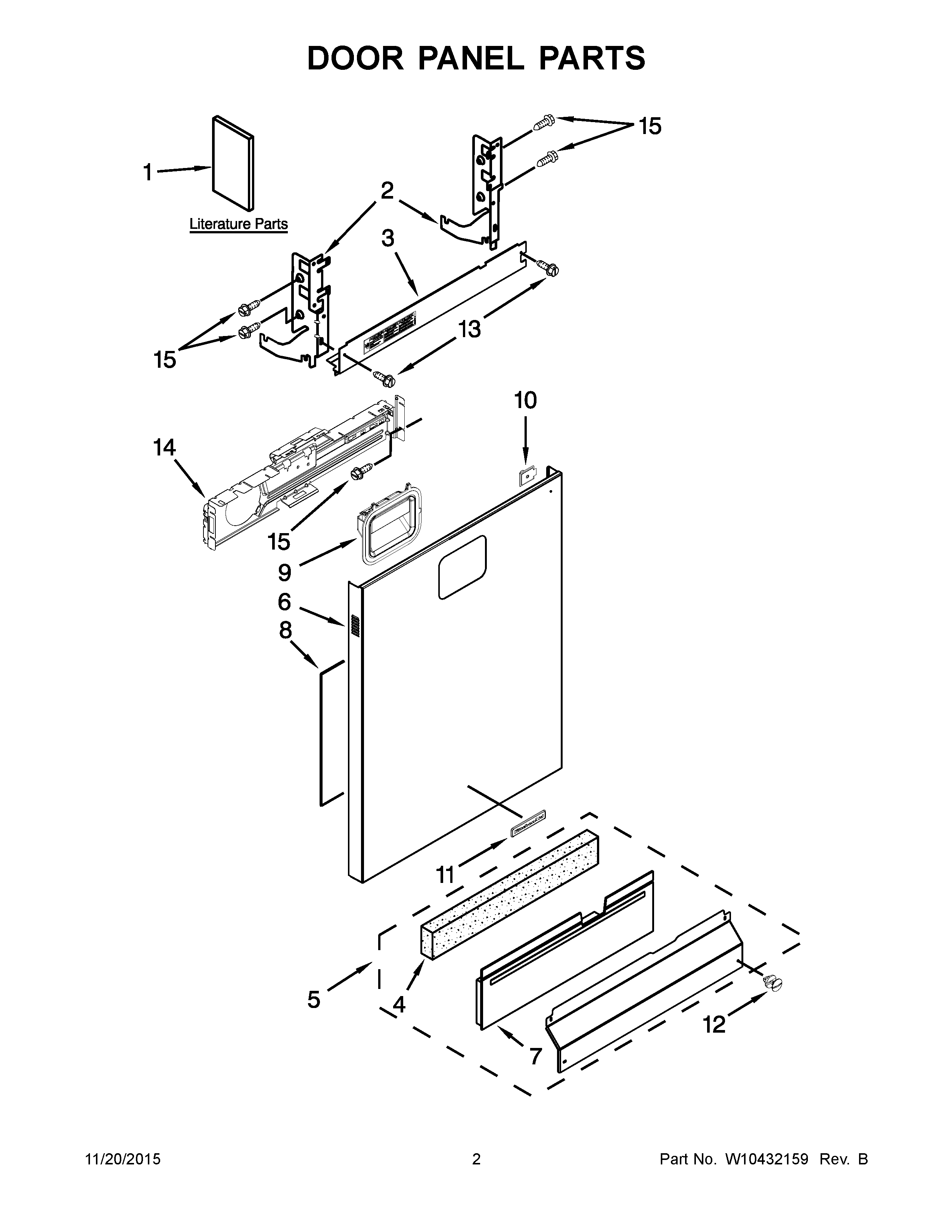

KUDE60HXSS3 02 – DOOR PANEL PARTS

KUDE60HXSS3 02 – DOOR PANEL PARTS

Written by

in

KUDE60HXSS3 02 – DOOR PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1DTECH SHEET/ENGLISH
1ETECH SHEET/FRENCH
1CGUIDE, USE & CARE (SPANISH)
1BGUIDE, USE & CARE (SPANISH)
1AENERGY GUIDE
2AW11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
5WPW10526114 Whirlpool Dishwasher Access Panel
6WPW10195724 Whirlpool Dishwasher Panel
7SHIELD
8W11126003 Whirlpool Dishwasher Insulation Pad
9HANDLE ASSEMBLY (CHROME)
10W10319007 Whirlpool Dishwasher Indicator Light
11WPW10243391 Whirlpool Refrigerator Nameplate
12WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
13WP489069 Whirlpool Compactor Screw
14W11116870 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
