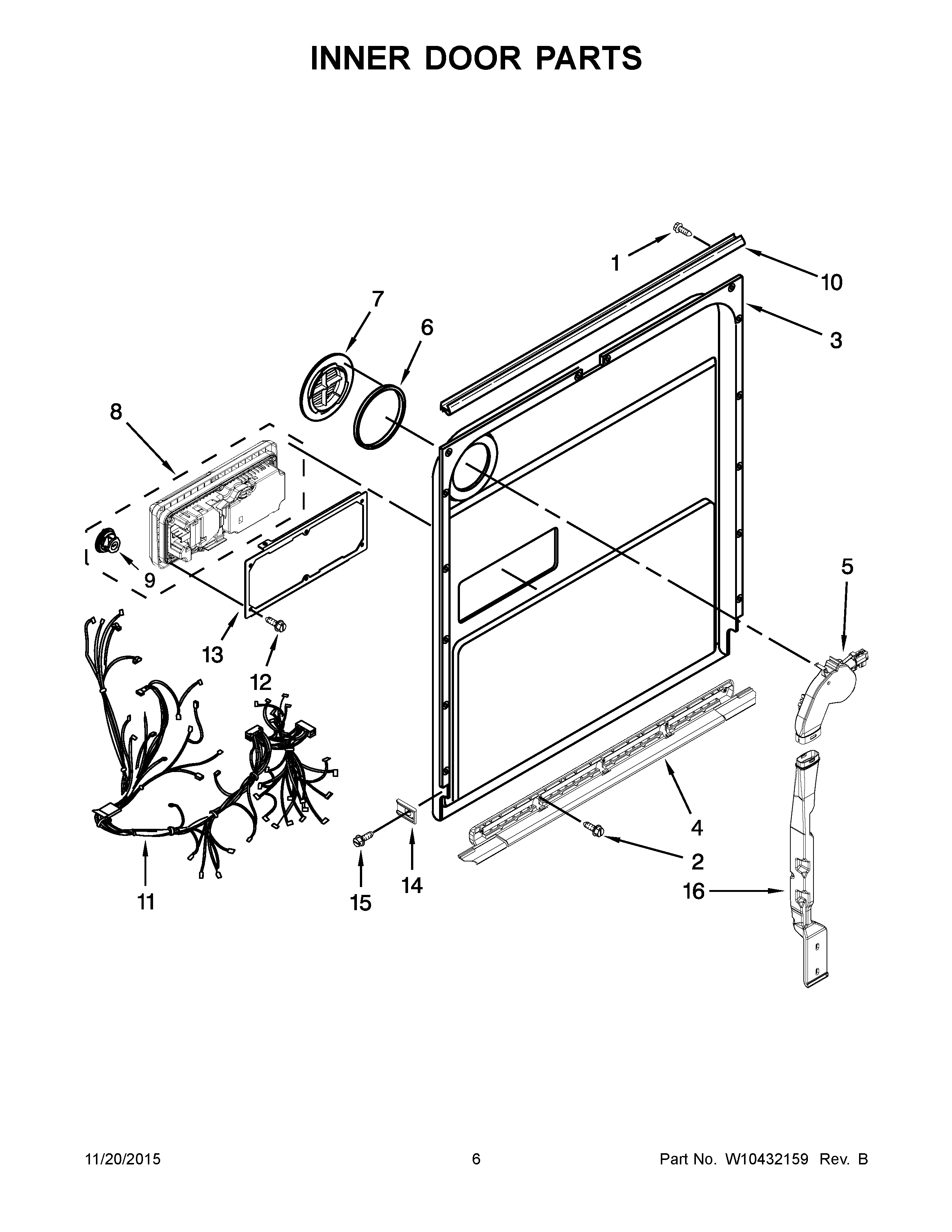

KUDE60HXSS3 04 – INNER DOOR PARTS

KUDE60HXSS3 04 – INNER DOOR PARTS

Written by

in

KUDE60HXSS3 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3W10467368 Whirlpool Dishwasher Door Assembly
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5WPW10469574 Whirlpool Dishwasher Vent
6WP8269259 Whirlpool Air Vent Gasket
7WPW10195032 Whirlpool Dishwasher Deflector
8DISPENSER (DISHWASHER)
9WPW10524920 Whirlpool Dishwasher Rinse Aid Dispenser Cap
10WPW10195007 Whirlpool Dishwasher Seal
11WIRING HARNESS
12WPW10177098 Whirlpool Dishwasher Screw
13WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
14W10195837 Whirlpool Dishwasher Barrier
15WP3400071 Whirlpool Screw
16WPW10195028 Whirlpool Dishwasher Vent
