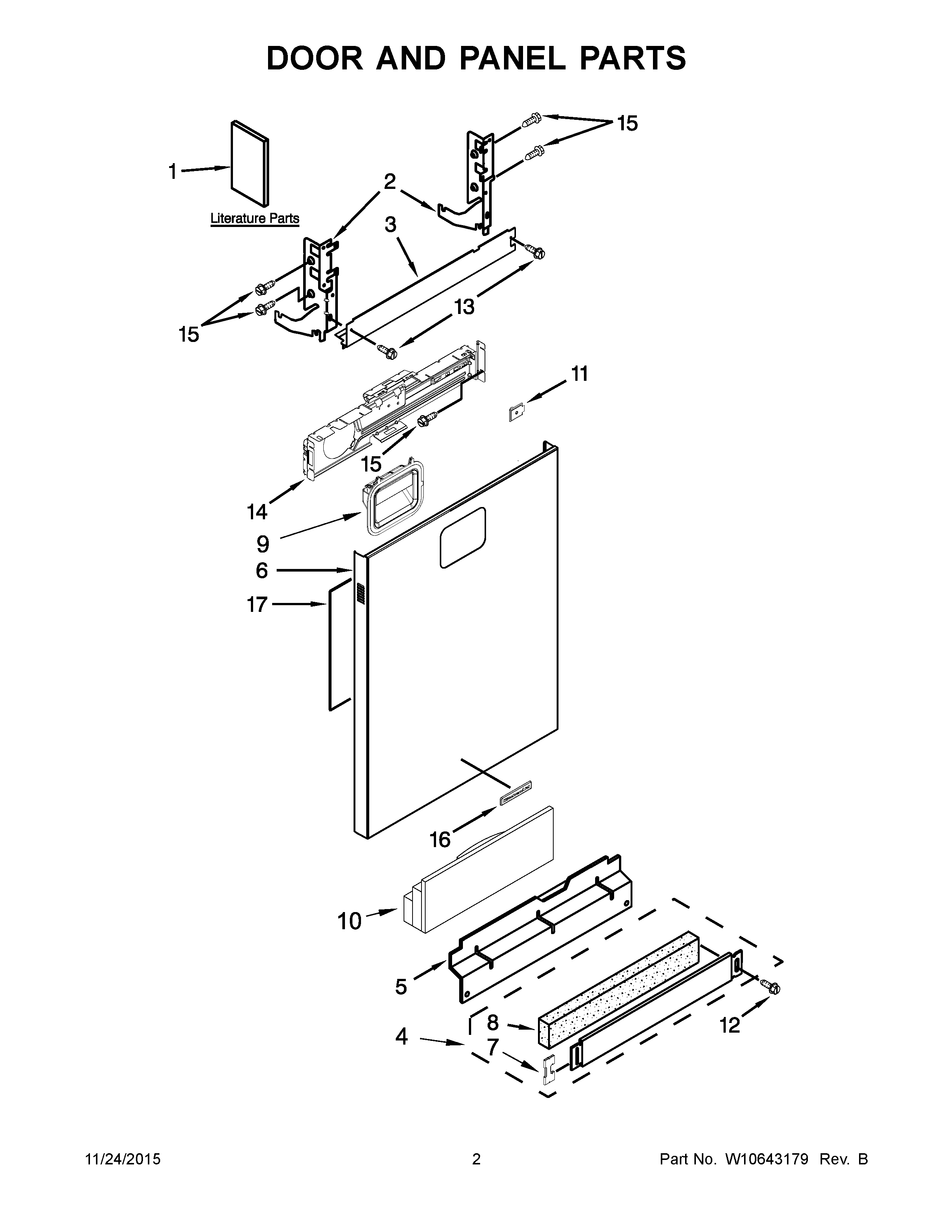

KUDE60HXSS6 02 – DOOR AND PANEL PARTS

KUDE60HXSS6 02 – DOOR AND PANEL PARTS

Written by

in

KUDE60HXSS6 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1CTECH SHEET, ENGLISH
1DTECH SHEET, FRENCH
1BUSE & CARE GUIDE
1AENERGY GUIDE
2AW11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
5W10909064 Whirlpool Dishwasher Black Access Panel
6WPW10195724 Whirlpool Dishwasher Panel
7WP8269016 Whirlpool Clip Assembly
8SHIELD
9HANDLE ASSEMBLY (CHROME)
11W10319007 Whirlpool Dishwasher Indicator Light
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14W11116870 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16WPW10243391 Whirlpool Refrigerator Nameplate
17WPW10073520 Whirlpool Dishwasher Insulation Pad
