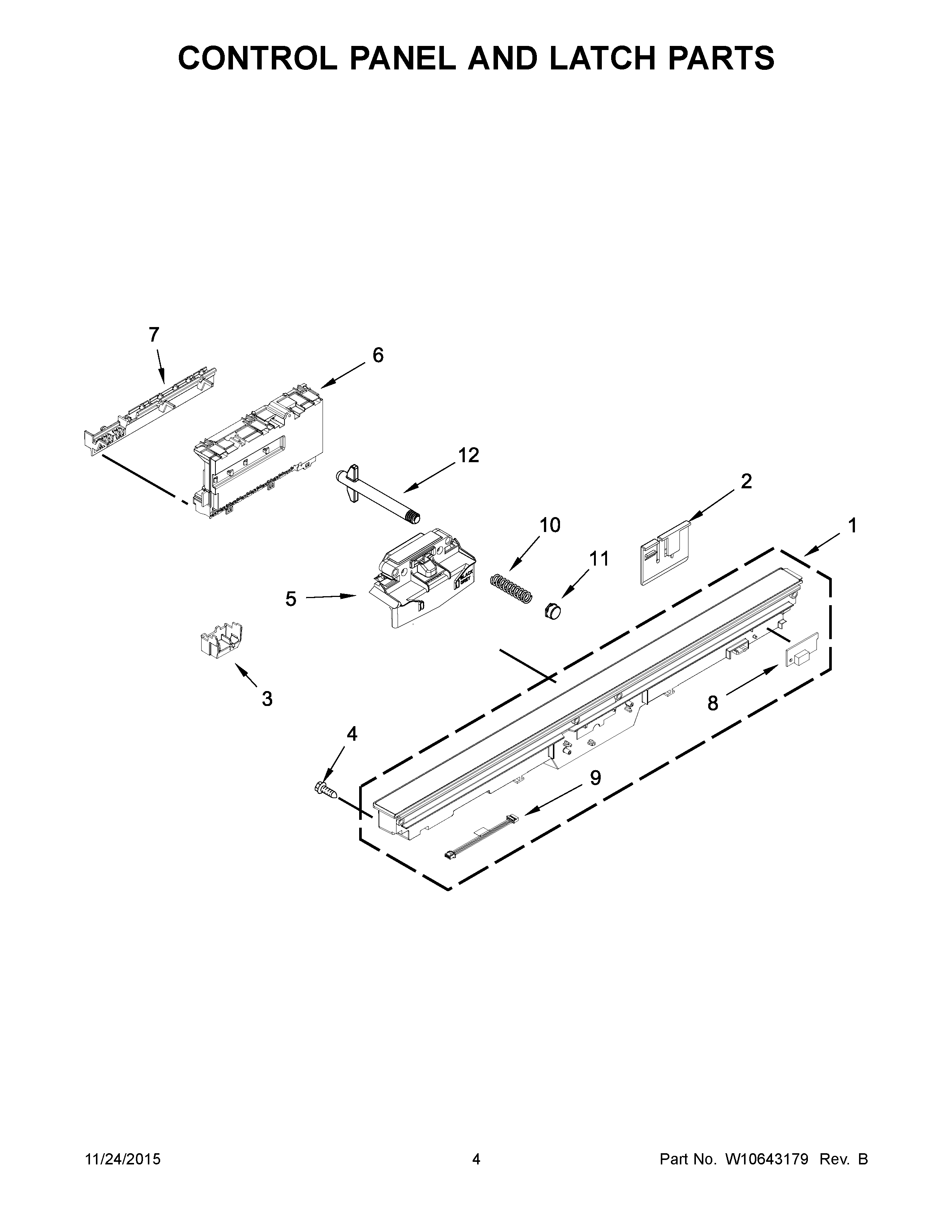

KUDE60HXSS6 03 – CONTROL PANEL AND LATCH PARTS

KUDE60HXSS6 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDE60HXSS6 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10481115 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3WPW10462393 Whirlpool Dishwasher Connector
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
6W10866118 Whirlpool Dishwasher Electronic Control Board
7WPW10462395 Whirlpool Dishwasher Brace
8WPW10195836 Whirlpool Dishwasher Indicator Light
9W10528492 Whirlpool Dishwasher Wire
10W10195518 Whirlpool Dishwasher Spring
11W10195519 Whirlpool Dishwasher Cap
12PLUNGER, LATCH
